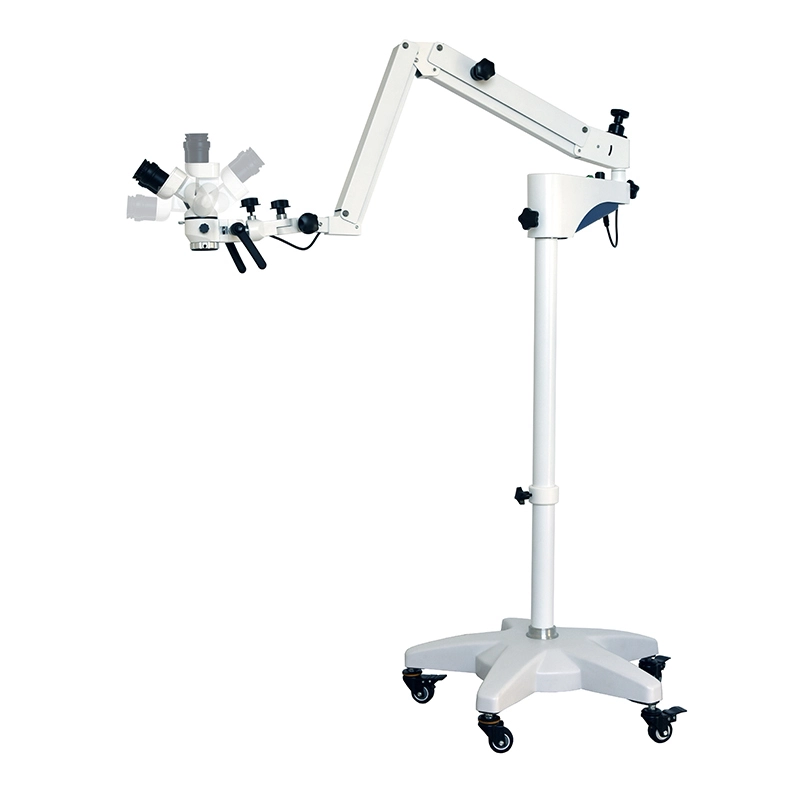

Microscope Stands Adjustable For Dental and Ophthalmic Operating - HONYU
Features
• 3-step magnification adjustment: 0.6x, 1.0x, 1.6x
• Two objectives with different focusing distance
• High brightness 10W LED illumination
• Total Magnification: 3x-16x (with Optional objective)
Specification
|
Magnification of binocular |
8X |
|
Binocular |
0-180° inclinable |
|
Magnification of eyepiece |
12.5X |
|
Interpupillary distance |
50mm-80mm |
|
Diopter adjustable |
±7D |
|
Focal length of objective |
F=200mm and F=250mm two objectives |
|
Magnification changer |
3-step, 0.6X, 1X, 1.6X |
|
Total magnification |
4.8X, 8X, 12.8X, 6X, 10X, 16X |
|
Linear field |
50mm, 30mm, 19mm, 40mm, 24mm, 15mm |
|
Fine focusing distance |
10mm |
|
Illumination |
Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination>40000lx |
|
Filter |
Build-in green and yellow filters |
|
Balancing arm |
2-part arm with universal joints, counterweight adjustable and can be locked |
|
Floor stand |
2-part column fitted on the five-star base with casters |
|
Power supply |
AC100V-AC240V |
Optical Parameter
|
Magnification of eyepiece |
12.5X/20mm |
|||||||||||
|
Focal length of objective |
F=200mm |
F=250mm |
F=300mm(optional) |
F=400mm(optional) |
||||||||
|
Magnification on handwheel |
1.6X |
1X |
0.6X |
1.6X |
1X |
0.6X |
1.6X |
1X |
0.6X |
1.6X |
1X |
0.6X |
|
Total magnification |
16X |
10X |
6X |
12.8X |
8X |
4.8X |
10.7X |
6.7X |
4X |
8X |
5X |
3X |
|
Linear field (mm) |
15 |
24 |
40 |
19 |
30 |
50 |
23 |
37 |
60 |
30 |
48 |
80 |
|
Diameter of spot (mm) |
57 |
71 |
86 |
113 |
||||||||
|
Exit pupil distance (mm) |
20 |
|||||||||||
Optional accessories
|
Objectives |
F=200mm, F=300mm, F=200-300mm zooming objective |
|
Other accessory |
Beamsplitter, CCD adapter, DLSR camera adapter, wall-mount, table clamp |
