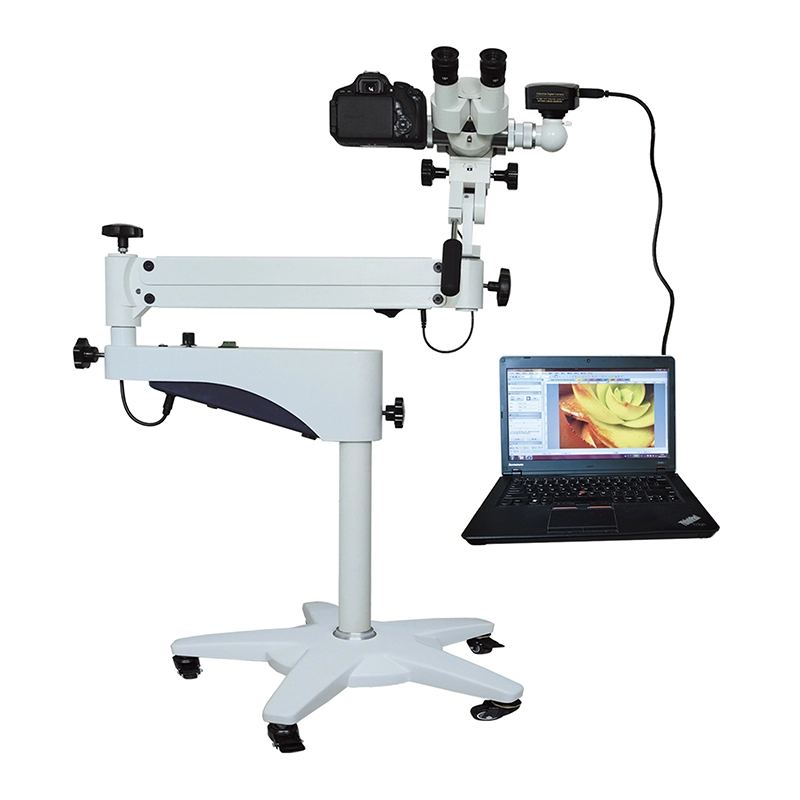

Gynecological Examination Colposcopy Machine - HONYU
Features
• Five magnification levels: 2.7X, 4.4X, 6.6X, 10X, 16.6X
• Equipped with long working distance objective
• Brightness adjustable LED coaxial illumination
• Movable base bringing flexible examination
Specification
|
Observation angle |
45º tilted binocular observation unit |
|
Eyepiece |
16X |
|
Interpupillary distance |
50mm-80mm |
|
Diopter |
±5D |
|
Focal length of objective |
F=300mm(M58x0.75) |
|
Magnification changer |
5-step magnification change: 0.4X, 0.66X, 1X, 1.5X, 2.5X |
|
Total magnification |
2.7X, 4.4X, 6.6X, 10X, 16.6X |
|
Linear field |
90mm, 55mm, 37mm, 24mm, 15mm |
|
Beamsplitter |
50:50:00 |
|
CCD adapter |
For C-mount 1/3" cameras |
|
Fine focusing distance |
20mm |
|
Balance arm |
Counterweight adjustable |
|
Illumination system |
Coaxial illumination，brightness adjustable |
|
10W LED lamp |
|
|
Brightness |
>30000lux |
|
Filter |
Built-in Green and Blue |
|
Stand |
Short column fixed on the five-star base |
|
Optional accessories |
Demonstrator(assistant microscope), Camera (HDMI camera, VGA camera, USB camera), Photo adapter, LCD screen, Objective (F=230mm & F=280mm) |
Optical Parameter
|
Focal length of objective |
F=300mm |
F=230mm(optional) |
F=280mm(optional) |
|||||||||||||
|
Magnification on handwheel |
2.5x |
1.5x |
1x |
0.66x |
0.4x |
2.5x |
1.5x |
1x |
0.66x |
0.4x |
2.5x |
1.5x |
1x |
0.66x |
0.4x |
|
|
Total magnification |
16.6x |
10x |
6.6x |
4.4x |
2.7x |
21.7x |
13.2x |
8.7x |
5.7x |
3.5x |
17.8x |
10.8x |
7.1x |
4.7x |
2.9x |
|
|
Linear field (mm) |
15 |
24 |
37 |
55 |
90 |
11 |
18 |
28 |
42 |
62 |
14 |
22 |
35 |
54 |
84 |
|
|
Resolution (LP/mm) |
78 |
61 |
40 |
30 |
21 |
86 |
68 |
52 |
35 |
27 |
80 |
63 |
42 |
31 |
22 |
|
