Comprehensive Microscope Solution Supplier for Biological and Industrial Inspection.

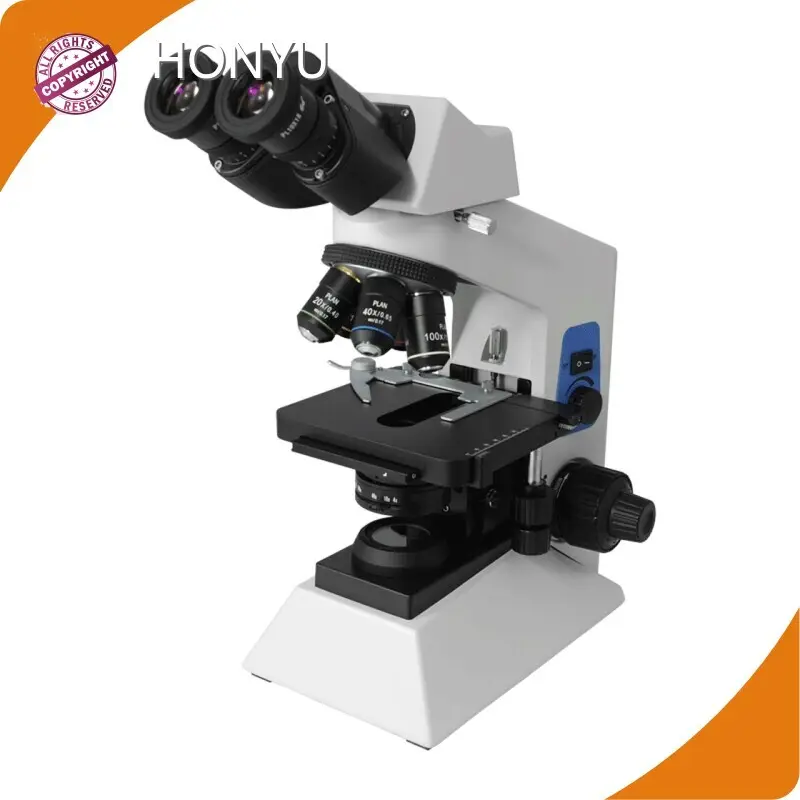

Wholesale Biological Compound Microscope Biological Compound Microscope Company
Company Advantages
· HONYU biological compound microscope is designed by the experienced staff who has many years of experiences in designing.
· The product has the functionality that meets the application needs.
· It is the great customer service that HONYU has won many praises from customers.
Features
• Four Wide-field magnification settings: 40X, 100X, 400X, 1000X
• High contrast optics offers high resolution observations
• Equipped with N.A. 1.25 Abbe Condenser
• CE Approved and Manufactured Under ISO 9001 Quality Control Standard
Specification
|
Optical system |
Color corrected infinity optical system |
|
Head |
Compensation free binocular head, 30° inclined |
|
Eyepiece |
High Eye-point wide field PL10X/18mm |
|
Objective |
High contrast achromatic objective 4X |
|
High contrast achromatic objective 10X |
|
|
High contrast achromatic objective 40X (spring) |
|
|
High contrast achromatic objective 100X(spring) |
|
|
Nosepiece |
Reversed quadruple nosepiece |
|
Condenser |
Abbe.N.A1.25 Condenser |
|
Illumination |
90V~240V power input, Illumination by 6V 20W halogen bulb, brightness adjustable |
|
Stage |
Mechanical stage with damping clip,150x140mm in size, traveling range: 76x50mm |
|
Focusing |
Low position coaxial coarse and fine focus system with tension adjustment, with up-limited. Coarse focus range: 28mm, division of fine focus: 0.002mm |
|
Filter |
Blue filter Φ 45mm |
Optional Accessories
|
Head |
Seidentopf trinocular, 30° inclined |
|
Seidentopf binocular, 30° inclined(infinity) |
|
|
Seidentopf trinocular, 30° inclined(infinity) |
|
|
Eyepiece |
High-eyepoint WF10X/18mm |
|
High-eyepoint WF10X/18mm with micrometer |
|
|
High-eyepoint WF10X/18mm with cross hair |
|
|
High-eyepoint WF15x/14mm |
|
|
High-eyepoint WF16x/13mm |
|
|
High-eyepoint large field PL10X/20mm |
|
|
Objective |
Plan achromatic objective 4X, 10X, 40X, 100X |
|
Infinity plan achromatic objective 4X, 10X,20X, 40X(spring), 100X(spring) |
|
|
Stage |
140X132mm double layer mechanical stage with damping clip, traveling range:76 x 50mm |
|
Nosepiece |
Reversed quadruple nosepiece |
|
Filter |
Green, Yellow, Neutral |
|
Dark Field Condenser |
Dark Field Condenser(Dry) N.A.0.9 |
|
Dark Field Condenser(Immersion）N.A.1.25 |
|
|
TV Adapter |
0.5X |
|
0.35X |
|
|
Photo Attachment |
135 photo adapter (PK adapter of MD adapter) |
|
3.2X photo eyepiece |
|
|
Digital Photo Attachment |
C-mount |
|
Photo eyepiece |
|
|
Condenser |
Kohler condenser system |
|
Illumination |
High brightness LED light |
products display
Company Features
· Ningbo Haishu HONYU Opto-Electro Co., Ltd has developed into a integrated group company which gathering together science and technology, industry and trade of biological compound microscope.
· Located in the economic center of China, our factory is very close to the major ports and some highways. The convenient transportation enables us to deliver goods very quickly. We have achieved more efficient production and stricter quality management in the workshop. We require all the incoming materials, as well as components and parts, to be assessed and tested to ensure quality is up to standards. Our marketing network is extensive and broad scope in the world, delivering products and services through a network of independent dealers. This network has helped increased sales volume significantly.
· Ningbo Haishu HONYU Opto-Electro Co., Ltd is committed to becoming the most reliable biological compound microscope supplier. Please contact us!
Application of the Product
HONYU's biological compound microscope can be used in a variety of industries.
HONYU insists on providing customers with reasonable solutions according to their actual needs.
Product Comparison
HONYU's biological compound microscope has better performances, as shown below.
HONYU is a professional optical supplier in China with more than 20 years’ experience in Microscopes.
