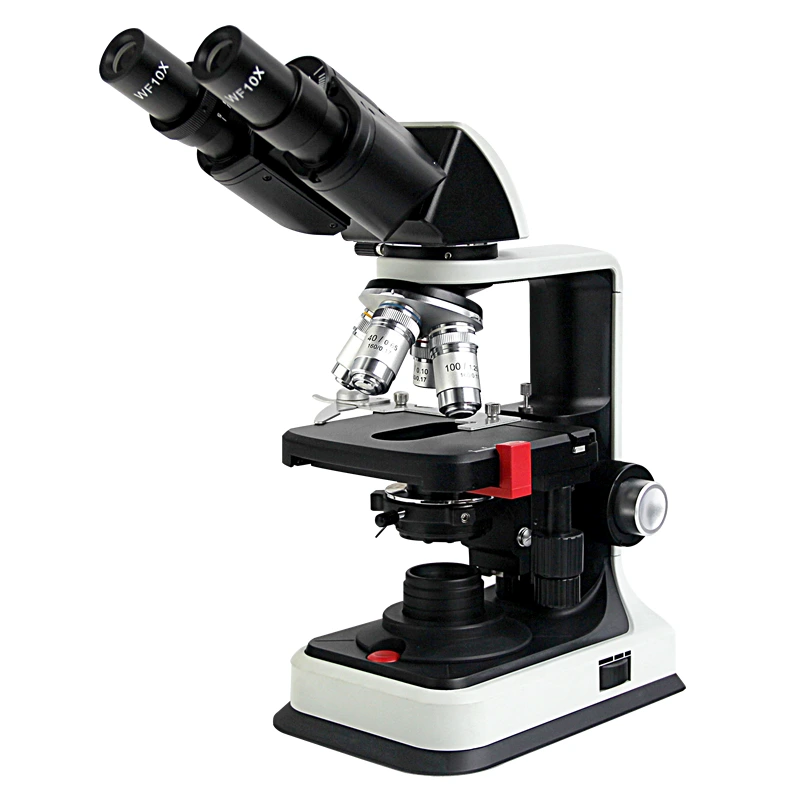

40X-1000X Digital Compound Microscope - HONYU
Features
• Equipped with achromatic objectives
• Four wide-field magnification power: 40X, 100X, 400X, 1000X
• Coaxial coarse and fine focus system
Specification
|
Head |
STU.65.SM20B: Binocular Head, 45° inclined,360° Rotatable, Interpupillary Distance 48-75mm |
|
STU.65.SM20T: Trinocular Head, 45° inclined,360° Rotatable, Interpupillary Distance 48-75mm |
|
|
STU.65.SM20M: Monocular Head, 45° inclined,360° Rotatable |
|
|
Eyepiece |
WF10X/18mm |
|
Objective |
Achromatic 4X |
|
Achromatic 10X |
|
|
Achromatic 40X, Spring |
|
|
Achromatic 100X, Spring, Oil |
|
|
Nosepiece |
Quadruple Revolving Nosepiece |
|
Stage |
Double Layer Mechanical Stage, Size125mmx115mm, Moving Range: 70mmx30mm |
|
Focusing |
Coaxial Coarse and Fine Focusing: 0.002mm division |
|
Condenser |
ABBE N.A.1.25 Condenser with Iris Diaphragm & Filter |
|
Filter |
Blue Filter |
|
Light source |
1W LED, with Rechargeable Battery, Type C USB cable, 5V/1A USB Charger |
|
Note: if shipped by air, Battery not be offered with goods |
Optional Accessories
|
Biological Microscope |
|
|
Eyepiece |
WF10X/20mm,Insert Diam23.2mm |
|
WF16X/13mm,Insert Diam23.2mm |
|
|
WF20X/12mm, Insert Diam23.2mm |
|
|
WF25X/8mm, Insert Diam23.2mm |
|
|
Objective |
Plan Achromatic objective 4X, 10x,40x,100x |
products display
