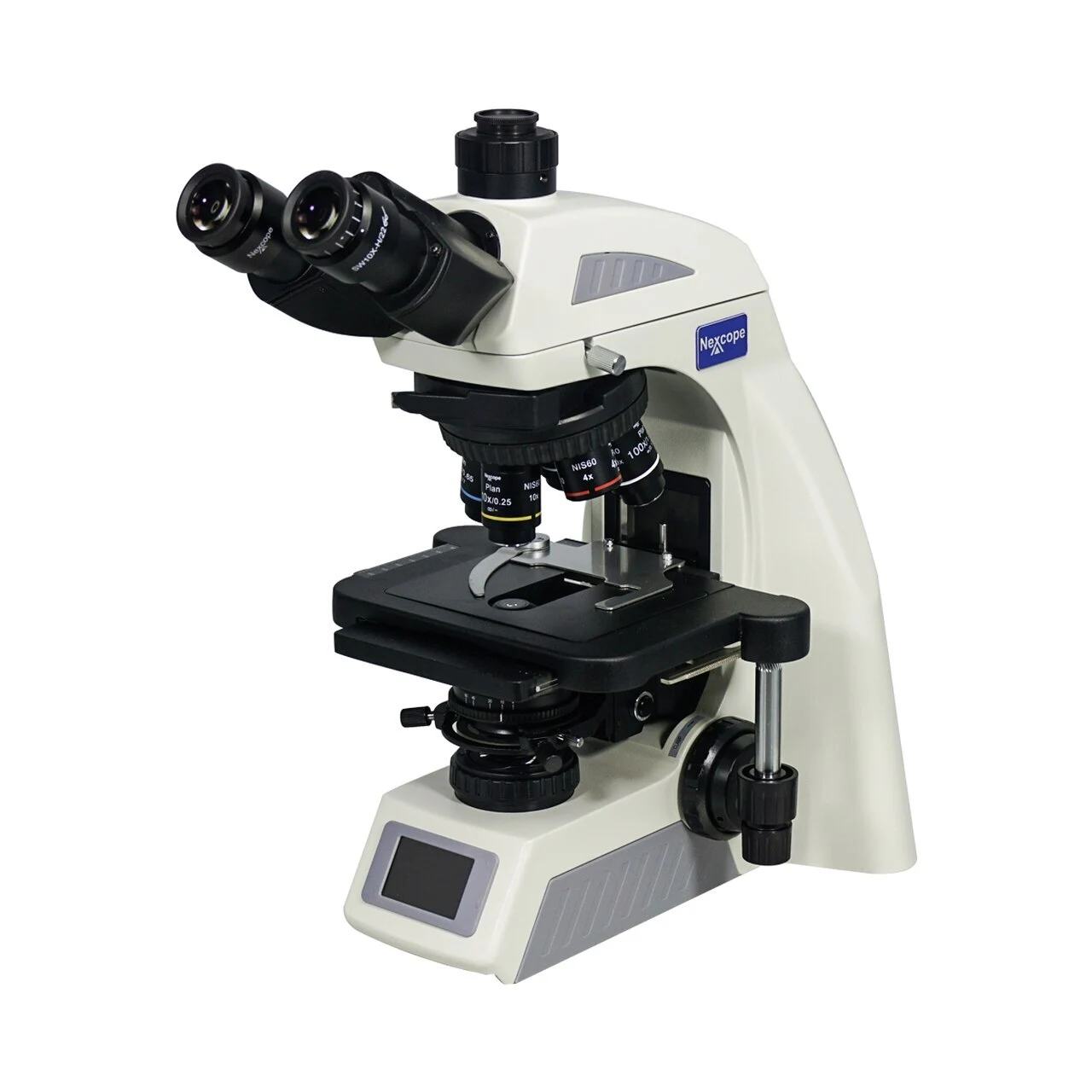

40X-1000X Advanced Research Grade Compound Biological Microscope CPD.06.600

Item

Specification

600B

600T

Optical System

Infinite Optical System

●

●

Eyepiece

Extra Wide Field Eyepiece EW10×/22mm

●

●

Wide Field Eyepiece WF15×/16

○

○

Wide Field Eyepiece WF20×/12

○

○

Viewing Head

Seidentopf Binocular Viewing Head, Inclined at 30°, 360° Rotatable, Interpupillary 47-78mm, Anti-Fungus, Tube Diameter 30mm

●

Seidentopf Trinocular Viewing Head, Inclined at 30°, 360° Rotatable, Interpupillary 47-78mm, Splitting ratio 5:5, Anti-Fungus, Tube Diameter 30mm

●

Seidentopf Binocular Viewing Headwith Built-in 5.0MP Digital Camera, HDMI and Wifi output interface, Inclined at 30°, 360° Rotatable, Interpupillary 47-78mm, Anti-Fungus, Tube Diameter 30mm

○

○

Objective

NIS45 Infinite Plan Achromatic Objective 4× (N.A.:0.10, W.D.:20.6mm)

●

●

NIS45 Infinite Plan Achromatic Objective 10× (N.A.:0.25, W.D.:18.0mm),

●

●

NIS45 Infinite Plan Achromatic Objective 40× (N.A.:0.65, W.D.:1.5mm),

●

●

NIS45 Infinite Plan Achromatic Objective 100× (Oil, N.A.:1.25, W.D.:0.3mm)

●

●

NIS45 Infinite Plan Achromatic Objective 20× (N.A.:0.40, W.D.:6.4mm)

○

○

NIS45 Infinite Plan Achromatic Objective 60× (N.A.:0.80, W.D.:0.3mm)

○

○

NIS45 Infinite Plan Phase Contrast Achromatic Objective 10×, 20×, 40×, 100×

○

○

Nosepiece

Backward Quintuple Nosepiece

●

●

Stage

Rackless stage, Size 230×150mm, Moving Range 78×54mm

●

●

Condenser

Inserted Abbe Condenser NA1.25(Including Empty Plate)

●

●

Bright Field-Phase Contrast Plate (4x-100x Universal)

○

○

Bright Field-Dark Field Plate

○

○

Focusing

Coaxial coarse and fine adjustment, Coarse stroke 37.7mm per rotation, Fine stroke 0.2mm per rotation, Fine division 0.002mm, Moving range 30mm

●

●

Illumination

1W LED illumination, Brightness Adjustable

●

●

Fluorescent Attachment

3W LED, Two Filter Cubes (B, B1, G, U, V, R, Auramine O can be combined), Fly-eye Lens Illumination

○

○

Other Accessories

1× C-mount adapter

○

○

0.5× C-mount adapter

○

○

Simple Polarization Set

○

○

Digital Camera

○

○

Filter

Green

●

●

Blue, Yellow, Red

○

○

Package

1pc/carton, Carton size: 48cm*33cm*60cm, Net/Gross Weight: 10.5kg/12.5kg

●

●

Note: ●Standard Outfit, ○ Optional
