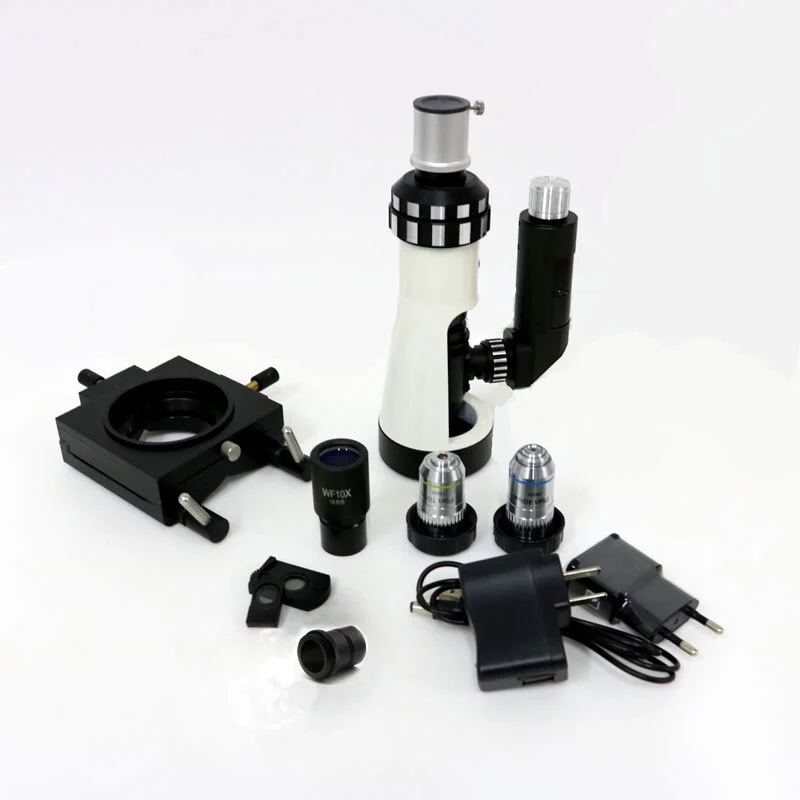

10x-500x Portable Handheld Metallurgical Microscope for Field Pipe Inspection
Features
- Portable handheld design offering much inspection accessibility
- 100x-500x Microscope with Carrying Box(1000x reachable)
- Built-in rechargeable and adjustable LED illumination
- Magnetic base(Optional) for attaching to pipes, machinery, and other metal surfaces
Specification
|
Eyepiece |
WF10X/FN18, Dia. 23.2 |
|
LWD Plan Objective (no cover glass) |
PLL 10X/0.25 WD=7.3mm |
|
PLL 50X/0.65 WD=0.5mm |
|
|
Adapter |
C-mount adapter (for connecting C-mount cameras) |
|
Mechanical Tube Length |
160mm |
|
Focusing |
Coaxial coarse/fine focus system, range:36mm |
|
Polarizing Kits |
Polarizer and Analyzer |
|
Light Source |
Coaxial illumination, build-in LED rechargeable, brightness adjustable |
|
Packing info |
Optional Accessory
|
Parts Name |
Specification |
Order No. |
|
Metal Specimen |
50 Types Metal Specimen for Option ( MOQ 25pcs for one set) |
SLD.28.MTL |
|
Magnet Stage |
Magnetic stage, which can be stick on metal samples, make observation easier |
STD.24.01 |
|
Digital Adapter |
For Canon EOS Digital Camera |
ADA.24.EOS |
|
LWD Plan Objective Non-cover glass |
PLL20 WD=8.6mm |
OBJ.24.PLL20 |
|
PLL60 WD=1.34mm |
OBJ.24.PLL60 |
|
|
PLL80 WD=0.96mm |
OBJ.24.PLL80 |
|
|
PLL100 WD=0.4mm |
