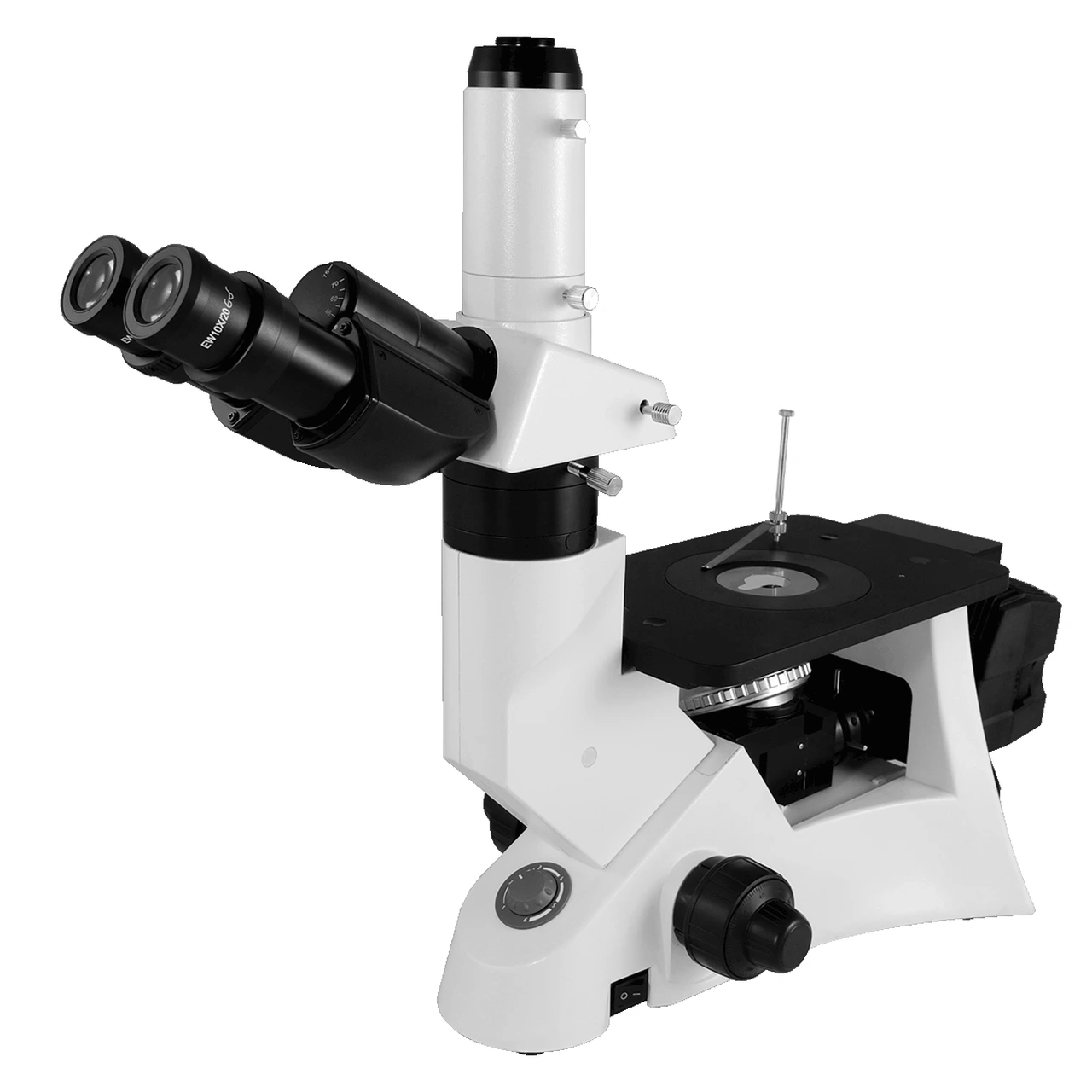

40X-400X Trinocular Inverted Metallurgical Microscope - HONYU
Features
• Five Wide-field magnification settings: 40X to 400X
• Long working distance plan achromatic objectives
• Equipped with analyzer and polarizer
Specification
|
Head |
Trinocular head inclined at 30 °, interpupillary distance adjustment: 48-75mm |
|
Eyepiece |
High-point ,extra wide field eyepiece EW10×/20 ( Dia.30mm) |
|
Metallurgical Infinity Plan Objective |
Metallurgical Infinity Plan Objective 4X/0.1 (non-cover) |
|
Metallurgical Infinity Plan Objective 10X/0.25 (non-cover) |
|
|
Metallurgical Infinity Plan Objective 20X/0.4 (non-cover) |
|
|
Metallurgical Infinity Plan Objective 40X/0.6 (non-cover) |
|
|
Nosepiece |
Quintuple nosepiece |
|
Stage |
Plain stage 160x250mm, center hole Φ10mm, Φ15mm, Φ25mm |
|
Focusing |
Coaxial Coarse and Fine Focusing, vertical objective movement. Coarse Range 37.7mm/per rotation, Division 0.2mm/per rotation |
|
Illumination |
Kohler Illumination, Halogen Lamp 6V30W, Brightness Adjustable |
|
Filter |
Blue, Yellow. Green and ground glass |
|
Polarizing |
Polarization attachment |
Optional Accessories
|
Items |
Specification |
Order No. |
|
Metallurgical Infinity Plan Objective |
Infinity Plan Achromatic Objective 50X/0.75 (non-cover) |
OBJ.06.MIPL |
|
Infinity Plan Achromatic Objective 80X/0.9 (non-cover) |
OBJ.06.MIPL |
|
|
Infinity Plan Achromatic Objective 100x/0.80 (non-cover) |
OBJ.06.MIPL |
|
|
Stage |
Attachable X-Y mechanical stage, coaxial control, movement range 120 x78mm |
STD.06.XY |
|
Adapter |
C-Mount adapter |
ADA.06.C1X |
