Comprehensive Microscope Solution Supplier for Biological and Industrial Inspection.
Features

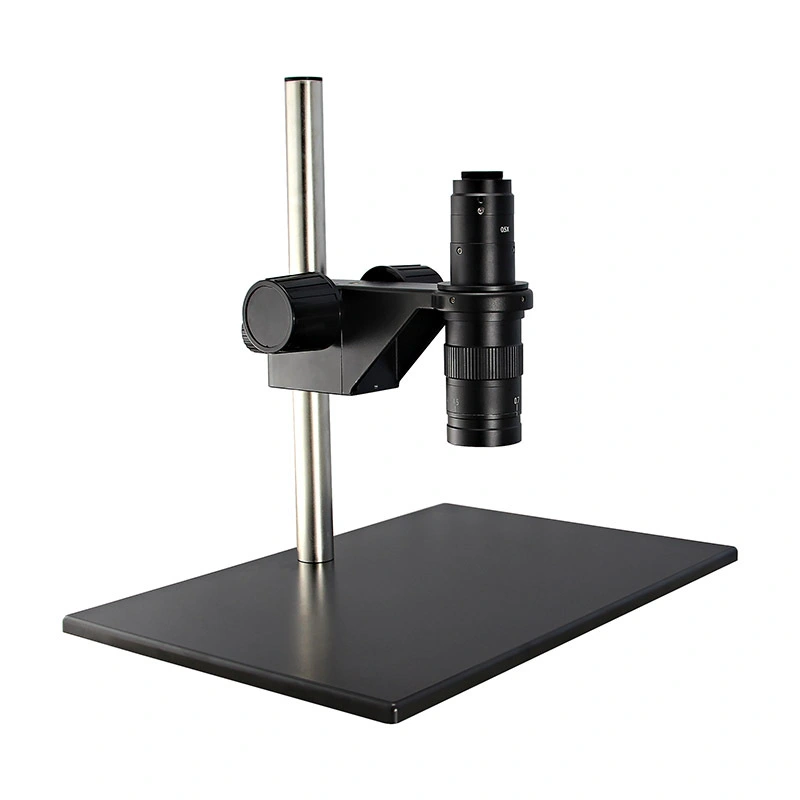

• Lab quality 0.7x-4.5x zoom video inspection lens
• high resolution and high contrast images offered
• Multiple CCD adapters and objectives available
Specification
Zoom range |
0.7X-4.5X |
Zoom Ratio |
01:06.4 |
Zoom Body Diameter |
Body Diameter for matching focusing mount: 45mm |
Standard Working Distance |
86mm(1X objective in Standard set) |
CCD Adapter |
1x CCD adapter in standard Set |
Optical Parameter
Magnification |
Working distance |
Field of View |
Depth of Field |
Numerical aperture |
Resolution |
0.7X |
85.6 |
10.3x5.8mm |
2.04mm |
0.025mm |
0.014mm |
1.0X |
85.6 |
7.2x4.1mm |
1.21mm |
0.033mm |
0.010mm |
2.0X |
85.6 |
3.6x2.0mm |
0.38mm |
0.053mm |
0.006mm |
3.0X |
85.6 |
2.4x1.3mm |
0.20mm |
0.067mm |
0.005mm |
4.0X |
85.6 |
1.8x1.0mm |
0.13mm |
0.079mm |
0.004mm |
4.5X |
85.6 |
1.6x0.9mm |
0.09mm |
0.090mm |
0.004mm |
