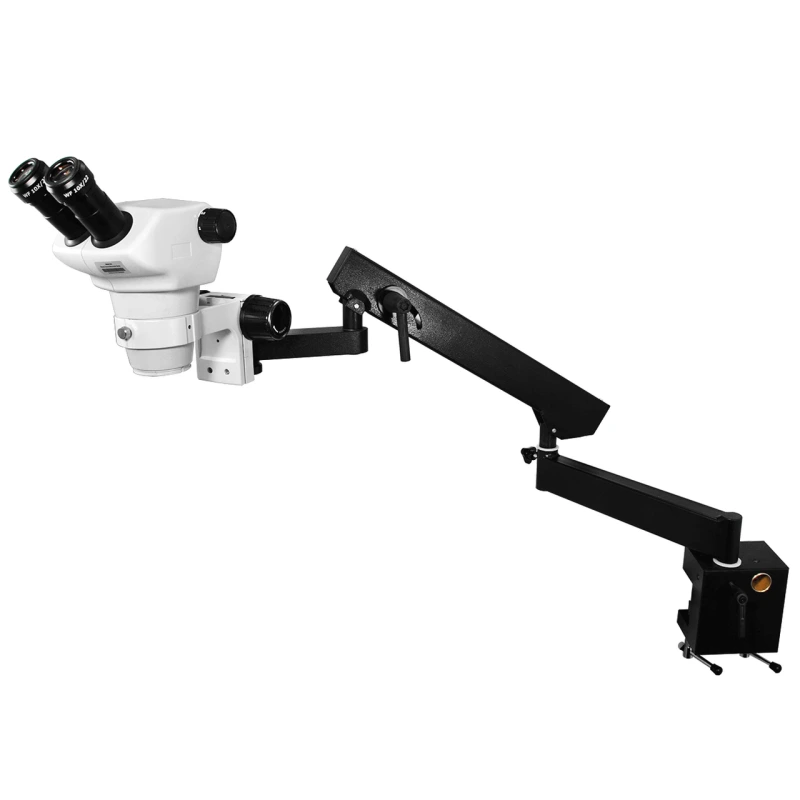

8X-50X Flexible Arm Boom Stand PCB Inspection Stereo Microscope
Features
- 8X-50X super widefield zoom magnification power
- Large working distance up to 115mm
- Widefield Optics Offering Crisp Clear Stereo Images
- Flexible arm offers flexible operation room
Specification
|
Head |
Binocular head, inclined at 45 degree, interpupillary distance 52-75mm |
|
Eyepiece |
WF10X/22 with Diopter Adjustable +-5 |
|
Zoom Range |
0.8X-5X |
|
Zoom Ratio |
01:06.3 |
|
Field of View |
1.3mm-55mm (with auxiliary lens) |
|
Working Distance |
Standard 115mm, 43.5mm-211mm (with auxiliary lens) |
|
Total Magnification |
4X-200X (with auxiliary lens) |
|
Arm |
360 degree rotatable arm, total length: 800mm. Fixed by table clamp. |
Optics Parameter
|
Auxiliary Lens |
Eyepieces |
|||
|
10X |
15X |
20X |
||
|
0.5X |
Mag.: FOV: (mm) WD: (mm) |
4X - 25X 55 - 8.8 211 |
6X - 37.5X 40 - 6.4 211 |
5X - 50X 31.2 - 5.0 211 |
|
1X(Built-in body) |
Mag.: FOV: (mm) WD: (mm) |
8X - 50X 27.5 - 4.4 115 |
12X - 75X 20- 3.2 115 |
16X - 100X 15.6 - 2.5 115 |
|
2X |
Mag.: FOV: (mm) WD: (mm) |
16X - 100X 13.8 - 2.2 43.5 |
24X - 150X 10 - 1.6 43.5 |
32X - 200X 7.8 - 1.3 43.5 |
Optional Accessories
|
Eyepiece |
WF15x/16 |
EYE.20.15XFN16 |
|
WF20x/12.5 |
EYE.20.20XFN12.5 |
|
|
Objective |
0.5x WD=220mm |
OBJ.20X.645S0.5X |
|
2x WD=45mm |
OBJ.20.645S2X |
|
|
CCD Adapter |
0.4x CCD adapter |
ADA.20.C0.4 |
