Comprehensive Microscope Solution Supplier for Biological and Industrial Inspection.
Oem & Odm Inverted Metallurgical Microscope Inverted Metallurgical Microscope Company
Company Advantages
· HONYU inverted metallurgical microscope is made from high-quality materials in a sophisticated manufacturing facility.
· The product is guaranteed to be of consistent quality with the adoption of the statistical quality control technique.
· Ningbo Haishu HONYU Opto-Electro Co., Ltd has set up a perfect quality guarantee system and a sound management system.
Features
• Five Wide-field magnification settings: 50X to 500X
• Long working distance plan achromatic objectives
• Equipped with analyzer and polarizer
Specification
|
Specification |

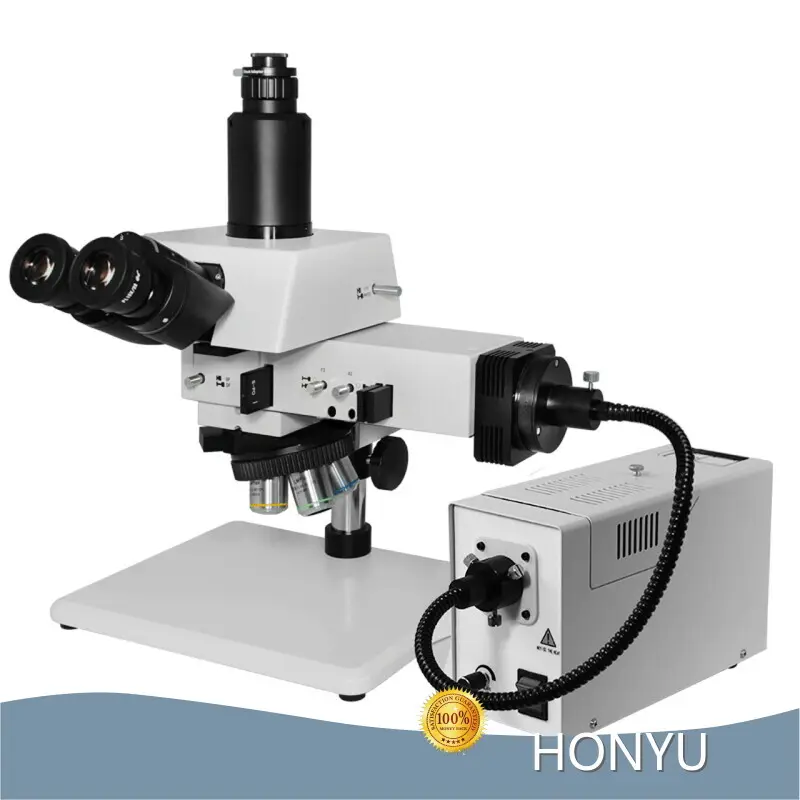

MTL.03.FMSBD Industry Metallurgical with Positive image viewing |
|
Head |
25°inclined trinocular head with positive image viewing, splitting ratio for binocular: trinocular =100：0 or 0:100, diopter adjustment±5,interpupillary distance 54mm-75mm |
|
Observation method |
Bright field/Dark field |
|
Eyepiece |
High eye-point plan eyepiece PL10x/22mm |
|
Objectives |
Infinity Plan LWD Bright field/Dark field metallurgical objective 5x-DIC WD=11mm |
|
Infinity Plan LWD Bright field/Dark field metallurgical objective 10x-DIC WD=9.5mm |
|
|
Infinity Plan LWD Bright field/Dark field metallurgical objective 20x-DIC WD=3.4mm |
|
|
Infinity Semi-APO plan LWD Bright field/Dark fieldmetallurgical objective 50x WD=7.5mm |
|
|
Nosepiece |
Backward quintuple nosepiece for bright field & dark field，with DIC slot. |
|
Focusing |
Coaxial coarse and fine adjustment, coarse adjustment distance 45mm,precision of fine adjustment:0.002mm,with tense adjusting device to prevent gliding |
|
Base |
B5 big flat base, size 320mmX260mmX16mm,post height 280mm,diameterφ32mm |
|
Reflected illumination system |
With iris field diaphragm and aperture diaphragm, central adjustable, with filter slot and polarizing slot, with switch device between bright field and dark field. |
|
Polarizing Attachment |
Fixed analyser flashboard |
|
360°rotatable analyser flashboard |
|
|
Illuminaor |
15V150W cold halogen lamp, intensity continuously adjustable; single fiber hose（550mm） |
Optional Accessories
|
Name of Parts |
Order No. |
|
|
Eyepiece |
Wide field plan eyepiece PL 10x/22mm with reticle |
PL10X22r |
|
Wide field plan eyepiece PL 10x/22mm,diopter adjustable |
PL10X22T |
|
|
Wide field plan eyepiece PL 10x/23mm,diopter adjustable |
PL10X23T |
|
|
DIC Kits |
|
MX-DICR |
|
Objectives |
IInfinity semi-APO plan achromatic LWD Bright field/Dark fieldmetallurgical objective 100x WD=2.1mm |
OLIPBD100NCS |
|
Filter |
Interference bule filter ≤480nm |
IF-B |
|
Interference green filter 520nm-570nm |
IF-G |
|
|
Interference red filter 630nm-750nm |
IF-R |
|
|
Interference neutral filter |
IF-LBD |
|
|
Photo Attachment |
Digital photo adapter (for C-mount and photo eyepiece) |
|
|
Vidio Attachment |
1/2 CTV C mount, focusing control |
MX-CTV0.5 |
|
Single Fiber Hose |
1000mm |
|
|
1500mm |
|
|
products display
Company Features
· Ningbo Haishu HONYU Opto-Electro Co., Ltd is the main producer of inverted metallurgical microscope at home and abroad.
· All production machines in Ningbo Haishu HONYU Opto-Electro Co., Ltd are imported from famous machine suppliers. We have good supervision of production for inverted metallurgical microscope. Ningbo Haishu HONYU Opto-Electro Co., Ltd have established strict management system to further guarantee quality.
· We devote ourselves to utilize materials as effectively as possible. We sustainably conserve our resources by constantly reusing, regenerating, and recycling products.
Product Details
inverted metallurgical microscope's details are presented to you in the following section.
Application of the Product
Our inverted metallurgical microscope is widely used in multiple industries and fields.
Based on customers' specific situations and needs, HONYU provides comprehensive and reasonable solutions.
Product Comparison
Our inverted metallurgical microscope has a certain share in the market because of the following characteristics.
HONYU is a professional optical supplier in China with more than 20 years’ experience in Microscopes.
