Product details of the microscope supplier
Product Introduction
HONYU microscope supplier is a newly designed with advanced international level. microscope supplier is well sold throughout the country and is well received by users. This product fills demand gaps in the industry.
Features
• Five Wide-field magnification settings: 50X to 500X
• Long working distance plan achromatic objectives
• Equipped with analyzer and polarizer
Specification
|
Specification |

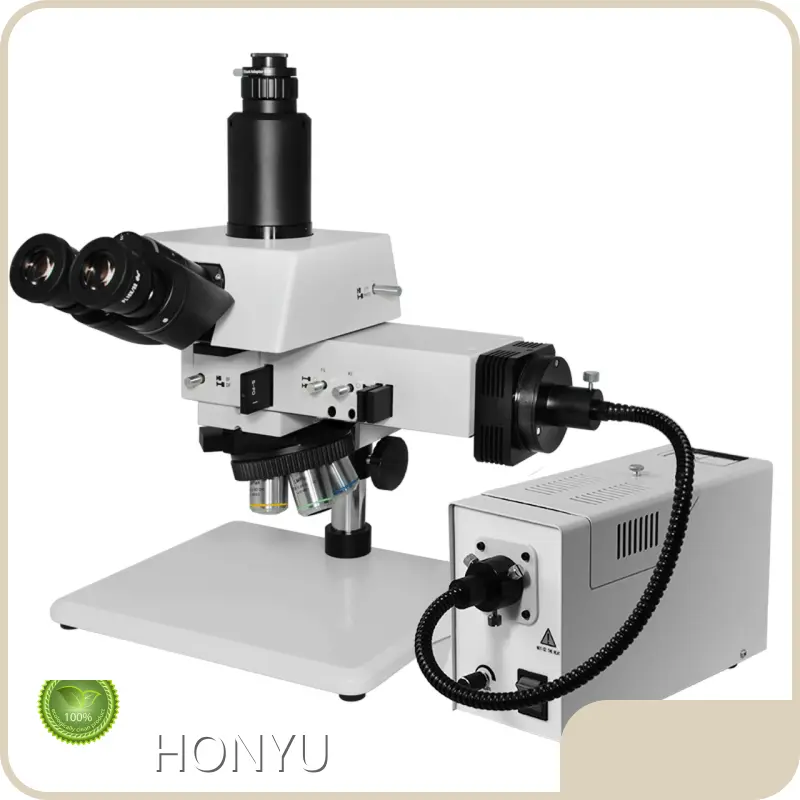

MTL.03.FMSBD Industry Metallurgical with Positive image viewing |
|
Head |
25°inclined trinocular head with positive image viewing, splitting ratio for binocular: trinocular =100：0 or 0:100, diopter adjustment±5,interpupillary distance 54mm-75mm |
|
Observation method |
Bright field/Dark field |
|
Eyepiece |
High eye-point plan eyepiece PL10x/22mm |
|
Objectives |
Infinity Plan LWD Bright field/Dark field metallurgical objective 5x-DIC WD=11mm |
|
Infinity Plan LWD Bright field/Dark field metallurgical objective 10x-DIC WD=9.5mm |
|
|
Infinity Plan LWD Bright field/Dark field metallurgical objective 20x-DIC WD=3.4mm |
|
|
Infinity Semi-APO plan LWD Bright field/Dark fieldmetallurgical objective 50x WD=7.5mm |
|
|
Nosepiece |
Backward quintuple nosepiece for bright field & dark field，with DIC slot. |
|
Focusing |
Coaxial coarse and fine adjustment, coarse adjustment distance 45mm,precision of fine adjustment:0.002mm,with tense adjusting device to prevent gliding |
|
Base |
B5 big flat base, size 320mmX260mmX16mm,post height 280mm,diameterφ32mm |
|
Reflected illumination system |
With iris field diaphragm and aperture diaphragm, central adjustable, with filter slot and polarizing slot, with switch device between bright field and dark field. |
|
Polarizing Attachment |
Fixed analyser flashboard |
|
360°rotatable analyser flashboard |
|
|
Illuminaor |
15V150W cold halogen lamp, intensity continuously adjustable; single fiber hose（550mm） |
Optional Accessories
|
Name of Parts |
Order No. |
|
|
Eyepiece |
Wide field plan eyepiece PL 10x/22mm with reticle |
PL10X22r |
|
Wide field plan eyepiece PL 10x/22mm,diopter adjustable |
PL10X22T |
|
|
Wide field plan eyepiece PL 10x/23mm,diopter adjustable |
PL10X23T |
|
|
DIC Kits |
|
MX-DICR |
|
Objectives |
IInfinity semi-APO plan achromatic LWD Bright field/Dark fieldmetallurgical objective 100x WD=2.1mm |
OLIPBD100NCS |
|
Filter |
Interference bule filter ≤480nm |
IF-B |
|
Interference green filter 520nm-570nm |
IF-G |
|
|
Interference red filter 630nm-750nm |
IF-R |
|
|
Interference neutral filter |
IF-LBD |
|
|
Photo Attachment |
Digital photo adapter (for C-mount and photo eyepiece) |
|
|
Vidio Attachment |
1/2 CTV C mount, focusing control |
MX-CTV0.5 |
|
Single Fiber Hose |
1000mm |
|
|
1500mm |
|
|
