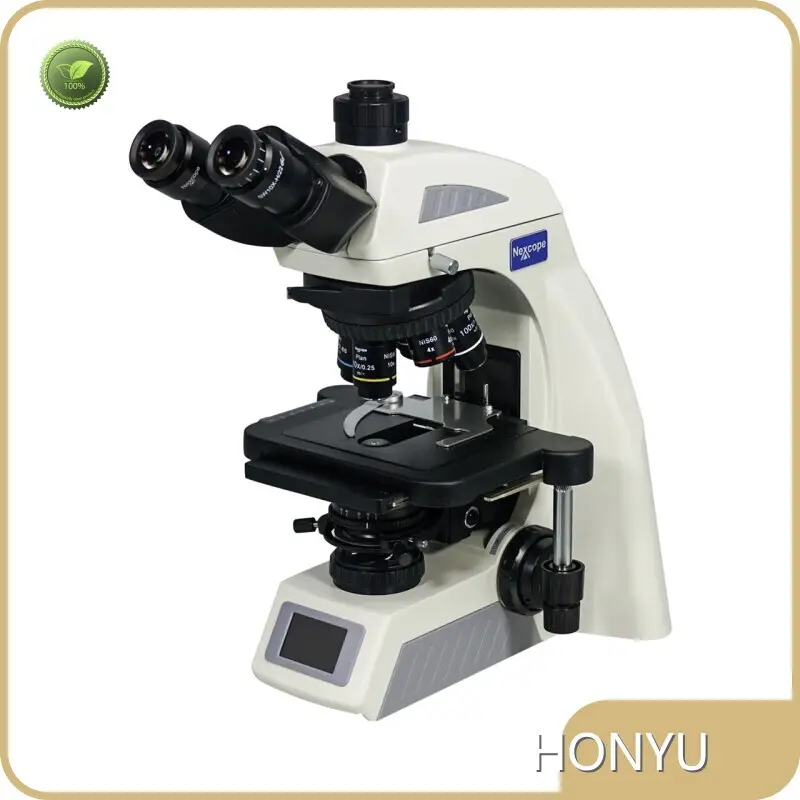

Product details of the biological microscope supplier
Product Introduction
HONYU biological microscope supplier is produced in strict accordance with international production specification and standards. As any defects are completely eliminated in the inspection process, the product is always in the best quality state. We have successfully applied for patents of technology for biological microscope supplier.
|
Item |
Specification |
600B |
600T |
|
Optical System |
Infinite Optical System |
● |
● |
|
Eyepiece |
Extra Wide Field Eyepiece EW10×/22mm |
● |
● |
|
Wide Field Eyepiece WF15×/16 |
○ |
○ |
|
|
Wide Field Eyepiece WF20×/12 |
○ |
○ |
|
|
Viewing Head |
Seidentopf Binocular Viewing Head, Inclined at 30°, 360° Rotatable, Interpupillary 47-78mm, Anti-Fungus, Tube Diameter 30mm |
● |
|
|
Seidentopf Trinocular Viewing Head, Inclined at 30°, 360° Rotatable, Interpupillary 47-78mm, Splitting ratio 5:5, Anti-Fungus, Tube Diameter 30mm |
|
● |
|
|
Seidentopf Binocular Viewing Headwith Built-in 5.0MP Digital Camera, HDMI and Wifi output interface, Inclined at 30°, 360° Rotatable, Interpupillary 47-78mm, Anti-Fungus, Tube Diameter 30mm |
○ |
○ |
|
|
Objective |
NIS45 Infinite Plan Achromatic Objective 4× (N.A.:0.10, W.D.:20.6mm) |
● |
● |
|
NIS45 Infinite Plan Achromatic Objective 10× (N.A.:0.25, W.D.:18.0mm), |
● |
● |
|
|
NIS45 Infinite Plan Achromatic Objective 40× (N.A.:0.65, W.D.:1.5mm), |
● |
● |
|
|
NIS45 Infinite Plan Achromatic Objective 100× (Oil, N.A.:1.25, W.D.:0.3mm) |
● |
● |
|
|
NIS45 Infinite Plan Achromatic Objective 20× (N.A.:0.40, W.D.:6.4mm) |
○ |
○ |
|
|
NIS45 Infinite Plan Achromatic Objective 60× (N.A.:0.80, W.D.:0.3mm) |
○ |
○ |
|
|
NIS45 Infinite Plan Phase Contrast Achromatic Objective 10×, 20×, 40×, 100× |
○ |
○ |
|
|
Nosepiece |
Backward Quintuple Nosepiece |
● |
● |
|
Stage |
Rackless stage, Size 230×150mm, Moving Range 78×54mm |
● |
● |
|
Condenser |
Inserted Abbe Condenser NA1.25(Including Empty Plate) |
● |
● |
|
Bright Field-Phase Contrast Plate (4x-100x Universal) |
○ |
○ |
|
|
Bright Field-Dark Field Plate |
○ |
○ |
|
|
Focusing |
Coaxial coarse and fine adjustment, Coarse stroke 37.7mm per rotation, Fine stroke 0.2mm per rotation, Fine division 0.002mm, Moving range 30mm |
● |
● |
|
Illumination |
1W LED illumination, Brightness Adjustable |
● |
● |
|
Fluorescent Attachment |
3W LED, Two Filter Cubes (B, B1, G, U, V, R, Auramine O can be combined), Fly-eye Lens Illumination |
○ |
○ |
|
Other Accessories |
1× C-mount adapter |
○ |
○ |
|
0.5× C-mount adapter |
○ |
○ |
|
|
Simple Polarization Set |
○ |
○ |
|
|
Digital Camera |
○ |
○ |
|
|
Filter |
Green |
● |
● |
|
Blue, Yellow, Red |
○ |
○ |
|
|
Package |
1pc/carton, Carton size: 48cm*33cm*60cm, Net/Gross Weight: 10.5kg/12.5kg |
● |
● |
|
Note: ●Standard Outfit, ○ Optional |
|||
Features
• Adopting color corrected infinity optical system
• Equipped with five infinity plan achromatic objectives
• Five wide-field magnification power: 40X to 1000X
• Coaxial coarse and fine focus system
