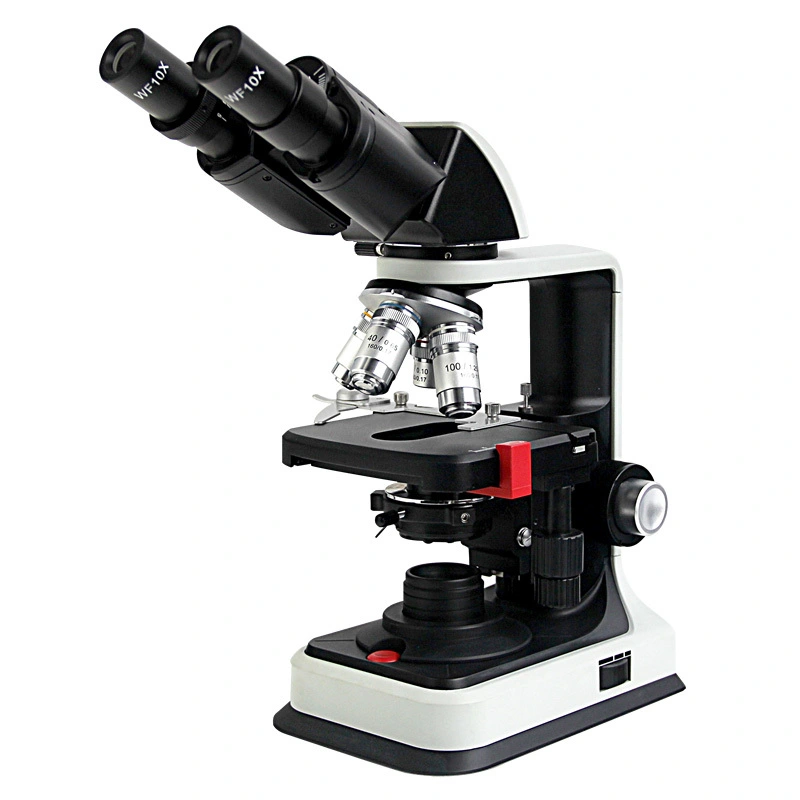

STU.65.SM20 Digital Biological Microscope - HONYU
Specification
|
Biological Microscope |
STU.65.SM20B |
||
|
Head |
Binocular Head, 45° inclined,360° Rotatable, Interpupillary Distance 48-75mm |
● |
|
|
Trinocular Head, 45° inclined,360° Rotatable, Interpupillary Distance 48-75mm |
Optional |
||
|
Monocular Head, 45° inclined,360° Rotatable |
Optional |
||
|
Eyepiece |
WF10X/18mm,Insert Diam23.2mm |
● |
|
|
WF10X/20mm,Insert Diam23.2mm |
Optional |
||
|
WF16X/13mm,Insert Diam23.2mm |
Optional |
||
|
WF20X/12mm, Insert Diam23.2mm |
Optional |
||
|
WF25X/8mm, Insert Diam23.2mm |
Optional |
||
|
Objective |
Achromatic 4X |
● |
|
|
Achromatic 10X |
● |
||
|
Achromatic 40X, Spring |
● |
||
|
Achromatic 100X, Spring, Oil |
● |
||
|
Nosepiece |
Quadruple Revolving Nosepiece |
● |
|
|
Stage
|
Double Layer Mechanical Stage,Size125mmx115mm,Moving Range :70mmx30mm, 0.1mm |
● |
|
|
Rackless Stage 110mmx120mm,Moving Range :70mmx30mm, |
Optional |
||
|
Focusing |
Coaxial Coarse and Fine Focusing;0.002mm division |
● |
|
|
Condenser |
ABBE N.A.1.25Condenser with Iris Diaphragm & Filter |
● |
|
|
Filter |
Light Blue Filter |
● |
|
|
Dust Cover |
1PCS Dust Cover included |
● |
|
|
Light source |
1W LED, with Rechargeable Battery, Type C USB cable, 5V/1A USB Charger |
● |
|
products display
products Size
