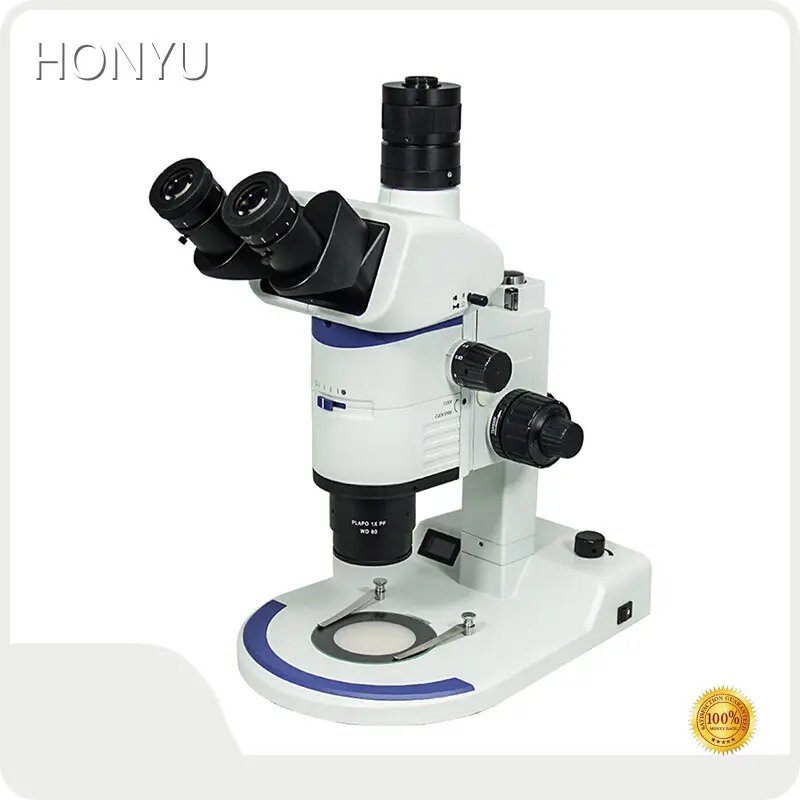

Wholesale Stereo Microscope with Camera for Dslr
Product details of the stereo microscope with camera
Product Description
Ningbo Haishu HONYU Opto-Electro Co., Ltd values the quality and safety of material. Customer demand is greatly fueled by the durability and performance of the product. With all these features, it is greatly recognized by customers.
Features
• 0.63X-8X super widefield zoom magnification power
• Large working distance
• Widefield Optics Offering Crisp Clear Stereo Images
Specification
|
Item |
Specification |
Z12T |
Z12 |
|
Optical System |
Infinite Parallel Galileo Zoom Optical System |
● |
● |
|
Viewing Head |
Tilting trinocular viewing head, 5-45 degree adjustable; binocular: trinocular= 100:0 or 0:100; interpupillary distance 50-76mm; fixed eyepiece tube with lock screw |
● |
○ |
|
30 degree inclined trinocular head; fixed light distribution, binocular: trinocular=50: 50; interpupillary distance 50-76mm; fixed eyepiece tube with lock screw |
○ |
● |
|
|
Eyepiece |
High eye-point wide field plan eyepiece PL10×/22mm, diopter adjustable |
● |
● |
|
High eye-point wide field plan eyepiece PL15×/16mm, diopter adjustable |
○ |
○ |
|
|
High eye-point wide field plan eyepiece PL20×/12mm, diopter adjustable |
○ |
○ |
|
|
Zoom Range |
Zoom range: 0.63X-8X, click stop for 0.63×, 0.8×, 1×, 1.25×, 1.6×, 2×, 2.5×, 3.2×, 4×, 5×, 6.3×, 8×, with built-in aperture diaphragm |
● |
● |
|
Objective |
Plan Apochromatic Objective 0.5×, W.D.: 70.5mm |
○ |
○ |
|
Plan Apochromatic Objective 1×, W.D.: 80mm |
● |
● |
|
|
Plan Apochromatic Objective 1.5×, W.D.: 31.1mm |
○ |
○ |
|
|
Plan Apochromatic Objective 2×, W.D.: 20mm |
○ |
○ |
|
|
Zoom Ratio |
01:12.5 |
● |
● |
|
Nosepiece |
Nosepiece for 2 objectives |
○ |
○ |
|
Focusing Unit |
Coarse and fine coaxial focus system, integrated body with focus holder, coarse range: 50mm, fine precision 0.002mm |
● |
● |
|
Coaxial Illumination |
Intermediate magnification 1.5x, with 1/4λ glass slide, can be rotated 360 degrees, 20W LED cold light source power box, with brightness adjustment knob, flexible dual optical fiber, length 1 meter |
○ |
○ |
|
Base |
Flat base, without light source, with Φ100mm black and white plate |
○ |
○ |
|
Plan base with transmitted illumination (work with external 5W LED fiber); built-in 360 degree rotatable mirror, location and angle adjustable |
● |
|
|
|
Ultra-thin base, multiple LEDs (total power 5W), base with color temperature display and brightness display (color temperature range: 3000-5600K) |
● |
||
|
Illumination |
5W LED light box (size: 270×100×130mm) with single fiber (500mm), color temperature 5000-5500K; operating voltage 100-240VAC/50-60Hz, output 12V |
● |
|
|
LED Ring light (200pcs LED lamps) |
○ |
○ |
|
|
Camera Adapter |
0.5×/0.65×/1× C-mount adapters |
○ |
○ |
|
Packing |
1set/carton, Net/Gross weight: 14/16kg, Carton size: 59×55×81cm |
● |
● |
