Product details of the surgical microscope manufacturers
Product Description
HONYU surgical microscope manufacturers is delicately manufactured and reflects a high level of technology. The product is of highest quality and manufactured under strict quality control system. Ningbo Haishu HONYU Opto-Electro Co., Ltd has established a strict quality guarantee system.
Features
• Adopting infinity optical system
• Equipped with infinity achromatic objectives
• Four wide-field magnification power: 40X, 100X, 400X, 1000X
• Coaxial coarse and fine focus system
Specification
|

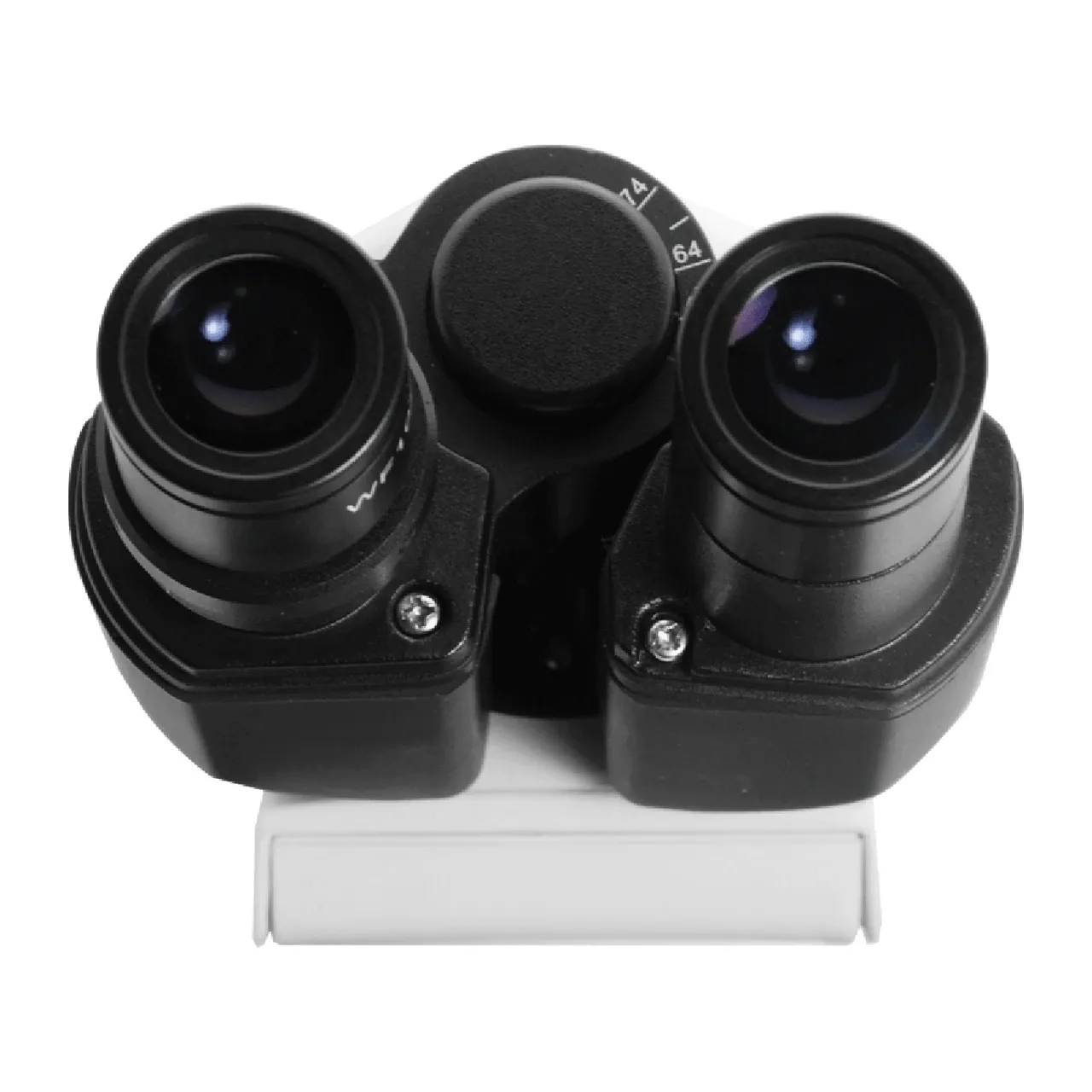

Head |
Binocular, Interpupillary distance 52-75mm, 30°inclined, 360° rotatable, ±5 Diopter Adjustment |
|
Eyepiece |
WF10x/18mm, High Eye-point Up To 21mm |
|

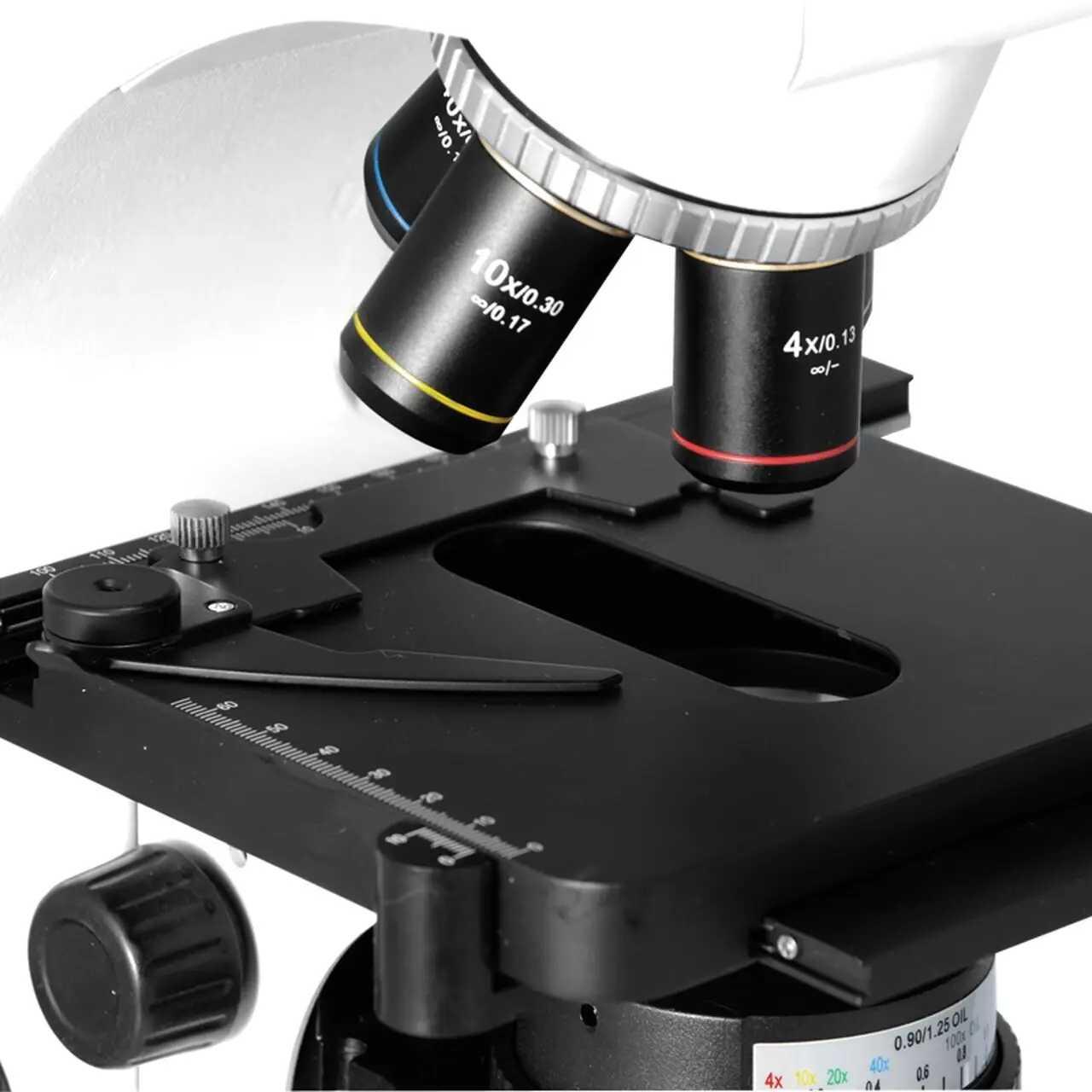

Objective |
Infinity Achromatic Objective 4X |
|
Infinity Achromatic Objective10X |
|
|
Infinity Achromatic Objective40X(S) |
|
|
Infinity Achromatic Objective100X(S)/(Oil) |
|
|

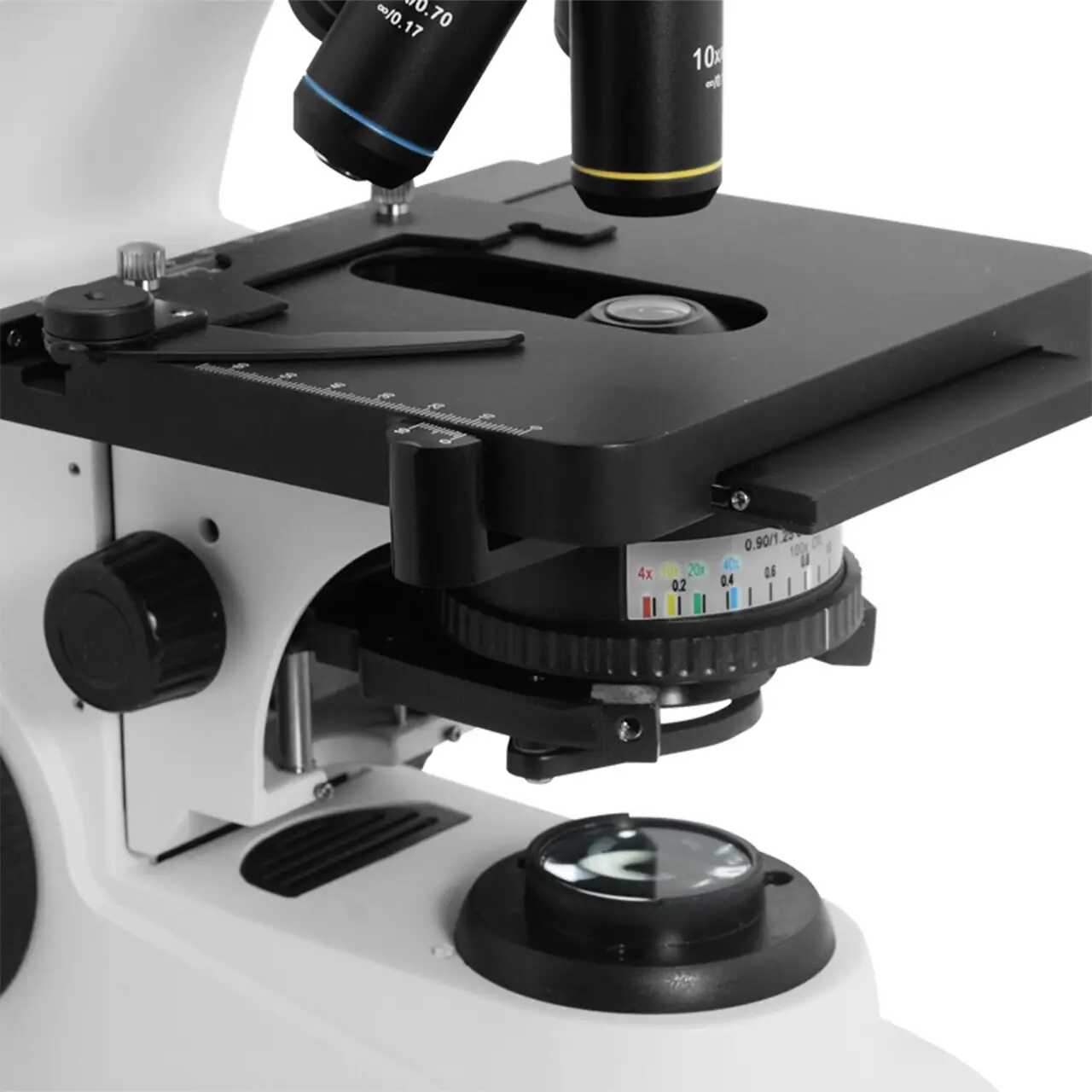

Condensor |
Abbe N.A.1.25 With Iris Diaphragm And With Socket For Phase Contrast / Dark Field Slider, Centering Adjustable, Color-Coded Diaphragm Scale Marking Corresponded With The Objectives Of Different Powe |
|

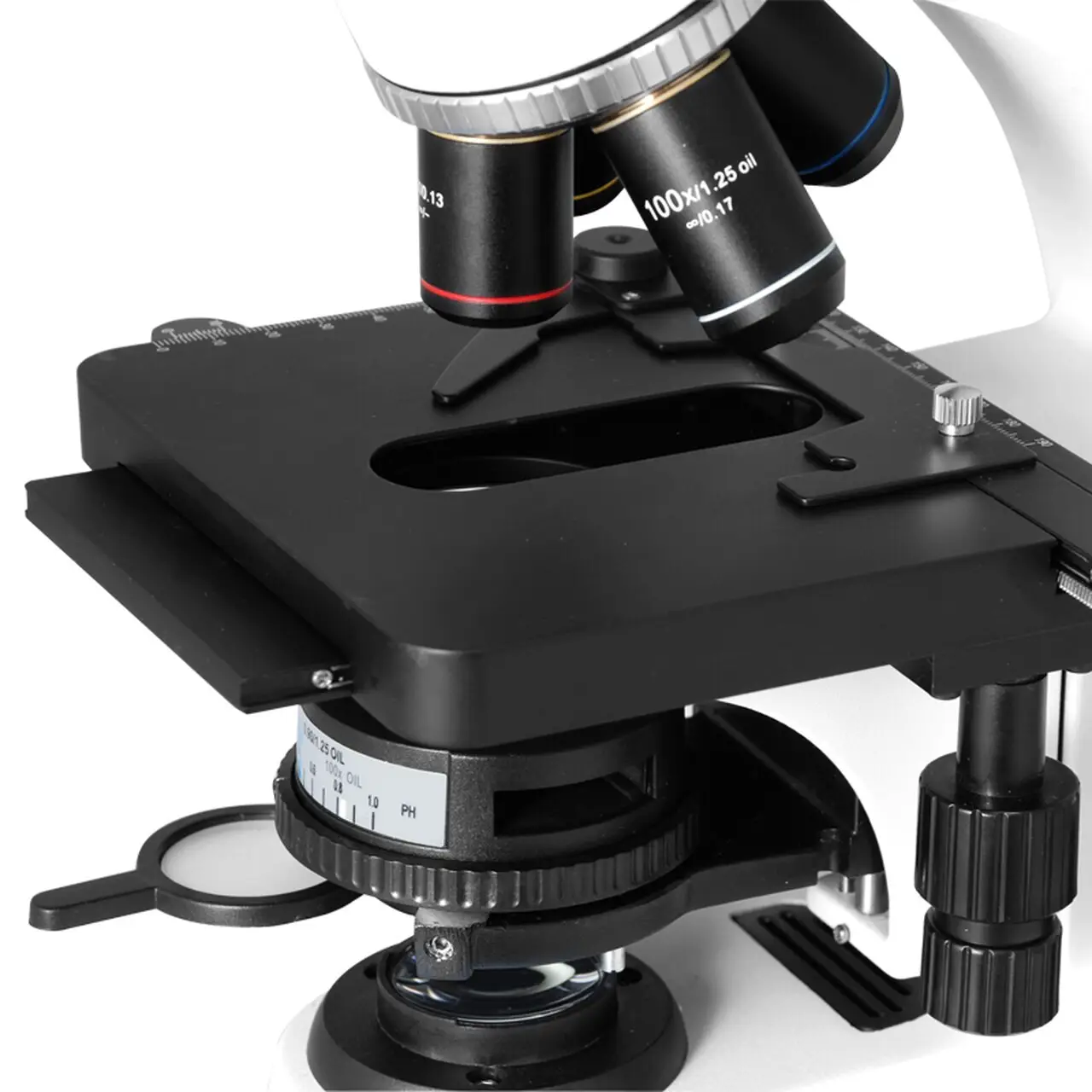

Stage |
Double Layer Mechanical, 142mmX135mm, Range: 76x52mm Low Position, Right Hand Control, X-Y Coaxial Control Knob, Two Slides Holder |
|
Focusing system |
Low Positioned, Coaxial Coarse & Fine Focusing System With Tension Adjustment And Up-Limited, Coarse Knob Coarse 14mm/Rot, Fine 0.1mm/Rot, Minimum Reading 1μm On Left-Side Fine Knob, Moving Range 20mm |
|
Nosepiece |
Quadruple, Revolving Nosepiece |
|
Light |
Kohler Illuminator(No Field Diaphragm) |
|
Electrics for 6V20W Halogen |
|
|
Filter |
Blue Filter (φ32, No Blue Filter for LED) |
|
Bulbs |
6V20W Osram Halogen Bulb |
|
250V/3.15A Φ5X20 Fuse |
Optional Accessories
|
Head |
Binocular, Interpupillary distance 48-75mm, 30°inclined, 360° rotatable, ±5 Diopter Adjustment |
|
Eyepiece |
WF10X20mm Eyepieces |
|
WF16X13mm Eyepieces |
|
|
WF10X18mm Eyepiece (Point) |
|
|
WF10X20mm Eyepiece (Point) |
|
|
WF10X20mm Reticule Eyepiece |
|
|
WF10X18mm Reticule Eyepiece |
|
|
Objective |
Infinity Plan Achromatic Objective 4X |
|
Infinity Plan Achromatic Objective 10X |
|
|
Infinity Plan Achromatic Objective 20X(S) |
|
|
Infinity Plan Achromatic Objective 40X(S) |
|
|
Infinity Plan Achromatic Objective 60X(S) |
|
|
Infinity Plan Achromatic Objective 100X(S)/(Oil) |
|
|
Stage |
Double Layer Mechanical, Size:156mmX138mm, Range: 76x54mm Low Position, Right Hand Control, X-Y Coaxial Control Knob, Two Slides Holder |
|
Nosepiece |
Quintuple, Revolving Nosepiece |
|
Light |
Electrics for 3W LED(with Rechargeable Battery) |
|
Electrics for 3W LED |
|
|
LED Rechargeable Battery |
|
|
Reflected Mirror |
|
|
Filter |
Green Filter (φ32) |
|
Yellow Filter (φ32) |
|
|
Ground Grass (φ32) |
|
|
Polarizing Kits |
Polarizer |
|
Analyzer |
|
|
Bulbs |
3W LED Bulb |

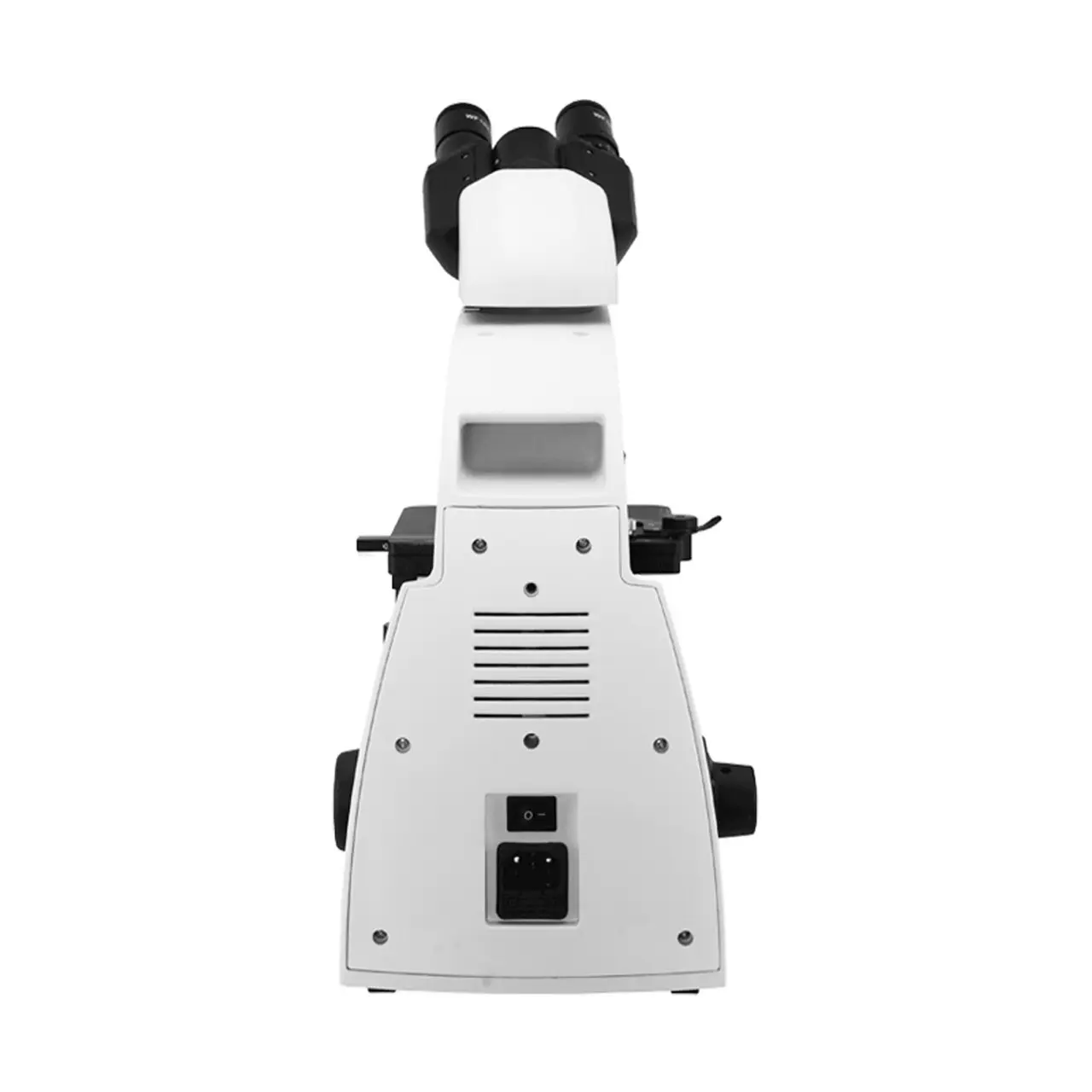

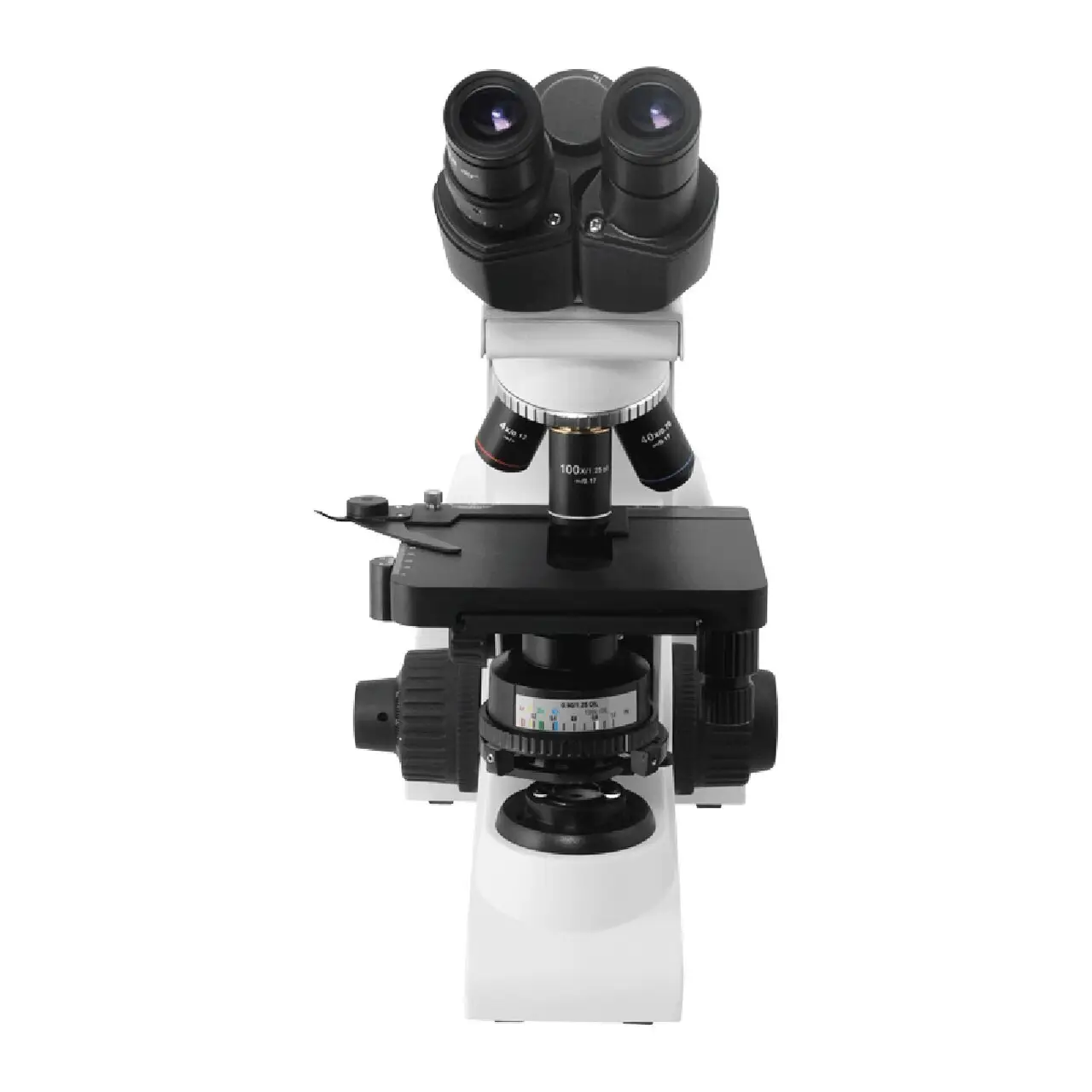

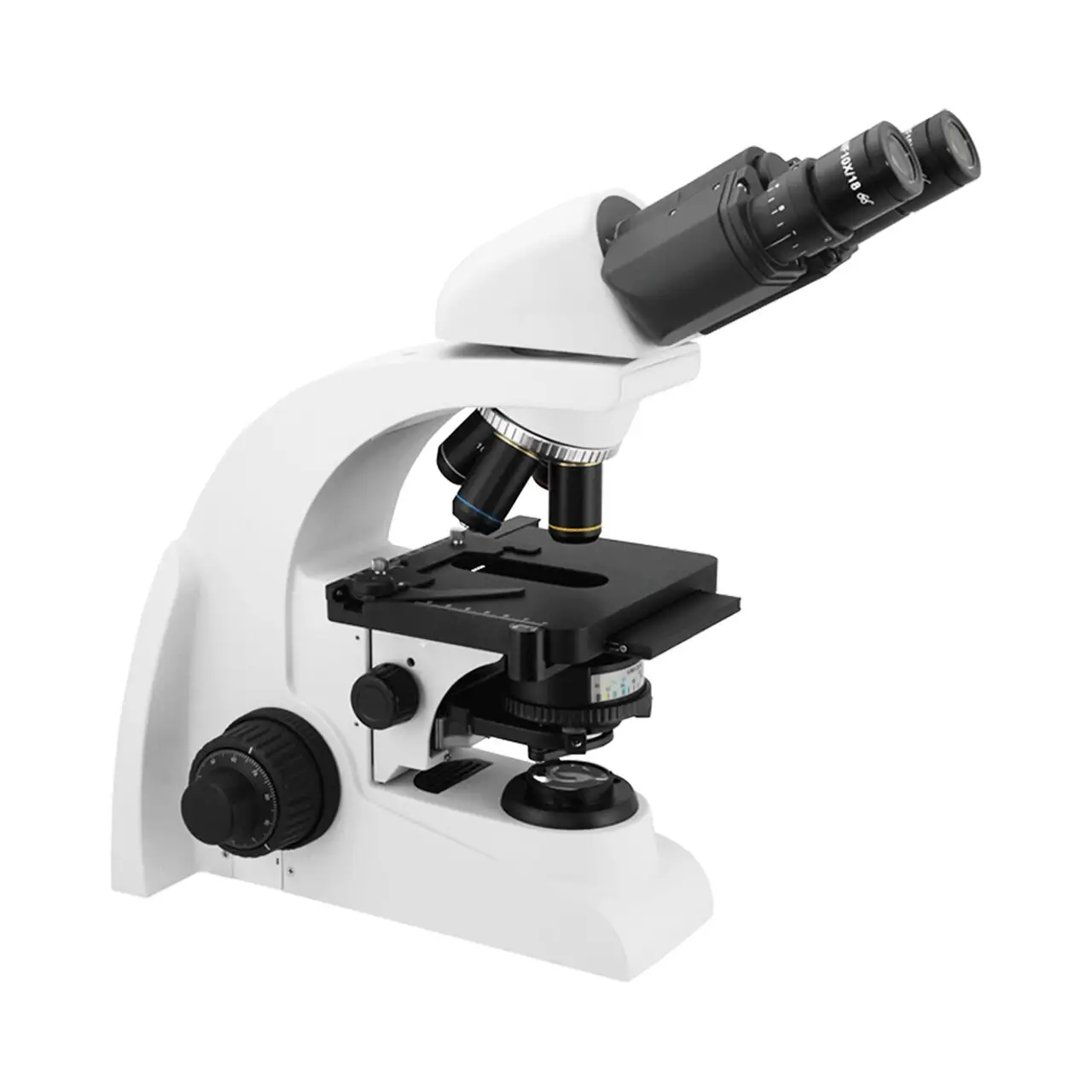

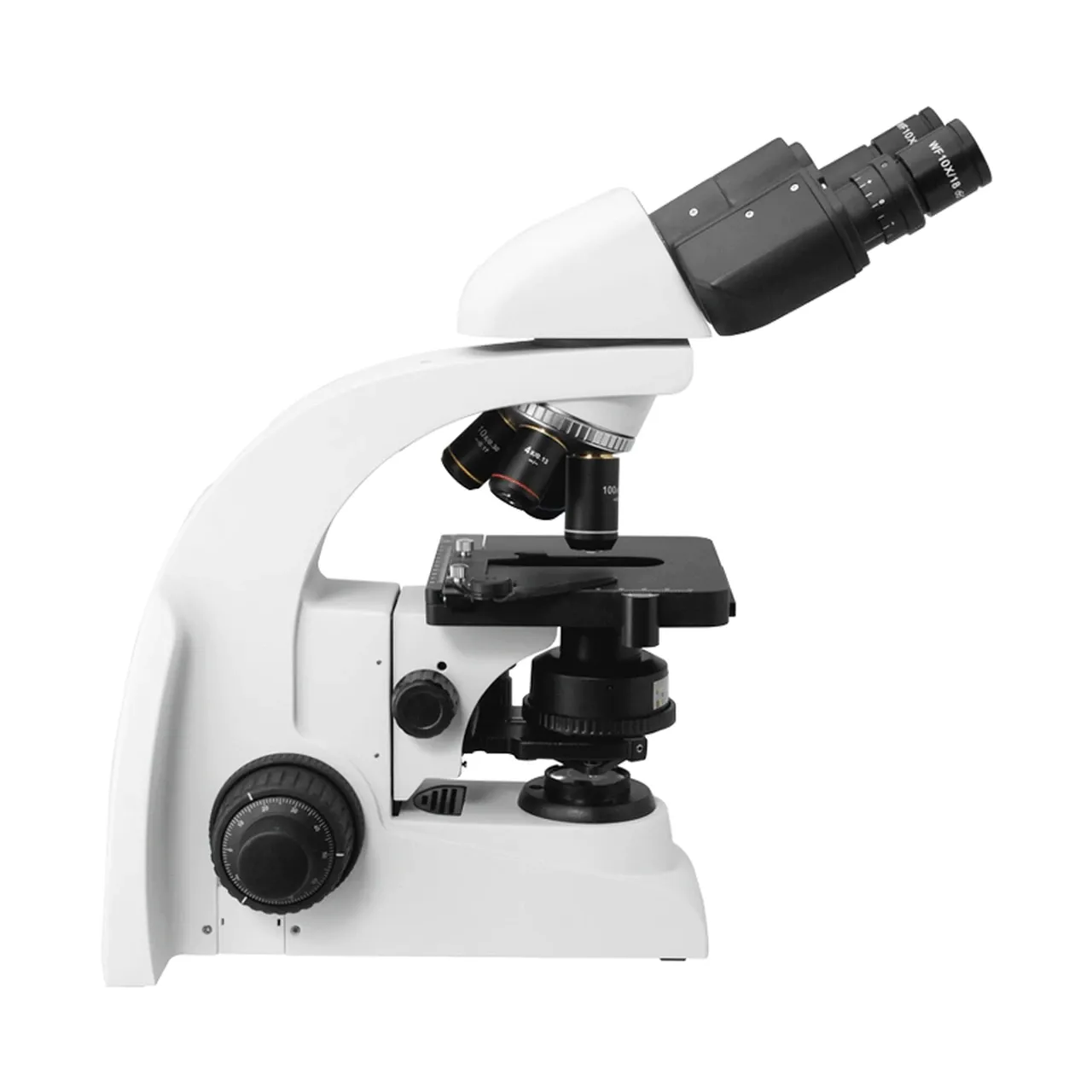

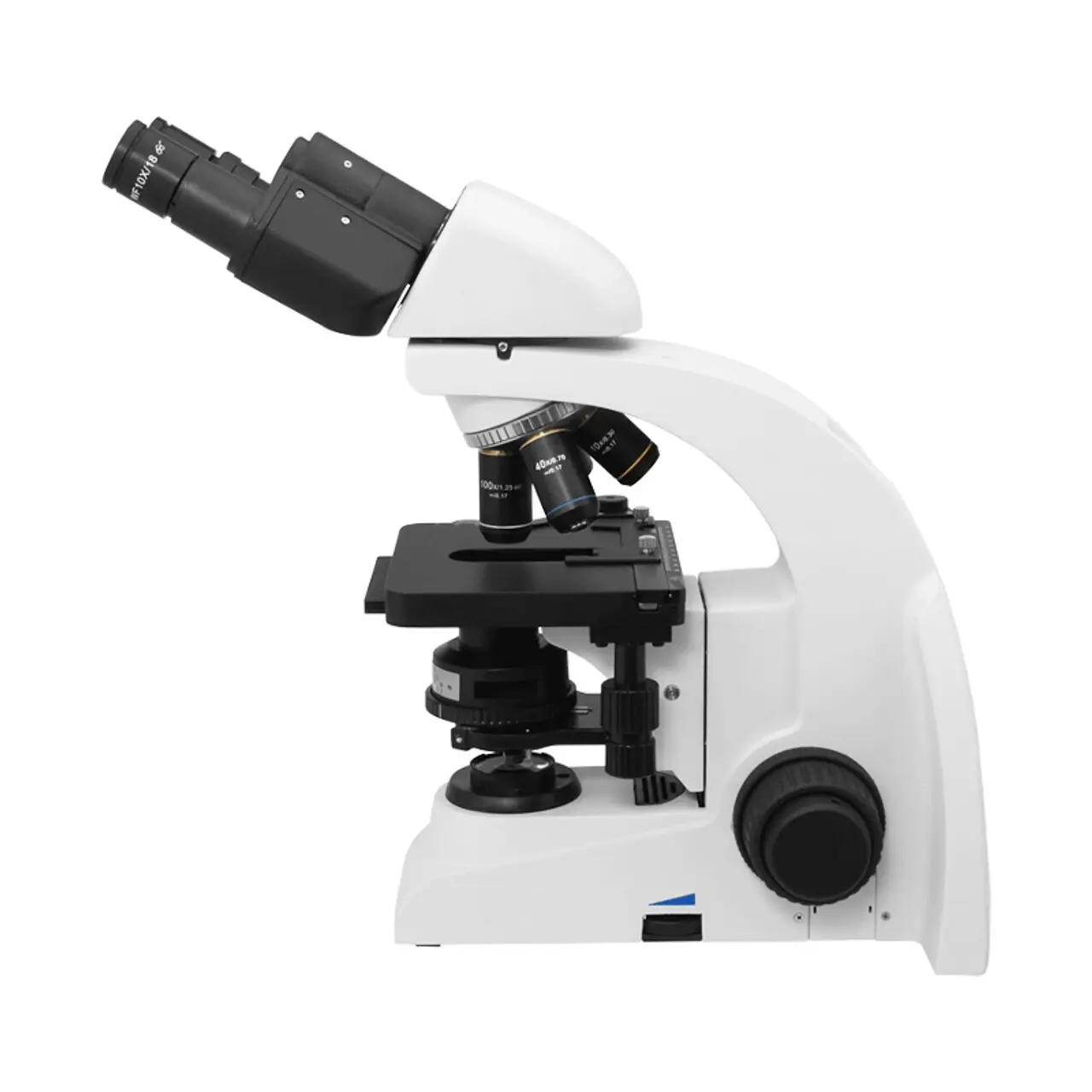

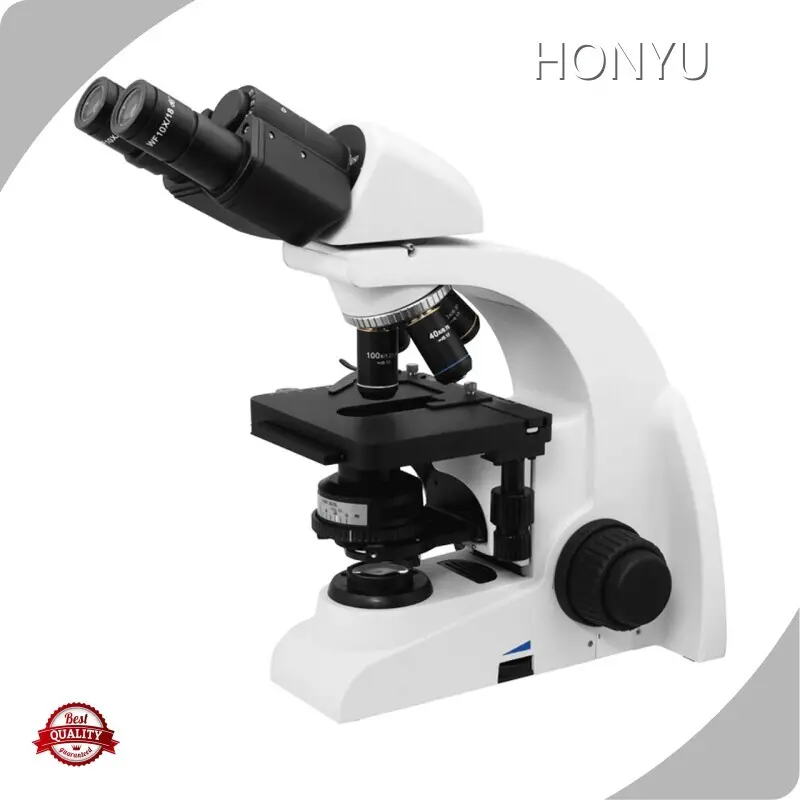

products display
Company Feature
• Our company can provide high quality and efficient management consulting service for the vast number of users at any time.
• We have established a product research center, and we have a team of high-quality talents composed of many industry experts and research and development backbones to contribute to the production of more superior products.
• Our company was built in We are equipped with advanced production equipment and strong technical force. Therefore, we have turned into an industry leading enterprise.
If you have any other questions about our Biological Microscope,Stereo Microscope,Metallurgical Microscope,Operation Microscope,Comparison Microscope,Handheld Digital Microscope,Microscope Accessories, please contact HONYU for consultation. We are ready to serve you at any time.
HONYU is a professional optical supplier in China with more than 20 years’ experience in Microscopes.
