Comprehensive Microscope Solution Supplier for Biological and Industrial Inspection.
Surgical Microscope Manufacturers Customized for Dslr
Product details of the surgical microscope manufacturers
Product Description
The innovative design enrichs the overall look of HONYU surgical microscope manufacturers. This product is cost-effective and the quality is exceptional. Ningbo Haishu HONYU Opto-Electro Co., Ltd has successfully developed a good business relationship with our customers and each day we continue to expand our customer base.
Features

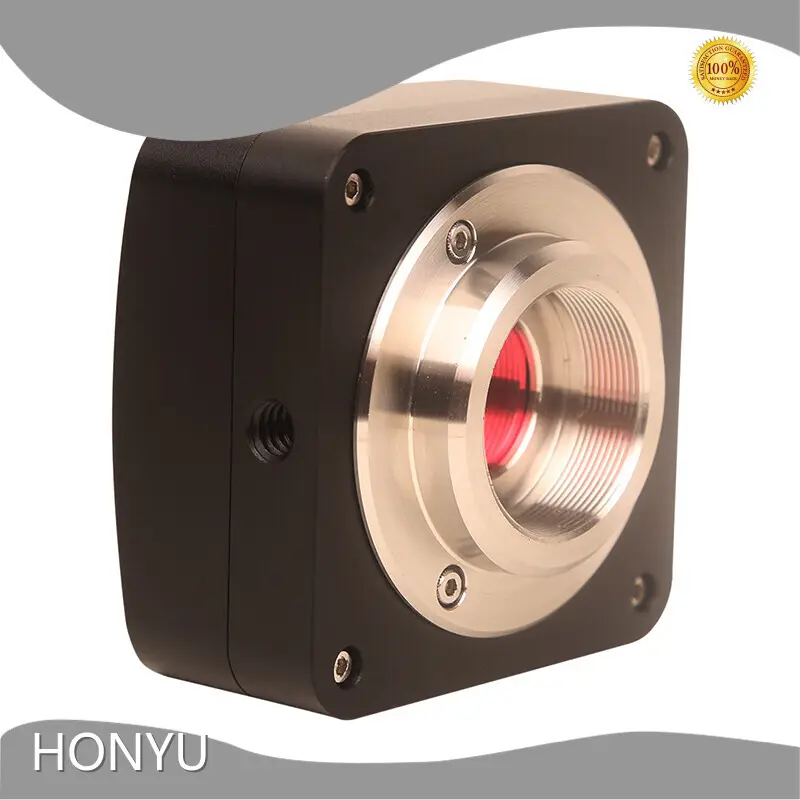

• USB2.0 high speed digital camera with CMOS sensor
• Capable of recording real-time, high-definition videos and capturing 5.1MP still images
• Compatible with Windows XP/Vista/7/8, Mac OS X and Linux
• Capable of being attachable to any microscopes, telescopes, endoscopes with C-mount
Specification
|
Hardware Configuration |
||
|
Max. Resolution |
2592x1944 (5.1 Mega Pixels) |
|
|
Pixel Size |
2.2μm x 2.2μm |
|
|
Frame Size and Rate |
5fps@2592x1944, 18fps@1280x960, 60fps@640x480 |
|
|
Sensor Model |
APTINA MT9P001(Color) |
|
|
Sensor Size |
1/2.5 inch (5.7mm(H) x 4.28mm(V)) |
|
|
Sensitivity |
0.53 V/lux-sec |
|
|
DynamicRange |
66.5dB |
|
|
A/D Converter |
10-bit, 8-Bit R.G.B to PC |
|
|
SN Ratio |
40.5dB |
|
|
Spectral Range |
380-650nm (with IR-filter) |
|
|
Binning |
1x1, 2x2, 4x4 |
|
|
Exposure |
0.294ms~2000msms |
|
|
Color Rendering Technique |
Ultra FineTM Color Engine |
|
|
White Balance |
One Push ROI White Balance/ Manual Temp-Tint Adjustment |
|
|
Capture/Control API |
Native C/C++ SDK, DirectShow, Twain |
|
|
Capture Mode |
Still Picture and Video |
|
|
Software Environment |
||
|
Operating System |
Windows XP / Vista / 7 / 8 (32 & 64 Bit) |
|
|
OS X (MAC OS X) |
||
|
Linux (Kernel 2.6 or Above) |
||
|
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
|
|
Memory:2GB or More |
||
|
USBPort:USB2.0 High-speed Port |
||
|
Operating Environment |
||
|
Operating Temperature |
-10~60℃ |
|
|
Storage Temperature |
-30~80℃ |
|
|
Operating Humidity |
30~80%RH |
|
|
Storage Humidity |
10~60%RH |
|
|
Power Supply |
Over USB Port |
|
Optional Accessories
|
Order Number |
Specification Description |
|
ADA.17.FMA050 |
0.5x Fixed Adapter for Eyepiece Tube or Trinocular Tube(23.2mm) |
|
ADA.17.AMA050 |
0.5x Adjustable Adapter for Eyepiece Tube or Trinocular Tube(23.2mm) |
|
ADA.17.EDA30 |
23.2mm to 30mm Eyepiece Adapter |
|
ADA.17.EDA305 |
23.2mm to 30.50mm Eyepiece Adapter |
Camera Standard Packing List
• One USB 2.0 5.1MP Digital Camera
• One high-speed USB 2.0 Cable
• One CD with Driver and Software
products display
Company Feature
• Our company has great traffic conditions, and multi traffic lines pass our company's location. It is beneficial to the outward shipping of products.
• During the development for years, HONYU has won the trust and support of customers in many fields.
• HONYU has established a complete service system to provide professional pre-sales, sales, and after-sales services for customers.
• HONYU's products are not only sold well in many cities in China but also exported to Southeast Asia, Africa, and other foreign countries.
Hello, welcome to this site! If you have any comments or suggestions on HONYU's products, feel free to contact us directly. We warmly invite new and old customers to contact us and visit our factory.
HONYU is a professional optical supplier in China with more than 20 years’ experience in Microscopes.
