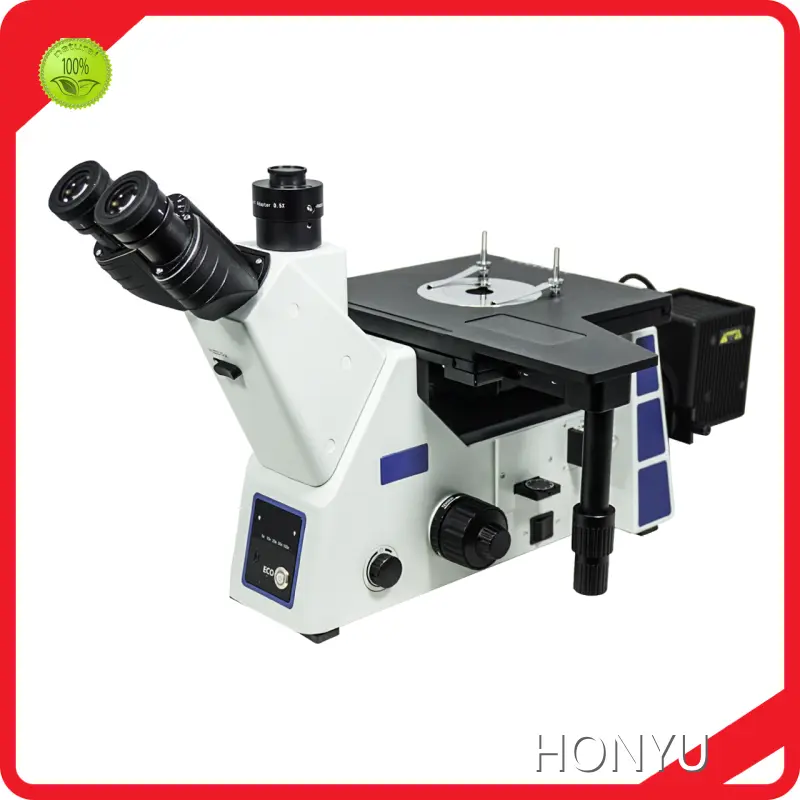

Reliableoptical Metallurgical Microscope for Dslr
Product details of the optical metallurgical microscope
Product Overview
Unique design ideas make optical metallurgical microscope more practical. By using the advanced testing equipment in the product, many quality problems of the product can be detected immediately, thus effectively improving the quality. Ningbo Haishu HONYU Opto-Electro Co., Ltd is perceived as a vibrant and engaged generators of optical metallurgical microscope.
Product Information
We value the quality of our products. And we strive for perfection in every detail of products. In this way, we guarantee the fine quality of our products.
Features
• Five Wide-field magnification settings: 50X to 500X
• Long working distance plan achromatic objectives
• Equipped with analyzer and polarizer
Specification
|
Optical system |
Infinity color correct optical system |
|
Viewing head |
45 degree inclined trinocular viewing head, 360 degree rotatable; interpupillary distance 50-75mm, binocular: trinocular=100:0 or 0:100 |
|
Eyepiece |
High eye point wide field plan eyepiece PL10X22mm, with adjustable diopter, reticle attachable |
|
Objective |
Long working distance bright & dark field plan achromatic metallurgical objectives 5X, 10X, 20X, 50X, (5-10-20X IS for DIC ) |
|
Nosepiece |
Inward quintuple bright field nosepiece (DIC slot), with built-in magnification sensor |
|
Frame |
Reflected frame low-position coaxial focusing system, coarse range 9mm (up 6.5mm, down 2.5mm), fine precision 0.002mm with upper limit and tension adjustment; with switch for bright and dark field; with variable field diaphragm and aperture |
|
diaphragm, both center adjustable; with slots for filters and polarizing kit; with light intensity indicator; with infrared induction; with magnification display |
|
|
Illumination |
External power adapter, input 100V-240V, output 15V13.4A, light intensity adjustable |
|
Stage |
Three layers rackless stage, size: 240mm (W) X 250mm (L), moving range: 50X 50mm; low-position handle knob |
|
Filters |
LBD filter |
|
Polarizing Kits |
Polarizer, |
|
360 degree rotatable analyzer, |
Optional Accessories
|
Eeypiece |
High eye point wide field plan eyepiece PL10X22mm, with adjustable diopter, reticle attachable |
|
Objective |
Long working distance plan achromatic metallurgical objectives 5X, 10X, 20X, 50X |
|
Long working distance bright & dark field plan achromatic metallurgical objectives100X |
|
|
Camera adapter |
0.35X, 0.5X, 0.65X, 1X focusing C-mount |
|
DIC Kits |
DIC attachment |
|
Filters |
Blue, Yellow, Green |
|
Polarizing Kits |
fixed analyzer, |
