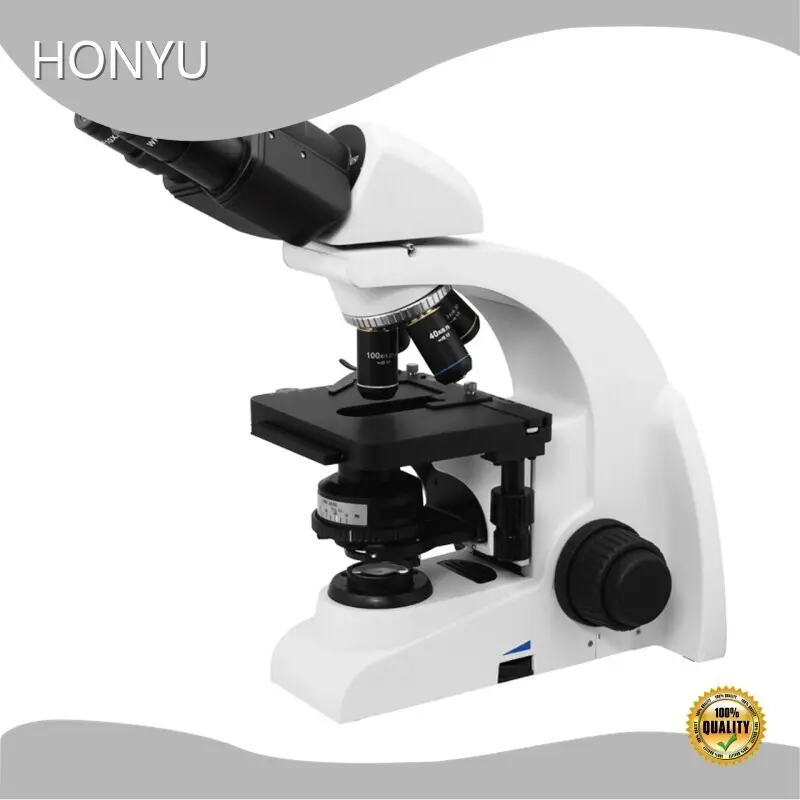

Reliable Compound Microscope Biology Latest Design for Dslr
Product details of the compound microscope biology
Quick Overview
Standard production: HONYU compound microscope biology is produced in line with production standards. These standards are up to both domestic and international standards and contribute to the fine craftsmanship of this product. Quality-focused: the product is a result of pursuing high quality. It is strictly inspected under the QC team who has the full right to take charge of the quality of the product. HONYU's compound microscope biology can be widely used in various fields. This product greatly meets customers' particular requirements with its outstanding characteristics.
Product Introduction
Compared with similar products, our compound microscope biology has the following major characteristics.
Features
• Adopting infinity optical system
• Equipped with infinity achromatic objectives
• Four wide-field magnification power: 40X, 100X, 400X, 1000X
• Coaxial coarse and fine focus system
Specification
|
Head |
Binocular, Interpupillary distance 52-75mm, 30°inclined, 360° rotatable, ±5 Diopter Adjustment |
|
Eyepiece |
WF10x/18mm, High Eye-point Up To 21mm |
|
Objective |
Infinity Achromatic Objective 4X |
|
Infinity Achromatic Objective10X |
|
|
Infinity Achromatic Objective40X(S) |
|
|
Infinity Achromatic Objective100X(S)/(Oil) |
|
|
Condensor |
Abbe N.A.1.25 With Iris Diaphragm And With Socket For Phase Contrast / Dark Field Slider, Centering Adjustable, Color-Coded Diaphragm Scale Marking Corresponded With The Objectives Of Different Powe |
|
Stage |
Double Layer Mechanical, 142mmX135mm, Range: 76x52mm Low Position, Right Hand Control, X-Y Coaxial Control Knob, Two Slides Holder |
|
Focusing system |
Low Positioned, Coaxial Coarse & Fine Focusing System With Tension Adjustment And Up-Limited, Coarse Knob Coarse 14mm/Rot, Fine 0.1mm/Rot, Minimum Reading 1μm On Left-Side Fine Knob, Moving Range 20mm |
|
Nosepiece |
Quadruple, Revolving Nosepiece |
|
Light |
Kohler Illuminator(No Field Diaphragm) |
|
Electrics for 6V20W Halogen |
|
|
Filter |
Blue Filter (φ32, No Blue Filter for LED) |
|
Bulbs |
6V20W Osram Halogen Bulb |
|
250V/3.15A Φ5X20 Fuse |
Optional Accessories
|
Head |
Binocular, Interpupillary distance 48-75mm, 30°inclined, 360° rotatable, ±5 Diopter Adjustment |
|
Eyepiece |
WF10X20mm Eyepieces |
|
WF16X13mm Eyepieces |
|
|
WF10X18mm Eyepiece (Point) |
|
|
WF10X20mm Eyepiece (Point) |
|
|
WF10X20mm Reticule Eyepiece |
|
|
WF10X18mm Reticule Eyepiece |
|
|
Objective |
Infinity Plan Achromatic Objective 4X |
|
Infinity Plan Achromatic Objective 10X |
|
|
Infinity Plan Achromatic Objective 20X(S) |
|
|
Infinity Plan Achromatic Objective 40X(S) |
|
|
Infinity Plan Achromatic Objective 60X(S) |
|
|
Infinity Plan Achromatic Objective 100X(S)/(Oil) |
|
|
Stage |
Double Layer Mechanical, Size:156mmX138mm, Range: 76x54mm Low Position, Right Hand Control, X-Y Coaxial Control Knob, Two Slides Holder |
|
Nosepiece |
Quintuple, Revolving Nosepiece |
|
Light |
Electrics for 3W LED(with Rechargeable Battery) |
|
Electrics for 3W LED |
|
|
LED Rechargeable Battery |
|
|
Reflected Mirror |
|
|
Filter |
Green Filter (φ32) |
|
Yellow Filter (φ32) |
|
|
Ground Grass (φ32) |
|
|
Polarizing Kits |
Polarizer |
|
Analyzer |
|
|
Bulbs |
3W LED Bulb |
