Comprehensive Microscope Solution Supplier for Biological and Industrial Inspection.
Professional Custom Microscope Price List
Company Advantages
· HONYU custom microscope is produced as per the industry specifications.
· The functionality of the product is tested repeatedly.
· Ningbo Haishu HONYU Opto-Electro Co., Ltd has formed stable sales market and ripe sales channel for custom microscope.
Features
• Five Wide-field magnification settings: 50X to 500X
• Long working distance plan achromatic objectives
• Equipped with analyzer and polarizer
Specification
|
Optical system |
Infinity color correct optical system |
|
Viewing head |
45 degree inclined trinocular viewing head, 360 degree rotatable; interpupillary distance 50-75mm, binocular: trinocular=100:0 or 0:100 |
|
Eyepiece |
High eye point wide field plan eyepiece PL10X22mm, with adjustable diopter, reticle attachable |
|
Objective |
Long working distance bright & dark field plan achromatic metallurgical objectives 5X, 10X, 20X, 50X, (5-10-20X IS for DIC ) |
|
Nosepiece |

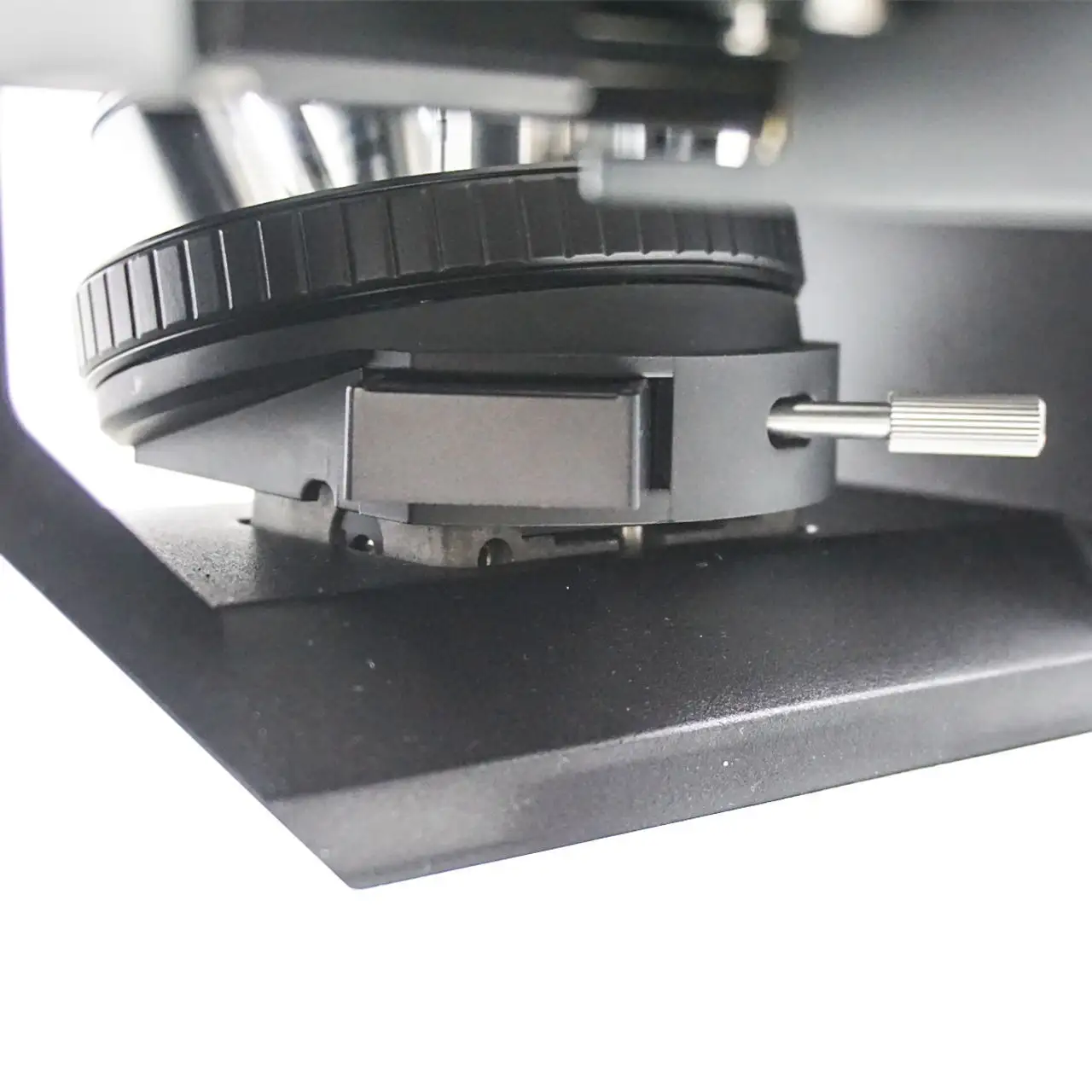

Inward quintuple bright field nosepiece (DIC slot), with built-in magnification sensor |
|
Frame |

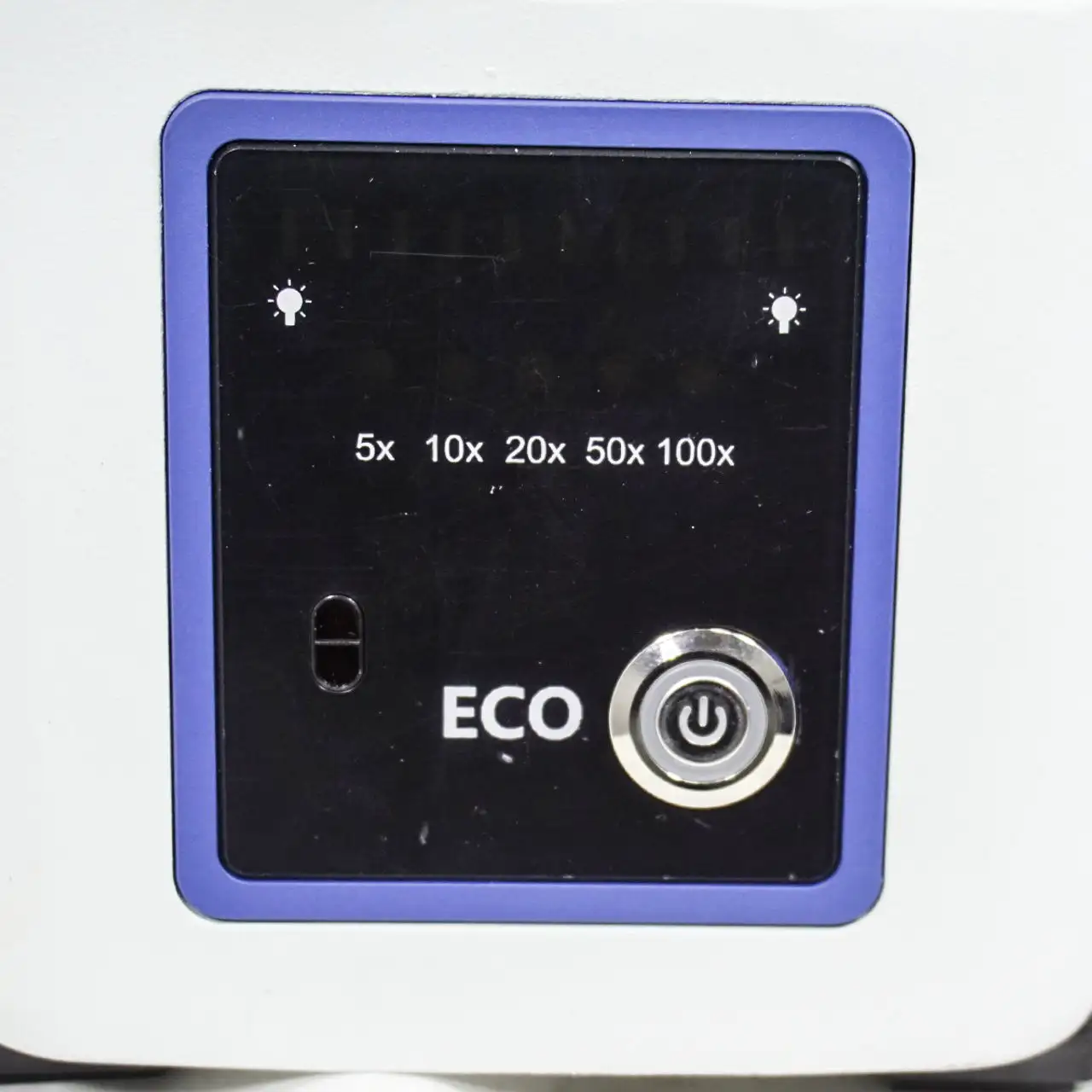

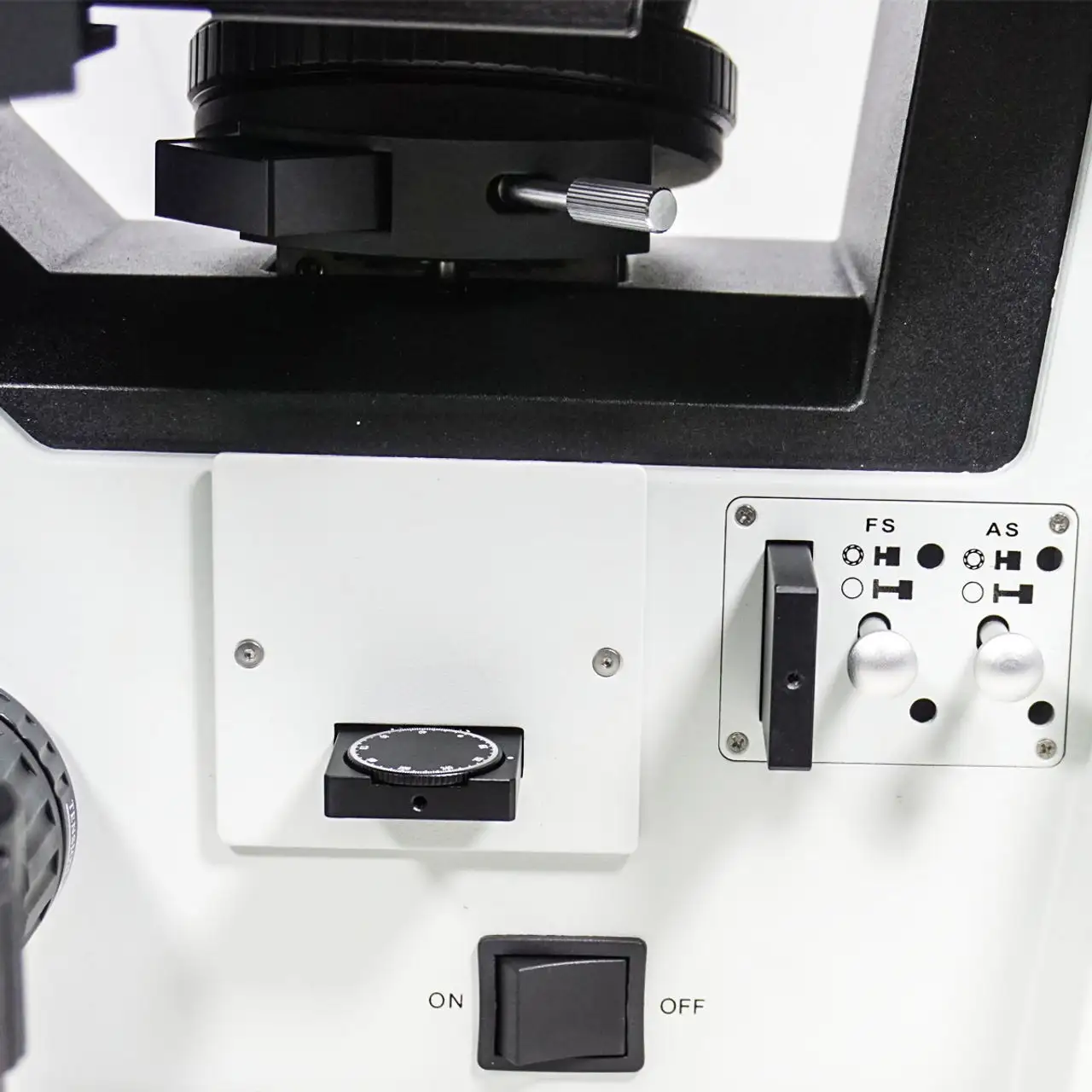

Reflected frame low-position coaxial focusing system, coarse range 9mm (up 6.5mm, down 2.5mm), fine precision 0.002mm with upper limit and tension adjustment; with switch for bright and dark field; with variable field diaphragm and aperture |
|
diaphragm, both center adjustable; with slots for filters and polarizing kit; with light intensity indicator; with infrared induction; with magnification display |
|
|
Illumination |
External power adapter, input 100V-240V, output 15V13.4A, light intensity adjustable |
|
Stage |
Three layers rackless stage, size: 240mm (W) X 250mm (L), moving range: 50X 50mm; low-position handle knob |
|
Filters |
LBD filter |
|
Polarizing Kits |
Polarizer, |
|
360 degree rotatable analyzer, |
Optional Accessories
|
Eeypiece |
High eye point wide field plan eyepiece PL10X22mm, with adjustable diopter, reticle attachable |
|
Objective |
Long working distance plan achromatic metallurgical objectives 5X, 10X, 20X, 50X |
|
Long working distance bright & dark field plan achromatic metallurgical objectives100X |
|
|
Camera adapter |
0.35X, 0.5X, 0.65X, 1X focusing C-mount |
|
DIC Kits |
DIC attachment |
|
Filters |
Blue, Yellow, Green |
|
Polarizing Kits |
fixed analyzer, |
products display
Company Features
· Ningbo Haishu HONYU Opto-Electro Co., Ltd is a market-recognized professional manufacturer. We offer a range of services, including custom microscope development, production, customization, and marketing.
· Our factory is equipped with a full set of imported equipment. Our company has advanced manufacturing technology and performs strict production process. We have been strictly developing environmentally-friendly custom microscope.
· We try to go green in all our business activities. We will use less power and water than conventional production methods, and recycle reusable materials to upgrade our packaging way.
Product Comparison
Compared with custom microscope of peers, HONYU's custom microscope has the following advantages.
Enterprise Advantages
HONYU has experienced professionals to provide a powerful force for high-quality products.
HONYU wholeheartedly provide quality services for customers at home and abroad, so as to achieve mutual benefit and win-win results.
Our company believes that all services are for customers and our motivation comes from customer's satisfaction. Besides, we create and share value together. Based on that, we are committed to promoting development for the industry.
Set up in HONYU has been leading in the industry through the development for years.
HONYU's Biological Microscope,Stereo Microscope,Metallurgical Microscope,Operation Microscope,Comparison Microscope,Handheld Digital Microscope,Microscope Accessories gain a relatively large market share in China. They are also exported to Africa, Southeast Asia, and other countries and regions.
HONYU is a professional optical supplier in China with more than 20 years’ experience in Microscopes.
