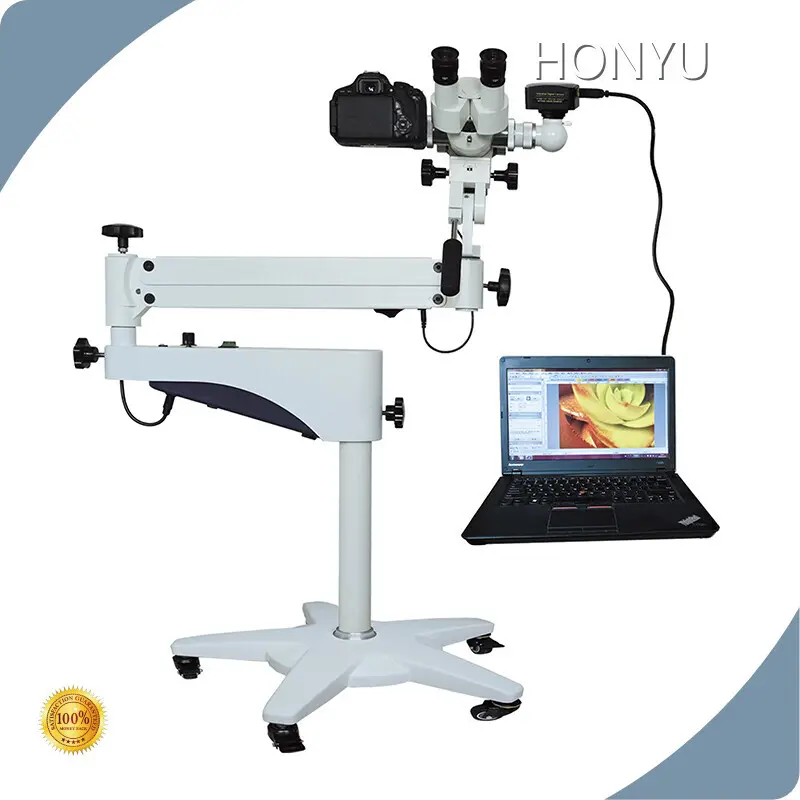

Product details of the binocular surgical microscope
Product Overview
HONYU binocular surgical microscope is designed with a distinctive style. The product is unbeatable in terms of performance, longevity, and practicality. The product is popular in domestic and foreign market and has remarkable market potential.
Product Introduction
In the production process of binocular surgical microscope, we carefully polish the details, so as to strive for perfect quality.
Features
• Five magnification levels: 2.7X, 4.4X, 6.6X, 10X, 16.6X
• Equipped with long working distance objective
• Brightness adjustable LED coaxial illumination
• Movable base bringing flexible examination
Specification
|
Observation angle |
45º tilted binocular observation unit |
|
Eyepiece |
16X |
|
Interpupillary distance |
50mm-80mm |
|
Diopter |
±5D |
|
Focal length of objective |
F=300mm(M58x0.75) |
|
Magnification changer |
5-step magnification change: 0.4X, 0.66X, 1X, 1.5X, 2.5X |
|
Total magnification |
2.7X, 4.4X, 6.6X, 10X, 16.6X |
|
Linear field |
90mm, 55mm, 37mm, 24mm, 15mm |
|
Beamsplitter |
50:50:00 |
|
CCD adapter |
For C-mount 1/3" cameras |
|
Fine focusing distance |
20mm |
|
Balance arm |
Counterweight adjustable |
|
Illumination system |
Coaxial illumination，brightness adjustable |
|
10W LED lamp |
|
|
Brightness |
>30000lux |
|
Filter |
Built-in Green and Blue |
|
Stand |
Short column fixed on the five-star base |
|
Optional accessories |
Demonstrator(assistant microscope), Camera (HDMI camera, VGA camera, USB camera), Photo adapter, LCD screen, Objective (F=230mm & F=280mm) |
Optical Parameter
|
Focal length of objective |
F=300mm |
F=230mm(optional) |
F=280mm(optional) |
|||||||||||||
|
Magnification on handwheel |
2.5x |
1.5x |
1x |
0.66x |
0.4x |
2.5x |
1.5x |
1x |
0.66x |
0.4x |
2.5x |
1.5x |
1x |
0.66x |
0.4x |
|
|
Total magnification |
16.6x |
10x |
6.6x |
4.4x |
2.7x |
21.7x |
13.2x |
8.7x |
5.7x |
3.5x |
17.8x |
10.8x |
7.1x |
4.7x |
2.9x |
|
|
Linear field (mm) |
15 |
24 |
37 |
55 |
90 |
11 |
18 |
28 |
42 |
62 |
14 |
22 |
35 |
54 |
84 |
|
|
Resolution (LP/mm) |
78 |
61 |
40 |
30 |
21 |
86 |
68 |
52 |
35 |
27 |
80 |
63 |
42 |
31 |
22 |
|
