Comprehensive Microscope Solution Supplier for Biological and Industrial Inspection.

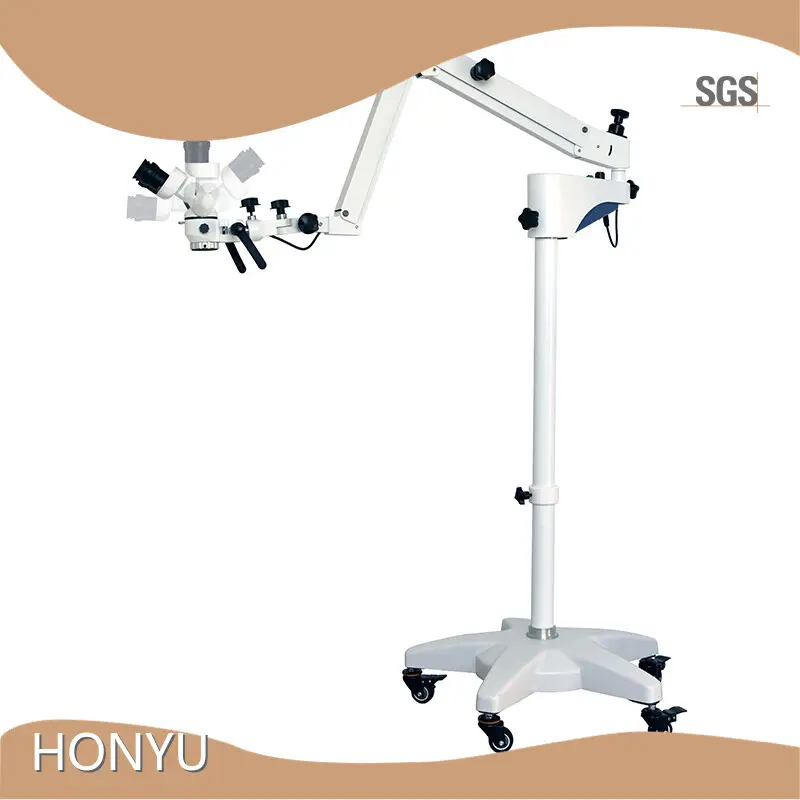

Praiseneurosurgery Microscope Manufacturer for Dslr
Features
• 3-step magnification adjustment: 0.6x, 1.0x, 1.6x
• Two objectives with different focusing distance
• High brightness 10W LED illumination
• Total Magnification: 3x-16x (with Optional objective)
Specification
|
Magnification of binocular |
8X |
|
Binocular |
0-180° inclinable |
|
Magnification of eyepiece |
12.5X |
|
Interpupillary distance |
50mm-80mm |
|
Diopter adjustable |
±7D |
|
Focal length of objective |
F=200mm and F=250mm two objectives |
|
Magnification changer |
3-step, 0.6X, 1X, 1.6X |
|
Total magnification |
4.8X, 8X, 12.8X, 6X, 10X, 16X |
|
Linear field |
50mm, 30mm, 19mm, 40mm, 24mm, 15mm |
|
Fine focusing distance |
10mm |
|
Illumination |
Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination>40000lx |
|
Filter |
Build-in green and yellow filters |
|
Balancing arm |
2-part arm with universal joints, counterweight adjustable and can be locked |
|
Floor stand |
2-part column fitted on the five-star base with casters |
|
Power supply |
AC100V-AC240V |
Optical Parameter
|
Magnification of eyepiece |
12.5X/20mm |
|||||||||||
|
Focal length of objective |
F=200mm |
F=250mm |
F=300mm(optional) |
F=400mm(optional) |
||||||||
|
Magnification on handwheel |
1.6X |
1X |
0.6X |
1.6X |
1X |
0.6X |
1.6X |
1X |
0.6X |
1.6X |
1X |
0.6X |
|
Total magnification |
16X |
10X |
6X |
12.8X |
8X |
4.8X |
10.7X |
6.7X |
4X |
8X |
5X |
3X |
|
Linear field (mm) |
15 |
24 |
40 |
19 |
30 |
50 |
23 |
37 |
60 |
30 |
48 |
80 |
|
Diameter of spot (mm) |
57 |
71 |
86 |
113 |
||||||||
|
Exit pupil distance (mm) |
20 |
|||||||||||
Optional accessories
|
Objectives |
F=200mm, F=300mm, F=200-300mm zooming objective |
|
Other accessory |
Beamsplitter, CCD adapter, DLSR camera adapter, wall-mount, table clamp |
products display
Company Advantages
· The design of HONYU neurosurgery microscope manufacturer complies with the industrial design concepts.
· The product has obtained international quality certificates and meets the quality standard of many countries and regions.
· Ningbo Haishu HONYU Opto-Electro Co., Ltd's dedicated team strives to be the best in the industry.
Company Features
· The massive marketing network of Ningbo Haishu HONYU Opto-Electro Co., Ltd means that the company is one of the largest neurosurgery microscope manufacturer suppliers in China.
· HONYU is capable of manufacturing neurosurgery microscope manufacturer with high quality.
· We are fortunate to have built a tremendous team that works well together and cares about our company as much as we do. Get quote!
Application of the Product
The neurosurgery microscope manufacturer of HONYU can be used in many industries.
According to different needs of customers, HONYU is capable of providing reasonable, comprehensive and optimal solutions for customers.
HONYU is a professional optical supplier in China with more than 20 years’ experience in Microscopes.
