Ophthalmic Surgical Microscope Manufacturers Free Design for Sale
Features
• Infinity Corrected Optical System design can correct chromatic aberration
• Four Wide-field magnification settings: 40X, 100X, 400X, 1000X
• Equipped with Kohler N.A.1.25 condenser with Socket for Phase Contrast and Dark Field Slides
Specification
|
Optical system |
Color corrected infinity optical system |
|
Head |
Binocular head, inclined at 30 degree, 360 degree swiveling, Interpupillary Distance 54-75mm |
|
Eyepiece |
PL10X/20mm, Wide Field, High Eye Point, Diopter Adjustable +/-5 Degree |
|
Objective |
OIP infinity plan achromatic objective 4X/0.06 WD=7.18mm |
|
OIP infinity plan achromatic objective 10X/0.25 WD=4.70mm |
|
|
OIP infinity plan achromatic objective 40X/0.65 WD=0.72mm |
|
|
OIP infinity plan achromatic objective 100X /1.25 WD=0.15mm |
|
|
Nosepiece |
Backward Quadruple |
|
Condenser |
Kohler N.A. 1.25, with Socket for Phase Contrast and Dark Field Slides, Center adjustable |
|
Illumination |
Wide range of input: 100V~240V; 3W high brightness LED, brightness adjustable, Center Fixed |
|
Stage |
Double layer mechanical stage with damping clips, 150x140mm in size, traveling range: 76x50mm |
|
Focusing |
Coaxial focus system with tension adjustment, with up-limited. Coarse Focusing Range: 30mm |
|
Packing Info |
Carton dimension 58x56x28cm (Chargeable weight about 18kgs by express carrier ), Gross weight 12kgs |
Optional Accessories
|
Head |
Trinocular, 30° Inclined, Interpupillary Distance 54-75mm |
|
Eyepiece |
PL10X/22mm, Wide Field, High Eye Point, Diopter Adjustable +/-5 Degree |
|
Objective |
Infinity Plan Achromatic 20X/0.40mm |
|
Nosepiece |
Backward Quintuple |
|
Filter |
Blue, 45mm in diameter |
|
Yellow,45mm in diameter |
|
|
Green, 45mm in diameter |
|
|
Neutral, 45mm in diameter |
|
|
Adapter |
C-Mount 1.0X, Focus Adjustable |
|
C-Mount 0.5X, Focus Adjustable , for 1/2″CCD |
|
|
C-Mount 0.35X, Focus Adjustable, for 1/3″CCD |
|
|
Photo Adapter with PK or MD mount, with 3.2X Photo Eyepiece |
|
|
Dark Field Slider |
Dark Field Slider for 4X~40X Objective |
|
Polarizing Kit |
Polarizer |
|
Analyzer |
|
|
Phase Contrast Accessory |
Centering Telescope, 30mm in diameter |
|
Phase Contrast Slide, for 10X, 40X Infinity Objective |
|
|
Phase Contrast Slide, for 20X,100X Infinity Objective |
|
|
N.A.1.25 Kohler Illumination Turnplate Phase Contrast Condenser Set, For 10X, 20X, 40X, 100X Phase Contrast Observation |
|
|
N.A.1.25 Kohler IlluminationTurnplate Phase Contrast Condenser withDark Field Setfor 10X,40X,100X Phase Contrast Observation and Dark Filed Observation |
|
|
Infinity Plan Phase Contrast Objective 10X/0.25, W.D.=4.70mm (For BF or DF) |
|
|
Infinity Plan Phase Contrast Objective 20X/0.50, W.D.=1.75mm (For BF) |
|
|
Infinity Plan Phase Contrast Objective 40X/0.65, W.D.=0.72mm (For BF or DF) |
|
|
Infinity Plan Phase Contrast Objective 100X/1.25, W.D.=0.15mm (For BF) |
|
|
Bright FieldTurnplate Phase Contrast Kit |
This Kit Includes: |
|
--N.A.1.25 Kohler Illumination Turnplate Phase Contrast Condense Set, For 10X, 20X, 40X,100X Phase Contrast Observation |
|
|
--Infinity Plan Phase Contrast Objective 10X/0.25, W.D.=4.70mm |
|
|
--Infinity Plan Phase Contrast Objective 20X/0.50, W.D.=1.75mm |
|
|
--Infinity Plan Phase Contrast Objective 40X/0.65, W.D.=0.72mm |
|
|
--Infinity Plan Phase Contrast Objective 100X/1.25, W.D.=0.15mm |
|
|
--Centering Telescope, 30mm in diameter |
|
|
Dark FieldTurnplate Phase Contrast Kit |
This Kit Includes: |
|
--N.A.1.25 Kohler IlluminationTurnplate Phase Contrast Condenser withDark Field Holefor10X, 40X, 100XPhase Contrast Observation and Dark Filed Observation |
|
|
--Infinity Plan Phase Contrast Objective 10X/0.25, W.D.=4.70mm |
|
|
--Infinity Plan Phase Contrast Objective 40X/0.65, W.D.=0.72mm |
|
|
--Infinity Plan Phase Contrast Objective 100X/1.25, W.D.=0.15mm |
|
|
--Centering Telescope, 30mm in diameter |
|
|
Note: BF = Bright Field. DF=Dark Field |
|

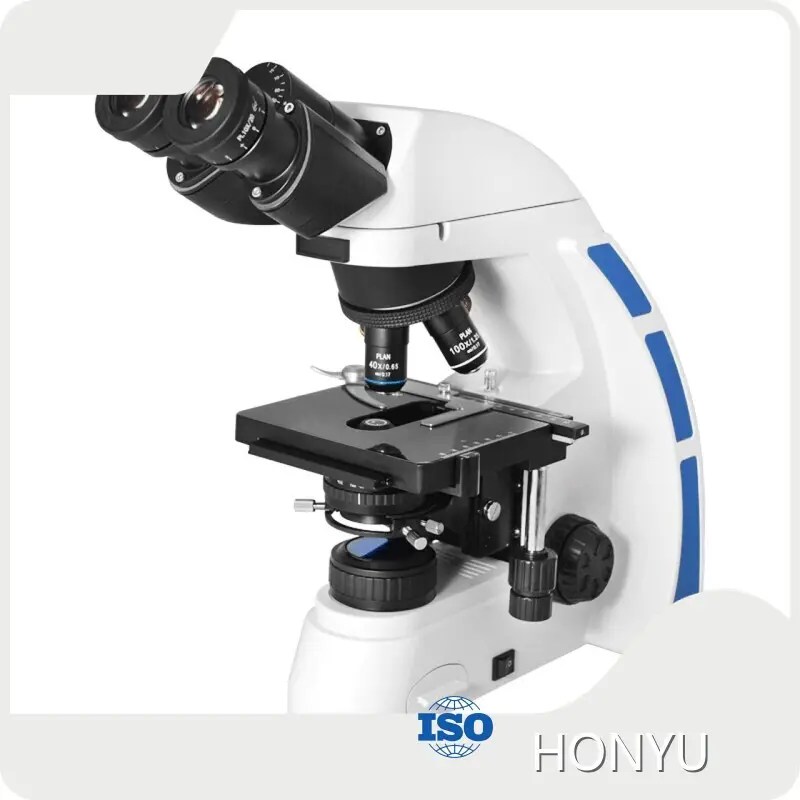

products display
Company Advantages
· The design of HONYU ophthalmic surgical microscope manufacturers is desirable and appealing.
· The product has the advantages of long and stable performance and long service life.
· High commercial value makes the product have a wide range of market applications.
Company Features
· Ningbo Haishu HONYU Opto-Electro Co., Ltd has a lot of experiences in developing and manufacturing ophthalmic surgical microscope manufacturers. We are reputable for having strong production capability.
· We have introduced some advanced production facilities. These facilities are equipped with modern technologies, which can ensure greater productivity and more flexible delivery times.
· Continuously making a breakthrough will make a great contribution to the development of HONYU. Welcome to visit our factory!
Application of the Product
HONYU's ophthalmic surgical microscope manufacturers is widely applicable in the industry.
We are willing to understand the real needs of our customers. Then, we will provide the best solutions to their needs.
HONYU is a professional optical supplier in China with more than 20 years’ experience in Microscopes.
