Comprehensive Microscope Solution Supplier for Biological and Industrial Inspection.
Oem & Odm Operating Microscope Ophthalmology Price Operating Microscope Ophthalmology Price Company
Company Advantages
· operating microscope ophthalmology price created by Ningbo Haishu HONYU Opto-Electro Co., Ltd is cost-effective quality products.
· All of our operating microscope ophthalmology price is of good enough quality.
· Ningbo Haishu HONYU Opto-Electro Co., Ltd is a high-tech enterprise integrating research and development, production, marketing and service of operating microscope ophthalmology price together.
Features
• 6-steps manual magnification adjustment: 0.3x, 0.5x, 0.8x, 1.2x, 2.0x, 3.0x
• LED light source providing higher brightness
• Wide range of objective focus distance: 230-260 mm
• Binocular 0-180 degree inclined (Optional)
Specification
|
Head |
|
|
Binoculars |
45 ° inclined, f’=160 mm---For OPR.46.L100DP Dental Surgery scope |
|
Straight, f’=160 mm---For OPR.46.L100EP ENT surgery microscope |
|
|
Objective |
f’=230-260 mm |
|
Eyepiece |
12.5x, high-eyepoint, wide angular |
|
Diopter adjustment |
-5D to + 5D |
|
Magnification changer |
6 steps: 0.3x, 0.5x, 0.8x, 1.2x, 2.0x, 3.0x |
|
Total magnifications |
2.4x, 4.0x, 6.0x, 9.6x, 16x, 24x |
|
Visual field |
78 mm-8.5mm |
|
Interpupillary distance |
55mm to 75 mm |
|
Working distance |
230-260 mm |
|
Illumination |
|
|
Type |
Coaxial illumination by optical light-guide system |
|
Cold light source |
LED lamp, 3V/10W |
|
Illumination control |
3steps |
|
Field of illumination |
65mm |
|
Power supply |
AC 90-240V |
|
Light intensity |
25,000 LUX |
|
Filter |
Yellow, green, blue |
|
Arm, Stand |
|
|
Type |
Pantographic arm, floor stand |
|
Range |
1250mm |
|
Rotation angle |
270 degree |
|
Elevation stroke |
400 mm |
|
Base size |
600 mm x 600 mm |
|
Weight |
90 kg |
Optional Accessories
|
Binoculars |
0-180 degree inclined binoculars f’=170mm |
|
Beam splitter |
Dismountable |
|
CCD Adapter |
With iris diaphragm, f’=65 mm |

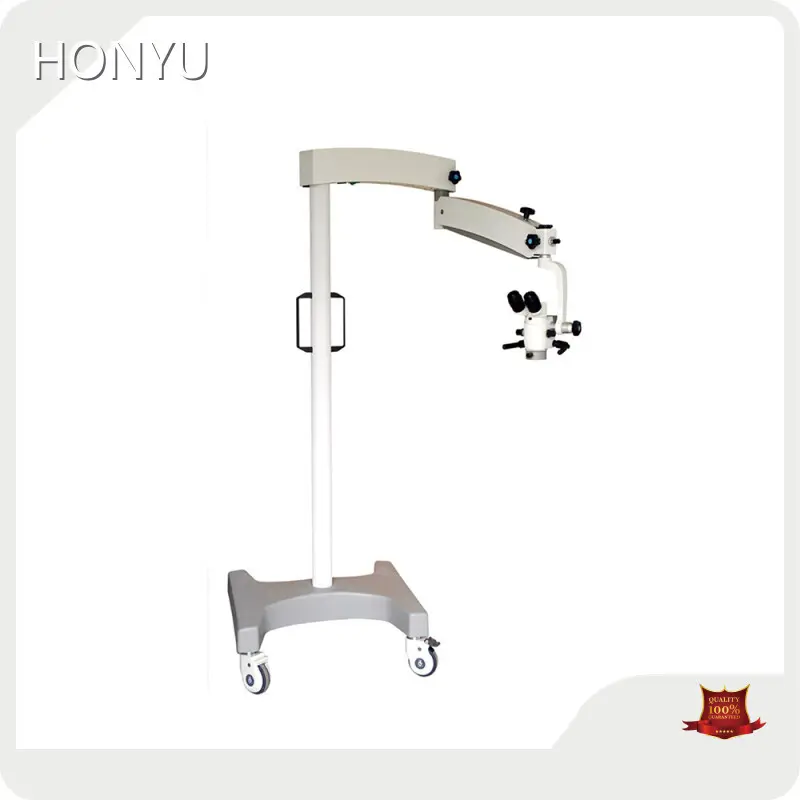

products display
Company Features
· With the assistance from our trusted customers, HONYU has gained greater reputation on the operating microscope ophthalmology price market.
· Our factory is strategically located. It is close to the industrial zone as well as the local port and the airport, providing cost-effective transportation services around the world. Our factory is well-equipped. It has a broad range of state-of-the-art machinery which are run by experienced, skilled workers and fed by a reliable raw material supply chain that is as tested and proven as our product.
· HONYU has always been driven to seek the sustainable development of company. Inquiry!
Application of the Product
Multiple in function and wide in application, operating microscope ophthalmology price can be used in many industries and fields.
With a focus on customers, HONYU analyzes problems from the perspective of customers. And we provide customers with comprehensive, professional and excellent solutions.
HONYU is a professional optical supplier in China with more than 20 years’ experience in Microscopes.
