Comprehensive Microscope Solution Supplier for Biological and Industrial Inspection.
New Educational Microscope Manufacturer for Sale
Product details of the educational microscope manufacturer
Product Introduction
The effective control of costs makes the price of educational microscope manufacturer has an advantage in the industry. With the implementation of the quality inspection system, all defects of the products are eliminated completely. Ningbo Haishu HONYU Opto-Electro Co., Ltd can accept any feasible request for package from our customers. .
Features
• Five Wide-field magnification settings: 50X to 500X
• Long working distance plan achromatic objectives
• Equipped with analyzer and polarizer
Specification
|
Eyepiece |
High Eye-point Wide Field Plan Eyepiece PL10X/22mm |
● |
|
High Eye-point Wide Field Plan Eyepiece PL10X/22mm,with reticle |
Optional |
|
|
High Eye-point Wide Field Plan Eyepiece PL10X/22mm，Diopter adjustable |
Optional |
|
|
High Eye-point Wide Field Plan Eyepiece PL15X/16mm |
Optional |
|
|
Head |
Compensation Trinocular Head |
● |
|
30° Inclined, 360° Rotatable, Interpupillary Distance 54-75mm, Light spliting ratio: 100:0 or 50:50 ,Diopter +/-5 Adjustable. |
|
|
|
Compensation Binocular Head |
Optional |
|
|
30° Inclined, 360° Rotatable, Interpupillary Distance 54-75mm,,Diopter +/-5 Adjustable. |
|
|
|
Objective |
LWD Infinity Plan Achromatic Metallurgical Objectives 5X LMPL5X/0.15 WD10.8MM |
● |
|
LWD Infinity Plan Achromatic Metallurgical Objectives 10X LMPL10X/0.3 WD10MM |
● |
|
|
LWD Infinity Plan Achromatic Metallurgical Objectives 20X LMPL20X/0.45 WD4MM |
● |
|
|
LWD Infinity Plan Achromatic Metallurgical Objectives 50X LMPL50X/0.55 WD7.9MM |
● |
|
|
LWD Infinity Plan Achromatic Metallurgical Objectives 100X LMPL100X/0.8 WD2.1MM |
Optional |
|
|
Nosepiece |
Back-Forward, 5 Holes Revolving Nosepiece, Inward |
● |
|
Stage |
For Transmit & Reflect Light, |
● |
|
--Double Layer Mechanical Stage 175x145mm, Moving Range 76*42mm, X/Y Moving Coaxial Adjustment With Glass Plate, |
|
|
|
--Coase Moving range:28mm; Max Sample height:28mm, Division:0.002mm |
|
|
|
--with Tension adjustment loc,Top limit Kit. |
|
|
|
For Reflect Light, |
|
|
|
--Double Layer Mechanical Stage 175x145mm, Moving Range 76*42mm, X/Y Moving Coaxial Adjustment |
Optional |
|
|
With Metal Plate |
|
|
|
--Coase Moving range:28mm; Max Sample height: 78mm, Division:0.002mm |
|
|
|
Light Source |
Reflected Light, Lamp House With Single 5W LED, Warm Color, Koehler Illuminator WIth Oblique Light Device, Center Adjustable Field And Aperture Diaphragm , |
● |
|
Universal Voltage: 100-240V |
|
|
|
Transmitted Light, Lamp House With Single 5W LED, Warm Color |
● |
|
|
Universal Voltage: 100-240V |
|
|
|
Condenser |
N.A. 0.9 Swing-out Achromatic Condenser For Transmit Light, With Center Adjustable Aperture Iris Diaphragm |
● |
|
Power Voltage |
Wide Range Voltage 100~240V AC 50/60Hz |
● |
|
IF Filter |
Blue IF Filter ,(for reflection):≤480nm |
Optional |
|
Green IF Filter ,(for reflection):520-570nm |
Optional |
|
|
Red IF Filter ,(for reflection):630-750nm |
Optional |
|
|
Natural IF Filter, ,(for reflection) |
Optional |
|
|
Filter |
Yellow Filter（?45） |
Optional |
|
Green Filter（?45） |
Optional |
|
|
Blue Filter（?45） |
Optional |
|
|
Naturel Filter（?45） |
Optional |
|
|
Polarizing kits |
30 Polarizer for reflection) |
Optional |
|
40 Polarizer (for transmitted) |
Optional |
|
|
360° Rrotatable,Can Be Out Of Light Path. |
Optional |
|
|
CCD Adapter |
1XCCD adapter ,adjustable |
Optional |
|
2/3CCD adapter, adjustable |
Optional |
|
|
1/2C CCD adapter, adjustable |
Optional |

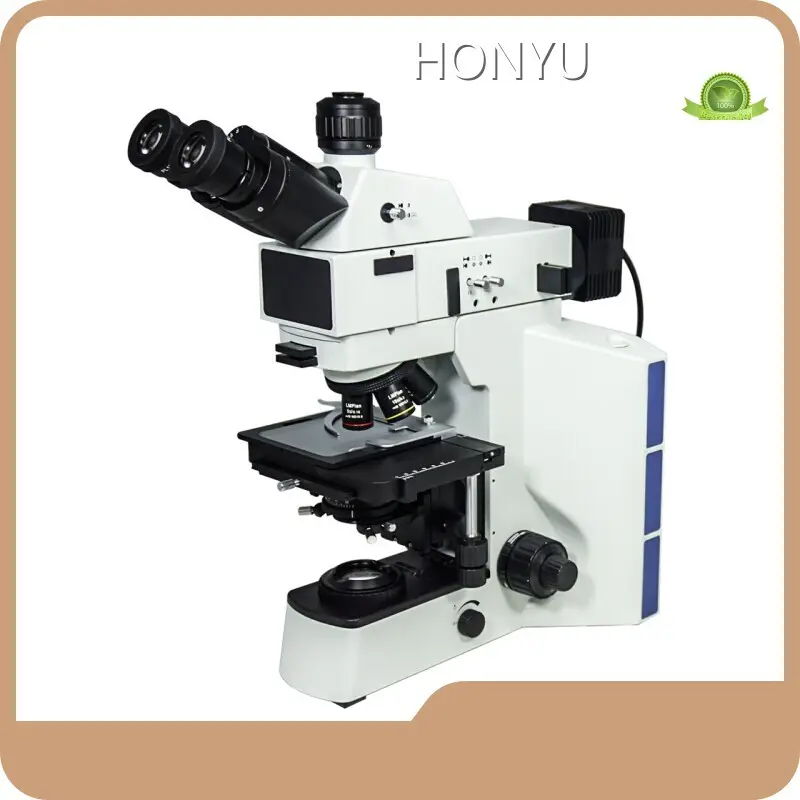

products display
Company Feature
• Our company has a backbone team with good reputation in the industry, proficient in business and strong operation ability.
• Our products are mainly sold to major cities in China and exported to countries and regions such as Asia, Europe and Africa.
• During the development for years, HONYU has made outstanding achievements and has taken an advantageous position in the industry.
HONYU runs its business in good faith and we believe in small profits but quick turnover. We will hold promotions in return for new and old customers from time to time. We provide better discounts for larger-quantity order. What are you waiting for? Contact us for more details!
HONYU is a professional optical supplier in China with more than 20 years’ experience in Microscopes.
