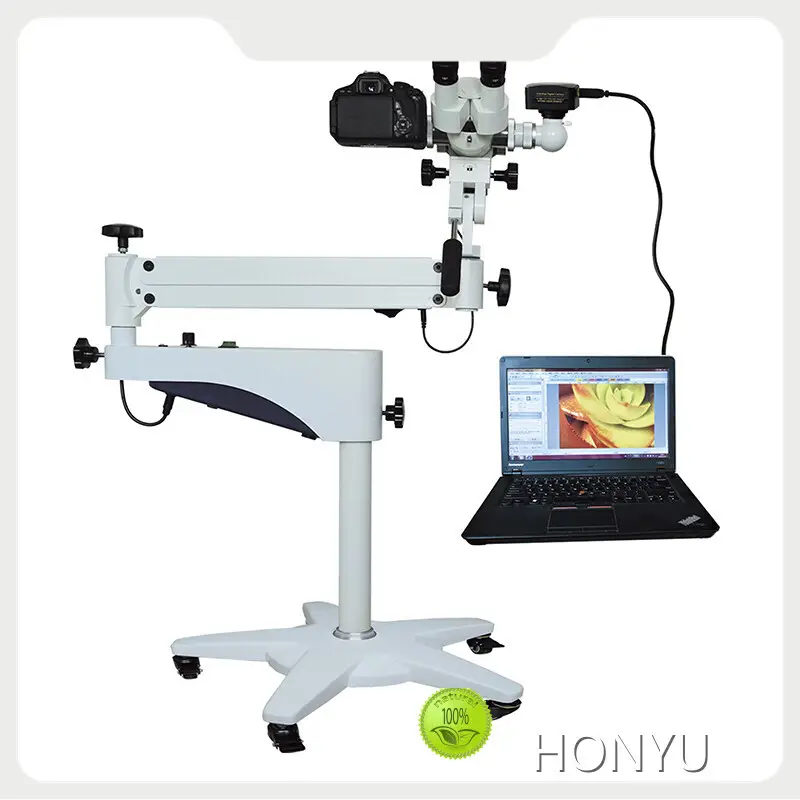

Microscope Neurosurgery - for Dslr - HONYU
Product details of the microscope neurosurgery
Quick Overview
HONYU microscope neurosurgery is manufactured under standardized production conditions. In its production, we attach great importance to reliability and quality. microscope neurosurgery developed and produced by our company can be widely used in various industries and professional fields. Ningbo Haishu HONYU Opto-Electro Co., Ltd provides customers with transparency throughout the entire process.
Product Introduction
Choose HONYU's microscope neurosurgery for the following reasons.
Features
• Five magnification levels: 2.7X, 4.4X, 6.6X, 10X, 16.6X
• Equipped with long working distance objective
• Brightness adjustable LED coaxial illumination
• Movable base bringing flexible examination
Specification
|
Observation angle |
45º tilted binocular observation unit |
|
Eyepiece |
16X |
|
Interpupillary distance |
50mm-80mm |
|
Diopter |
±5D |
|
Focal length of objective |
F=300mm(M58x0.75) |
|
Magnification changer |
5-step magnification change: 0.4X, 0.66X, 1X, 1.5X, 2.5X |
|
Total magnification |
2.7X, 4.4X, 6.6X, 10X, 16.6X |
|
Linear field |
90mm, 55mm, 37mm, 24mm, 15mm |
|
Beamsplitter |
50:50:00 |
|
CCD adapter |
For C-mount 1/3" cameras |
|
Fine focusing distance |
20mm |
|
Balance arm |
Counterweight adjustable |
|
Illumination system |
Coaxial illumination，brightness adjustable |
|
10W LED lamp |
|
|
Brightness |
>30000lux |
|
Filter |
Built-in Green and Blue |
|
Stand |
Short column fixed on the five-star base |
|
Optional accessories |
Demonstrator(assistant microscope), Camera (HDMI camera, VGA camera, USB camera), Photo adapter, LCD screen, Objective (F=230mm & F=280mm) |
Optical Parameter
|
Focal length of objective |
F=300mm |
F=230mm(optional) |
F=280mm(optional) |
|||||||||||||
|
Magnification on handwheel |
2.5x |
1.5x |
1x |
0.66x |
0.4x |
2.5x |
1.5x |
1x |
0.66x |
0.4x |
2.5x |
1.5x |
1x |
0.66x |
0.4x |
|
|
Total magnification |
16.6x |
10x |
6.6x |
4.4x |
2.7x |
21.7x |
13.2x |
8.7x |
5.7x |
3.5x |
17.8x |
10.8x |
7.1x |
4.7x |
2.9x |
|
|
Linear field (mm) |
15 |
24 |
37 |
55 |
90 |
11 |
18 |
28 |
42 |
62 |
14 |
22 |
35 |
54 |
84 |
|
|
Resolution (LP/mm) |
78 |
61 |
40 |
30 |
21 |
86 |
68 |
52 |
35 |
27 |
80 |
63 |
42 |
31 |
22 |
|
products display
