Comprehensive Microscope Solution Supplier for Biological and Industrial Inspection.

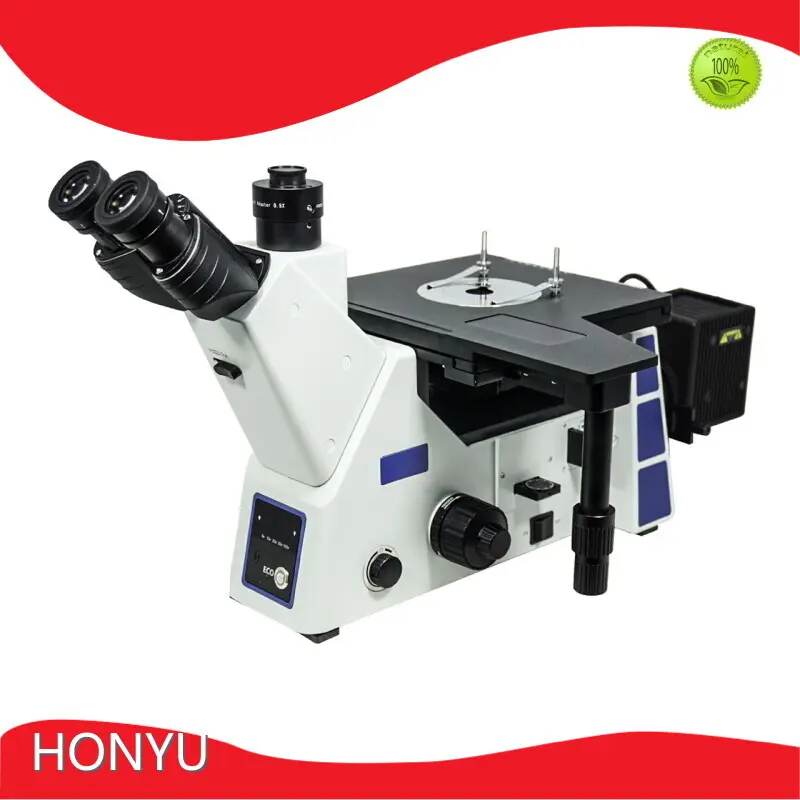

Microscope Manufacturer Factory
Company Advantages
· HONYU microscope manufacturer is produced with the latest technology that is well accepted in the industry.
· The product is superior in performance, durability, and usability.
· The product has been sold to the overseas market for and has been well received by customers.
Features
• Five Wide-field magnification settings: 50X to 500X
• Long working distance plan achromatic objectives
• Equipped with analyzer and polarizer
Specification
|
Optical system |
Infinity color correct optical system |
|
Viewing head |
45 degree inclined trinocular viewing head, 360 degree rotatable; interpupillary distance 50-75mm, binocular: trinocular=100:0 or 0:100 |
|
Eyepiece |
High eye point wide field plan eyepiece PL10X22mm, with adjustable diopter, reticle attachable |
|
Objective |
Long working distance bright & dark field plan achromatic metallurgical objectives 5X, 10X, 20X, 50X, (5-10-20X IS for DIC ) |
|
Nosepiece |
Inward quintuple bright field nosepiece (DIC slot), with built-in magnification sensor |
|
Frame |
Reflected frame low-position coaxial focusing system, coarse range 9mm (up 6.5mm, down 2.5mm), fine precision 0.002mm with upper limit and tension adjustment; with switch for bright and dark field; with variable field diaphragm and aperture |
|
diaphragm, both center adjustable; with slots for filters and polarizing kit; with light intensity indicator; with infrared induction; with magnification display |
|
|
Illumination |
External power adapter, input 100V-240V, output 15V13.4A, light intensity adjustable |
|
Stage |
Three layers rackless stage, size: 240mm (W) X 250mm (L), moving range: 50X 50mm; low-position handle knob |
|
Filters |
LBD filter |
|
Polarizing Kits |
Polarizer, |
|
360 degree rotatable analyzer, |
Optional Accessories
|
Eeypiece |
High eye point wide field plan eyepiece PL10X22mm, with adjustable diopter, reticle attachable |
|
Objective |
Long working distance plan achromatic metallurgical objectives 5X, 10X, 20X, 50X |
|
Long working distance bright & dark field plan achromatic metallurgical objectives100X |
|
|
Camera adapter |
0.35X, 0.5X, 0.65X, 1X focusing C-mount |
|
DIC Kits |
DIC attachment |
|
Filters |
Blue, Yellow, Green |
|
Polarizing Kits |
fixed analyzer, |
products display
Company Features
· Ningbo Haishu HONYU Opto-Electro Co., Ltd is a mainstay Chinese enterprise of microscope manufacturer.
· This company has an effective and professional customer service team. They are always meticulous in execution, no matter how small the task, and carry out effective communication at all times. We have already had a well-established marketing network in the microscope manufacturer industry. It involves both online and offline, and customers from various countries, including North America and Asia.
· Ningbo Haishu HONYU Opto-Electro Co., Ltd aims to create an world-known brand in future. Contact us!
Product Details
HONYU produces microscope manufacturer according to national standards, and the products are of good quality. The specific details are as follows.
Product Comparison
The microscope manufacturer produced by HONYU stands out in many similar products. And the specific advantages are as follows.
HONYU is a professional optical supplier in China with more than 20 years’ experience in Microscopes.
