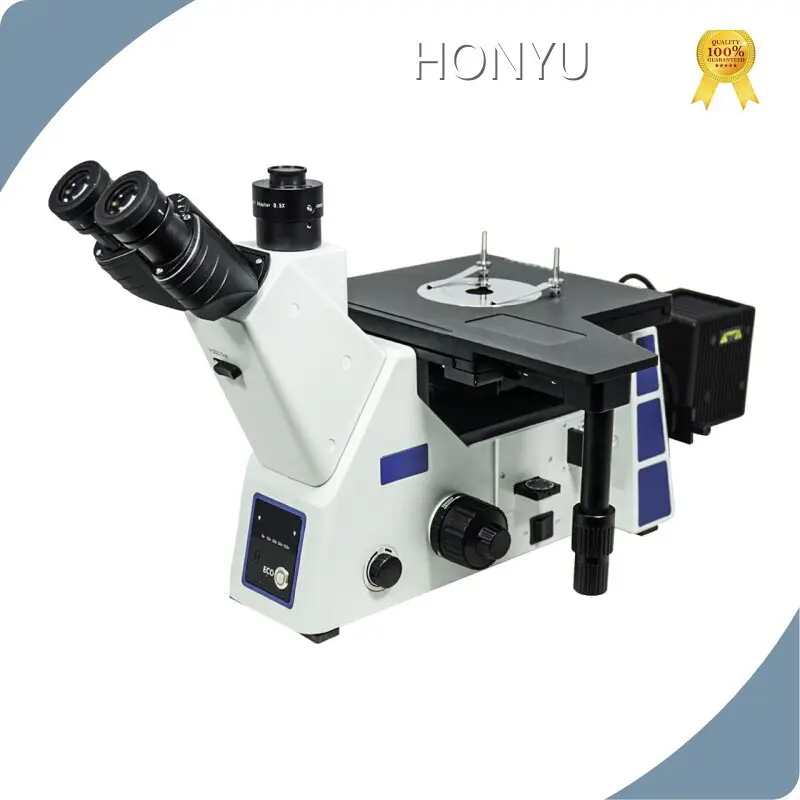

Metallurgical Microscope with Image Analyzer for Dslr Directly Sale
Company Advantages
· The design of HONYU metallurgical microscope with image analyzer is desirable and appealing.
· The quality of the product stays in line with current regulation and standard.
· Ningbo Haishu HONYU Opto-Electro Co., Ltd will further strengthen its customer service skills.
Features
• Five Wide-field magnification settings: 50X to 500X
• Long working distance plan achromatic objectives
• Equipped with analyzer and polarizer
Specification
|
Optical system |
Infinity color correct optical system |
|
Viewing head |
45 degree inclined trinocular viewing head, 360 degree rotatable; interpupillary distance 50-75mm, binocular: trinocular=100:0 or 0:100 |
|
Eyepiece |
High eye point wide field plan eyepiece PL10X22mm, with adjustable diopter, reticle attachable |
|
Objective |
Long working distance bright & dark field plan achromatic metallurgical objectives 5X, 10X, 20X, 50X, (5-10-20X IS for DIC ) |
|
Nosepiece |
Inward quintuple bright field nosepiece (DIC slot), with built-in magnification sensor |
|
Frame |
Reflected frame low-position coaxial focusing system, coarse range 9mm (up 6.5mm, down 2.5mm), fine precision 0.002mm with upper limit and tension adjustment; with switch for bright and dark field; with variable field diaphragm and aperture |
|
diaphragm, both center adjustable; with slots for filters and polarizing kit; with light intensity indicator; with infrared induction; with magnification display |
|
|
Illumination |
External power adapter, input 100V-240V, output 15V13.4A, light intensity adjustable |
|
Stage |
Three layers rackless stage, size: 240mm (W) X 250mm (L), moving range: 50X 50mm; low-position handle knob |
|
Filters |
LBD filter |
|
Polarizing Kits |
Polarizer, |
|
360 degree rotatable analyzer, |
Optional Accessories
|
Eeypiece |
High eye point wide field plan eyepiece PL10X22mm, with adjustable diopter, reticle attachable |
|
Objective |
Long working distance plan achromatic metallurgical objectives 5X, 10X, 20X, 50X |
|
Long working distance bright & dark field plan achromatic metallurgical objectives100X |
|
|
Camera adapter |
0.35X, 0.5X, 0.65X, 1X focusing C-mount |
|
DIC Kits |
DIC attachment |
|
Filters |
Blue, Yellow, Green |
|
Polarizing Kits |
fixed analyzer, |
products display
Company Features
· Ningbo Haishu HONYU Opto-Electro Co., Ltd has a large-scale factory that focuses on the production of metallurgical microscope with image analyzer.
· After devoting much effort to expanding markets, We have formed a strong customer base overseas. There are still many customers are looking forward to establishing business cooperations with us according to the statistics we have. We have an outstanding R&D team. Their creativity, profound insight into the market trend, and abundant industry know-how directly contribute to making us stand out in the metallurgical microscope with image analyzer market.
· Ningbo Haishu HONYU Opto-Electro Co., Ltd will maintain technological advantages and offer innovative and considerate solutions. Please contact.
Application of the Product
HONYU's metallurgical microscope with image analyzer can meet the different needs of customers.
Our company will modify and adjust the original solution according to the customer's needs. By doing so, we can provide solutions that best meet the customer's needs.
Product Comparison
Compared with products in the same category, metallurgical microscope with image analyzer we produce is equipped with the following advantages.
Enterprise Advantages
HONYU has a large number of outstanding professionals and an elite team that dares to go all out in work, laying a solid foundation for the company's development and growth.
HONYU is dedicated to providing considerate services based on customer demand.
With a focus on integrity and quality, HONYU strives for excellence in the business operation. We wholeheartedly open up new fields and develop new products. We also strive to provide quality services, so as to promote the industry to develop.
It has been years of development since our company's establishment in We have won the trust of our customers with sincere service attitude and established a good reputation and corporate image in the industry.
Our company has a perfect sales system. So our products are not only sold well in various provinces, cities and autonomous regions in China, but also exported to different countries and regions overseas.
HONYU is a professional optical supplier in China with more than 20 years’ experience in Microscopes.
