Features
• Adopting UCIS Infinity Independent Achromatic Optical System
• Four Wide-field magnification settings: 40X, 100X, 400X, 1000X
• High cost performance with high quality accessories
• CE Approved and Manufactured Under ISO 9001 Quality Control Standard
Specification
|

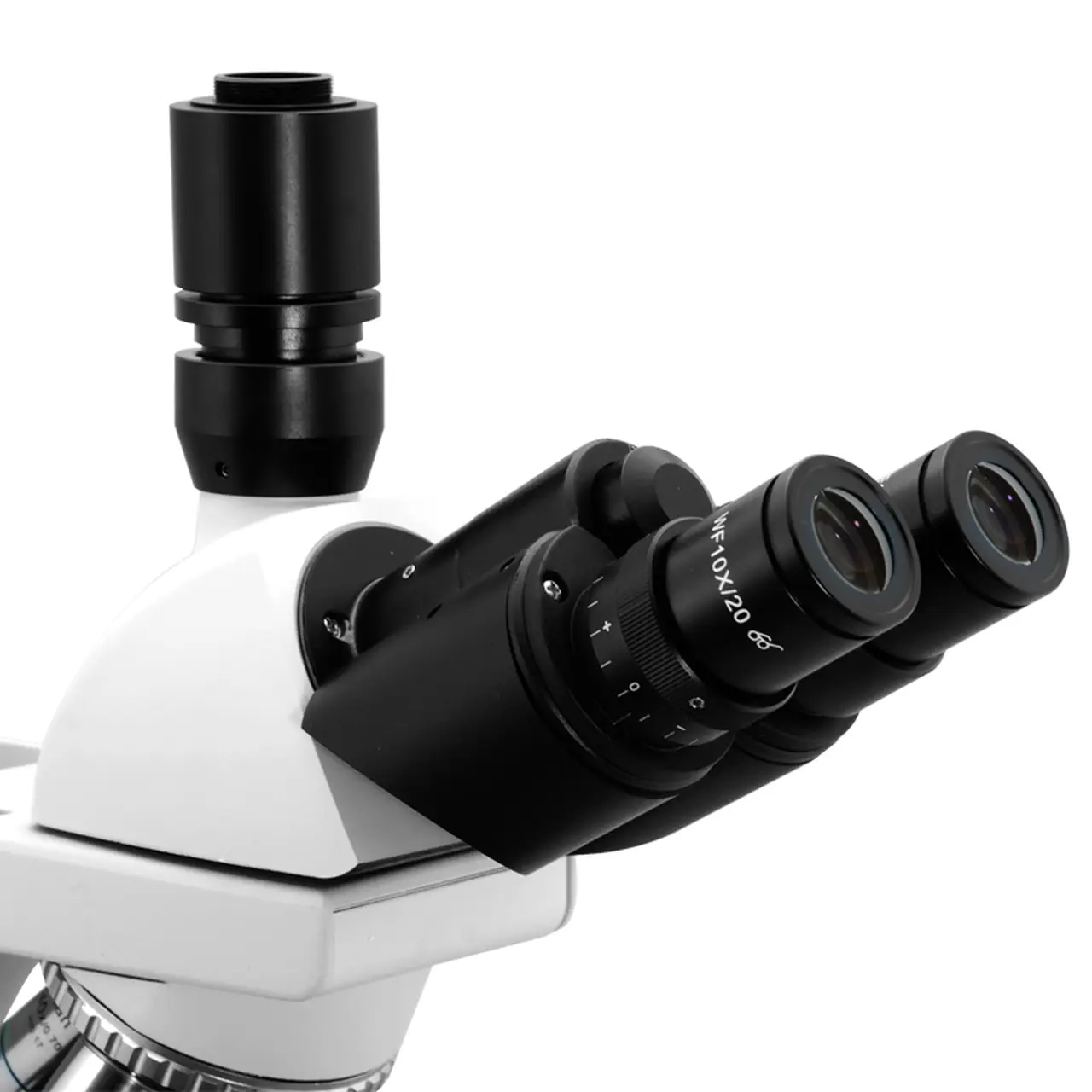

Head |

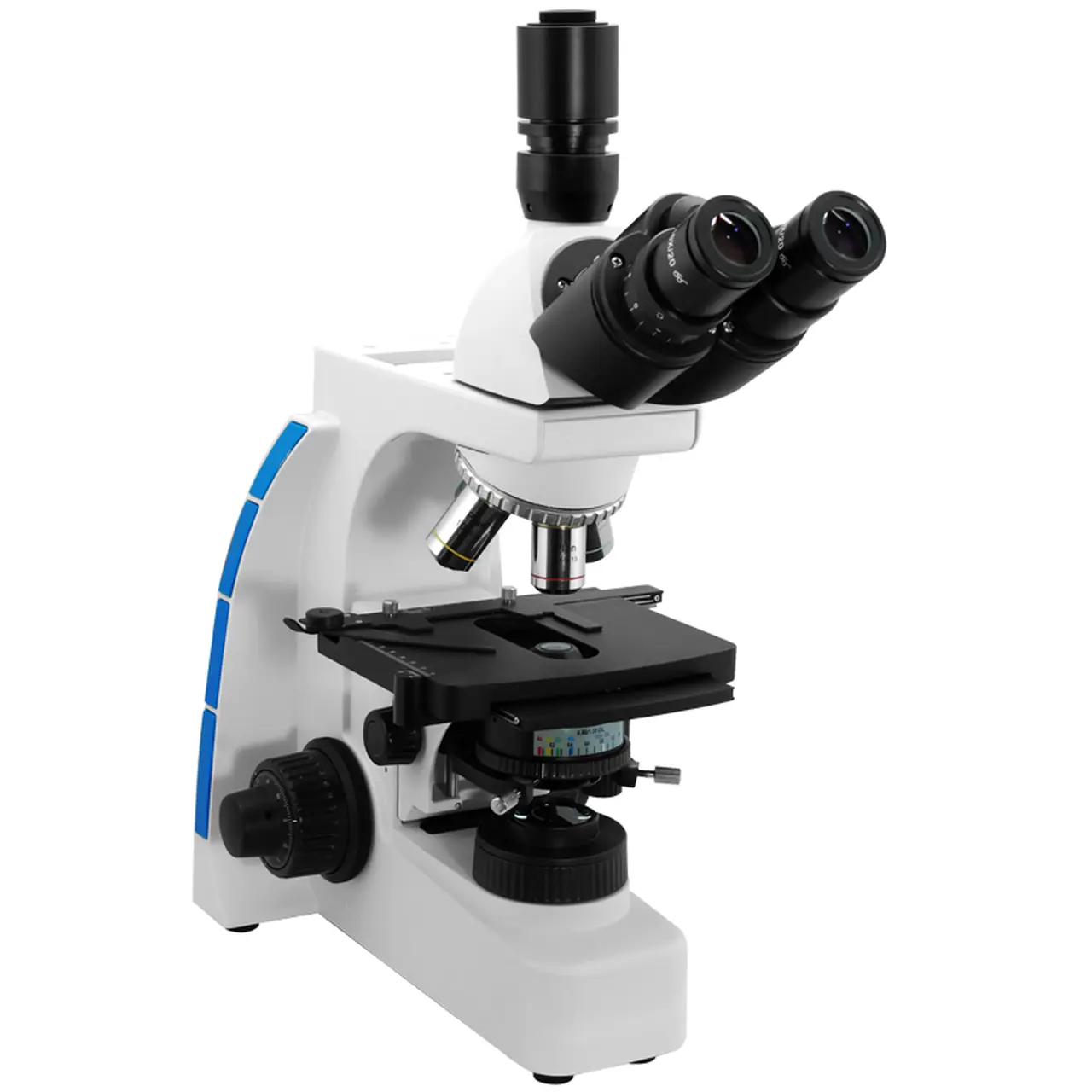

Trinocular head, 30°inclined, 360°rotatable, interpupillary distance 52-75mm, Diopter adjustment: +5 to -5 |
|
Eyepiece |
WF10X/20mm, high eye-point up to 21mm |
|
Objectives |
Infinity Plan 4X/0.1 WD=13.21mm |
|
Infinity Plan 10X/0.25 WD=5.03 mm |
|
|
Infinity Plan 40X/0.65 WD= 0.72mm |
|
|
Infinity Plan 100X/1.25 WD= 0.17mm |
|
|
Nosepiece |
Backward quadruple nosepiece |
|
Focus System |
Low position coaxial focus system with coarse/fine adjustment |
|
Coarse adjustment: 14mm per rotation |
|
|
Fine adjustment: 0.1mm per rotation; division of fine focusing: 0.001mm |
|
|

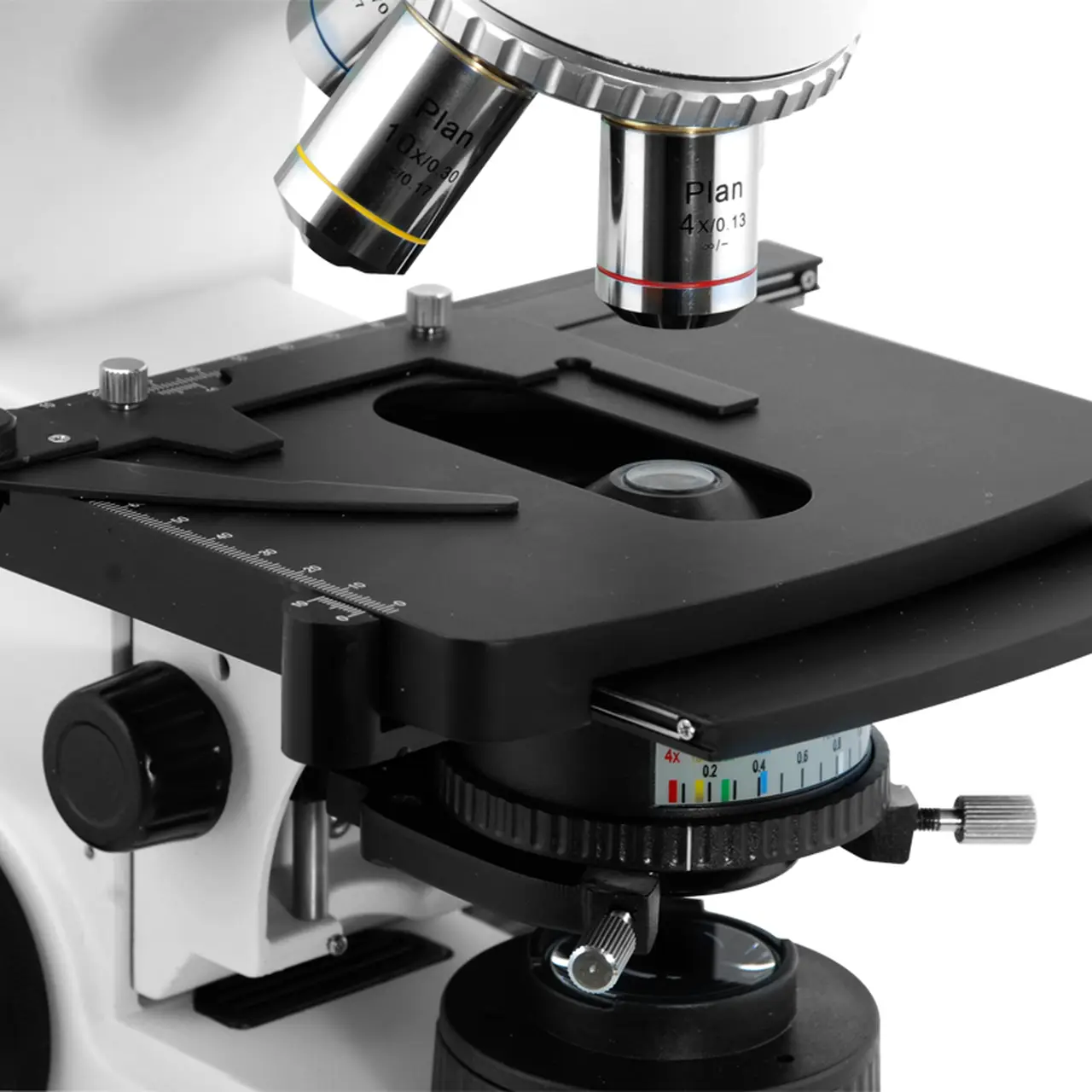

Stage |

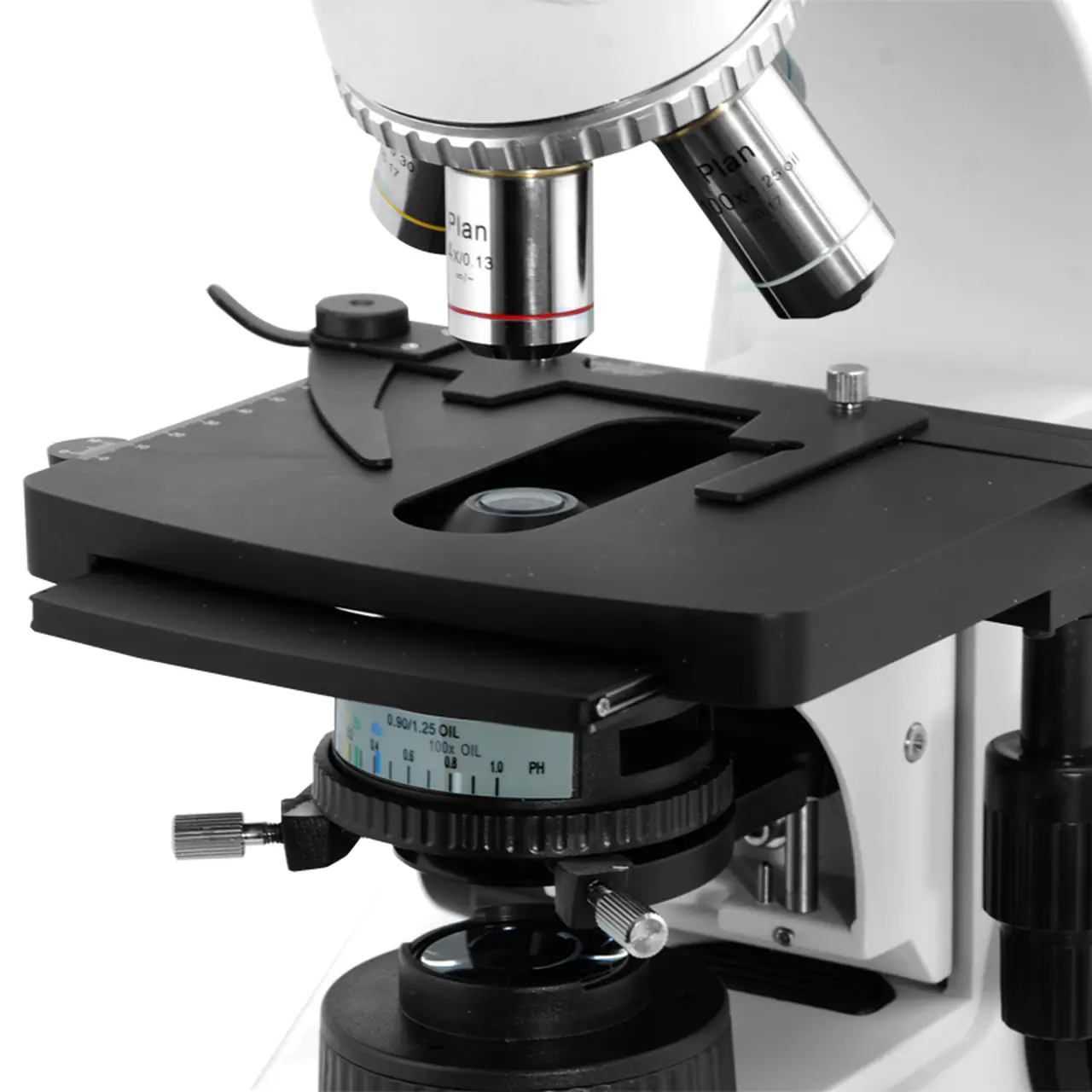

Double layers, size 156x138mm, moving range 76x54mm. Low positioned X-Y coaxial control knob, capable of holding two specimen slides |
|

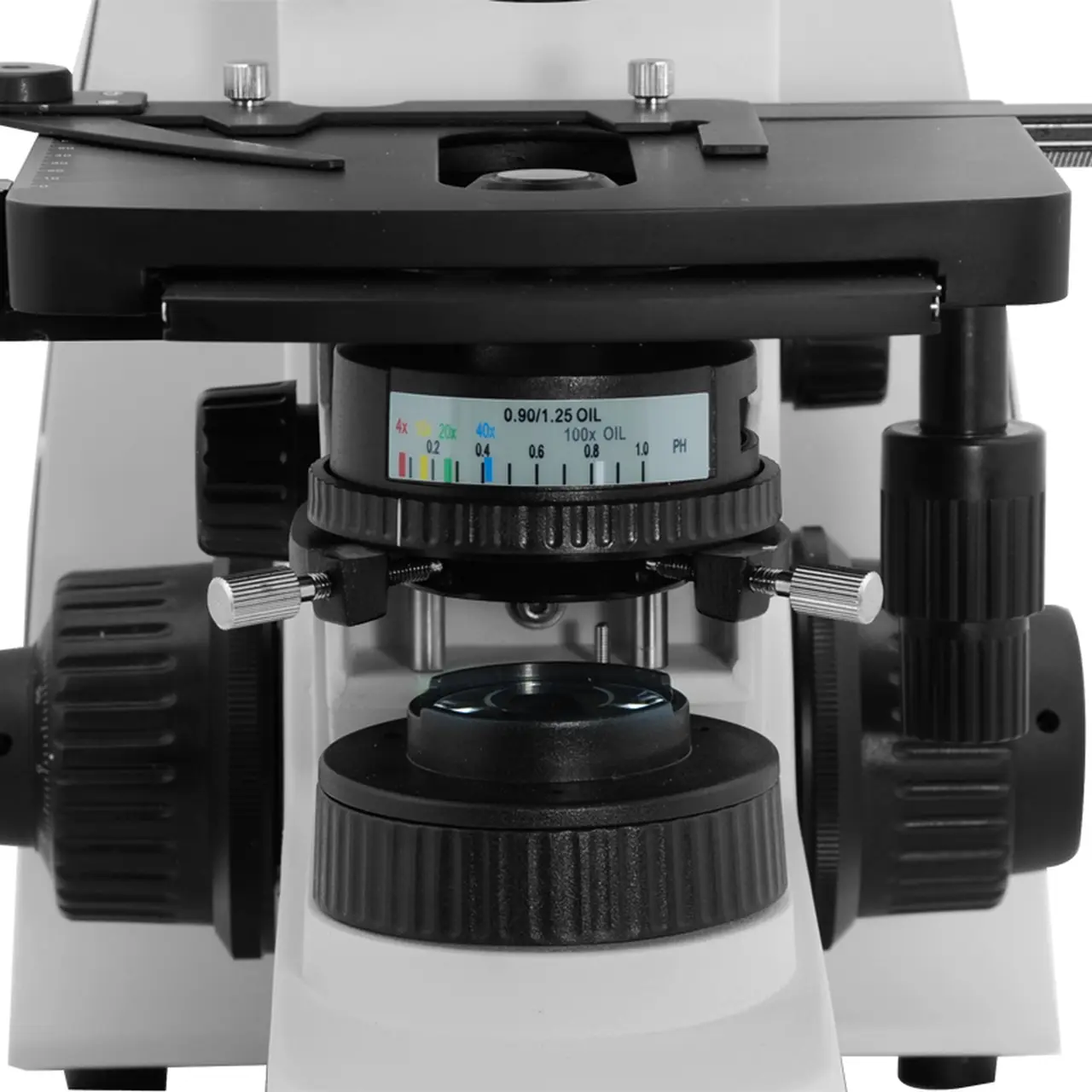

Condenser |
Abbe N.A.1.25 with aperture iris diaphragm and with socket to accommodate Phase Contrast slide; Condenser center adjustable, color-coded diaphragm scale markings corresponded with the objectives of different power. |
|
Filter |
Blue filter |
|
Light source |
6V 20W halogen lamp, Kohler illumination with field diaphragm, easy to replace bulb. |
|
Power |
100-240V wide power range |
|
Weight |
9kg |
|
Certification |
ISO9001, ISO14001, ISO13485 and CE Certified. |
Optional Accessories
|
Items |
Specification |
|
Head |
Binocular Head,30° inclined, 360° rotatable, interpupillary distance 48-75mm |
|
Trinocular Head,30° inclined, 360° rotatable, interpupillary distance 48-75mm |
|
|
Eyepiece |
WF10x/22mm, High Eyepoint up to 21mm |
|
WF16x/13mm, High Eyepoint up to 21mm |
|
|
Retical Eyepiece WF10x/20mm |
|
|
Objective |
Infinity Plan 20X/0.4/0.17, WD=2.71mm |
|
Infinity Plan 60X/0.80 /0.17, WD=0.35mm (Spring) |
|
|
Nosepiece |
Quintuple reversed nosepiece |
|
Light |
Upgrade to LED 3W |
|
Filter |
Green filter |
|
Yellow filter |
|
|
Frosted Glass |
|
|
Polarizing Kit |
Analyzer + Polarizer |
|
Dark Field |
Dark field condenser, dry, for objective 4x,10x,40x,100x |
|
Centering telescope |
Centering telescope |
|
Phase-contrast Condenser: |
Phase-contrast Condenser: NA:1.25, for 10X to 100X |
|
Phase Contrast Slider, for Infinity Plan Phase Contrast Objective |
10x |
|
20x |
|
|
40x |
|
|
60x |
|
|
100x |
|
|
Infinity Plan Phase Contrast Objective, Positive |
10x |
|
20x |
|
|
40x |
|
|
60x |
|
|
100x |
|
|
Infinity Plan Phase Contrast Objective, Negative |
10x |
|
20x |
|
|
40x |
|
|
60x |
|
|
100x |
|
|
Fluorescence Attachment |
Fluorescence Set 100W |
|
Omega Excitation Filter |
UV |
|
V |
|
|
B |
|
|
G |
|
|
Adapter |
CCD 1.0x |
|
CCD 0.5x |
|
|
CCD 0.25x |
|
|
Canon EOS digital Adapter |

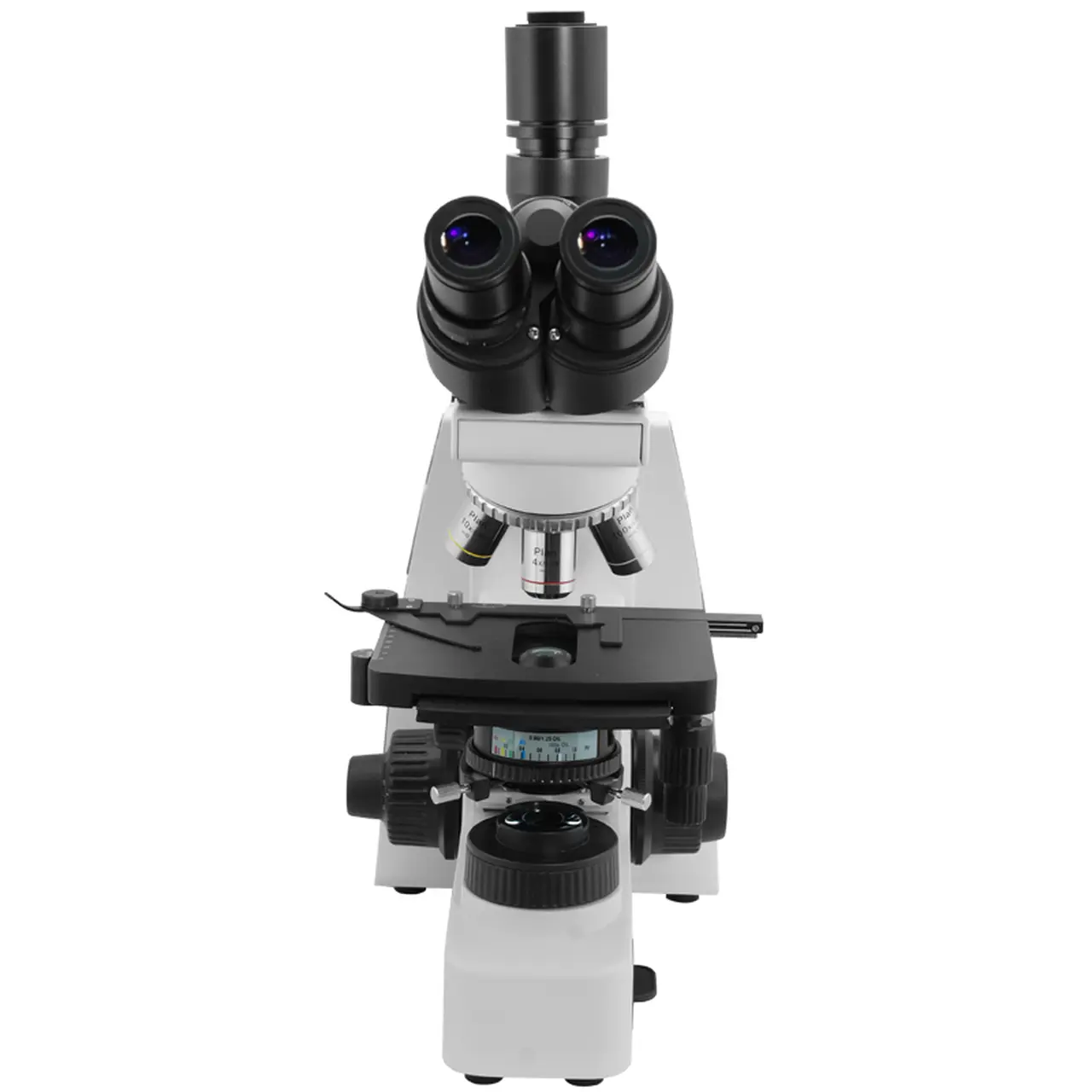

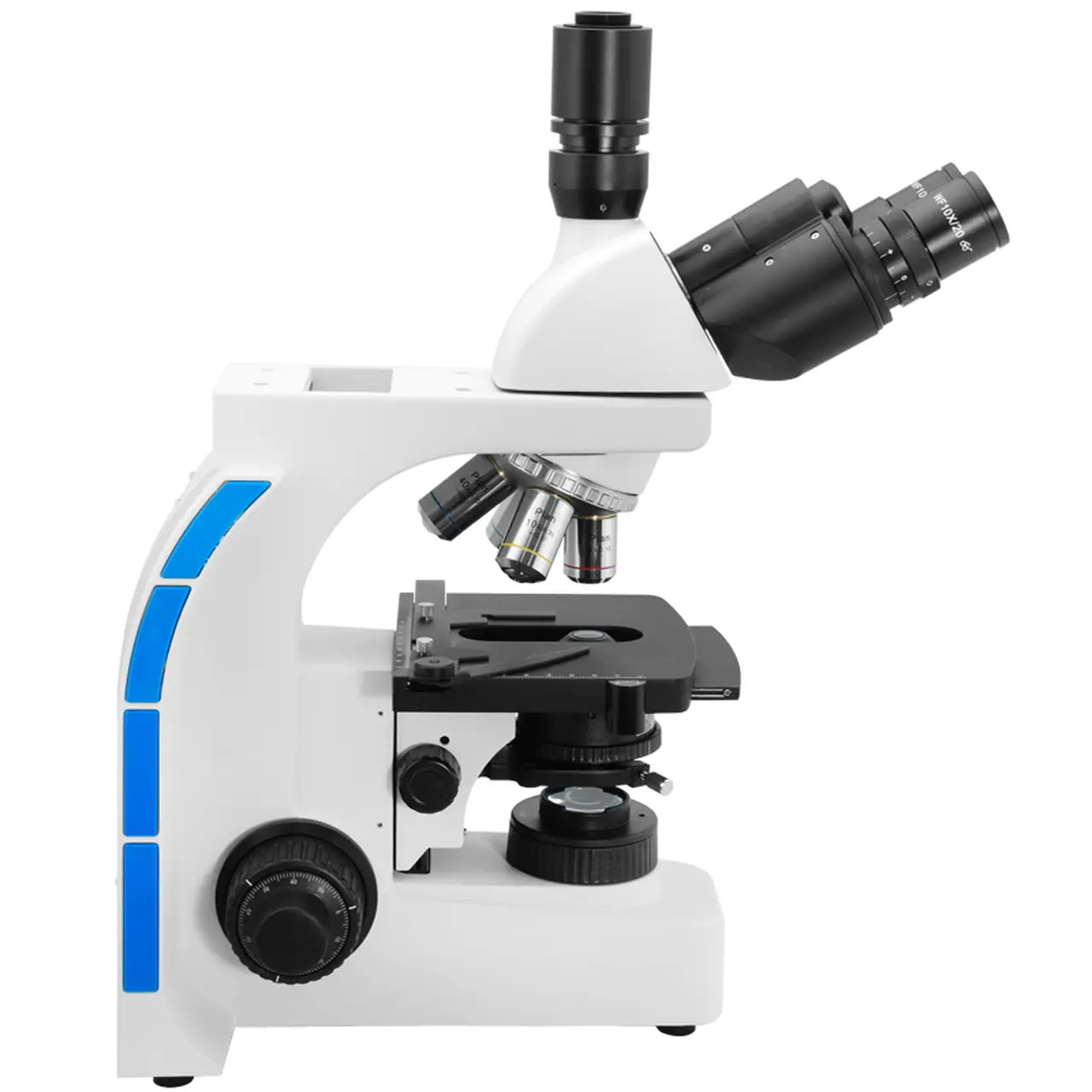

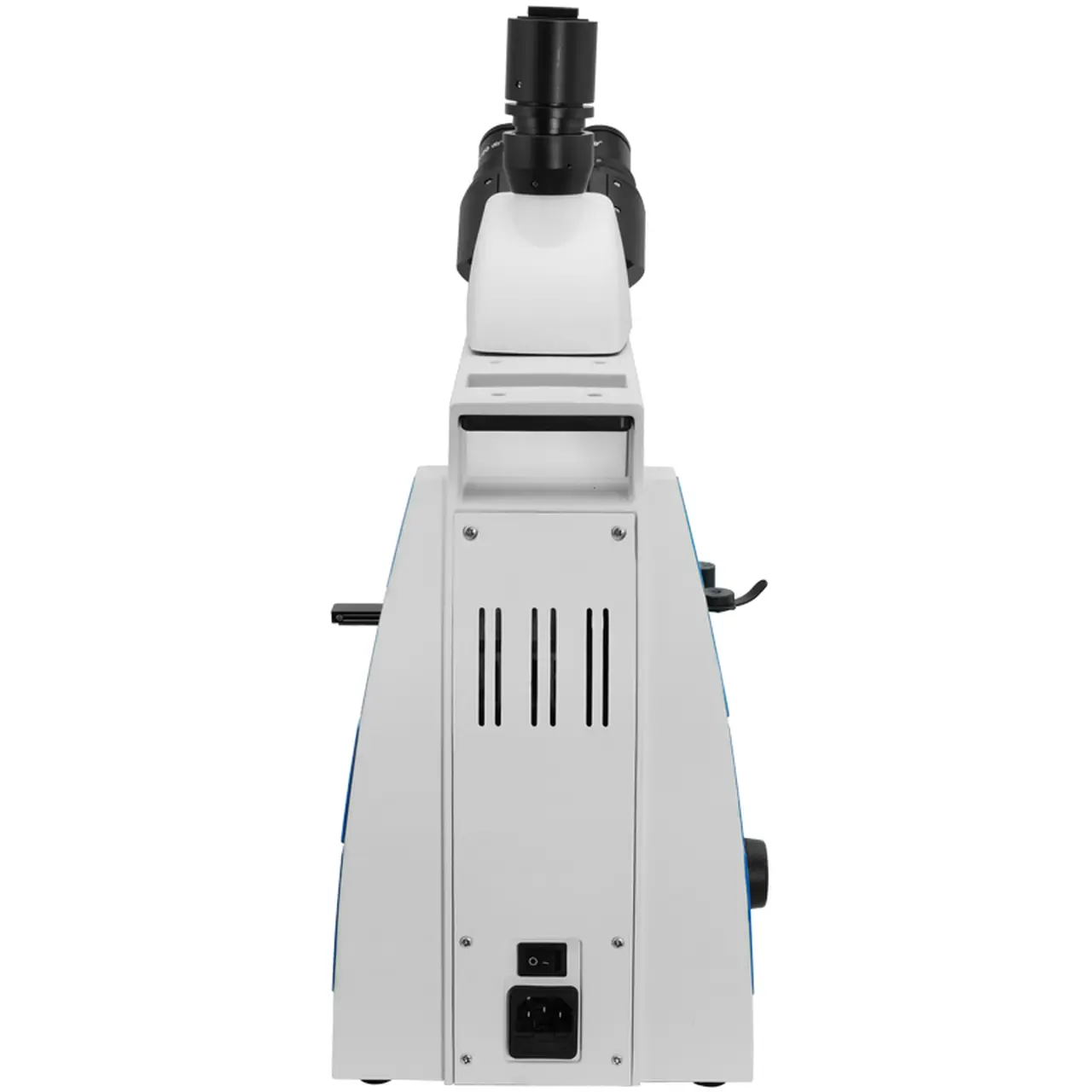

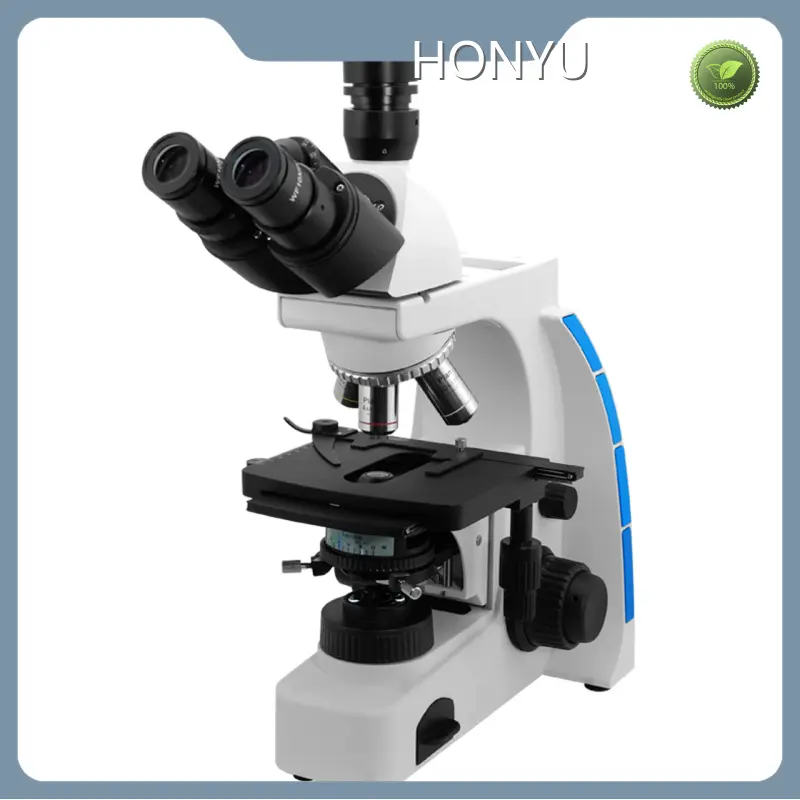

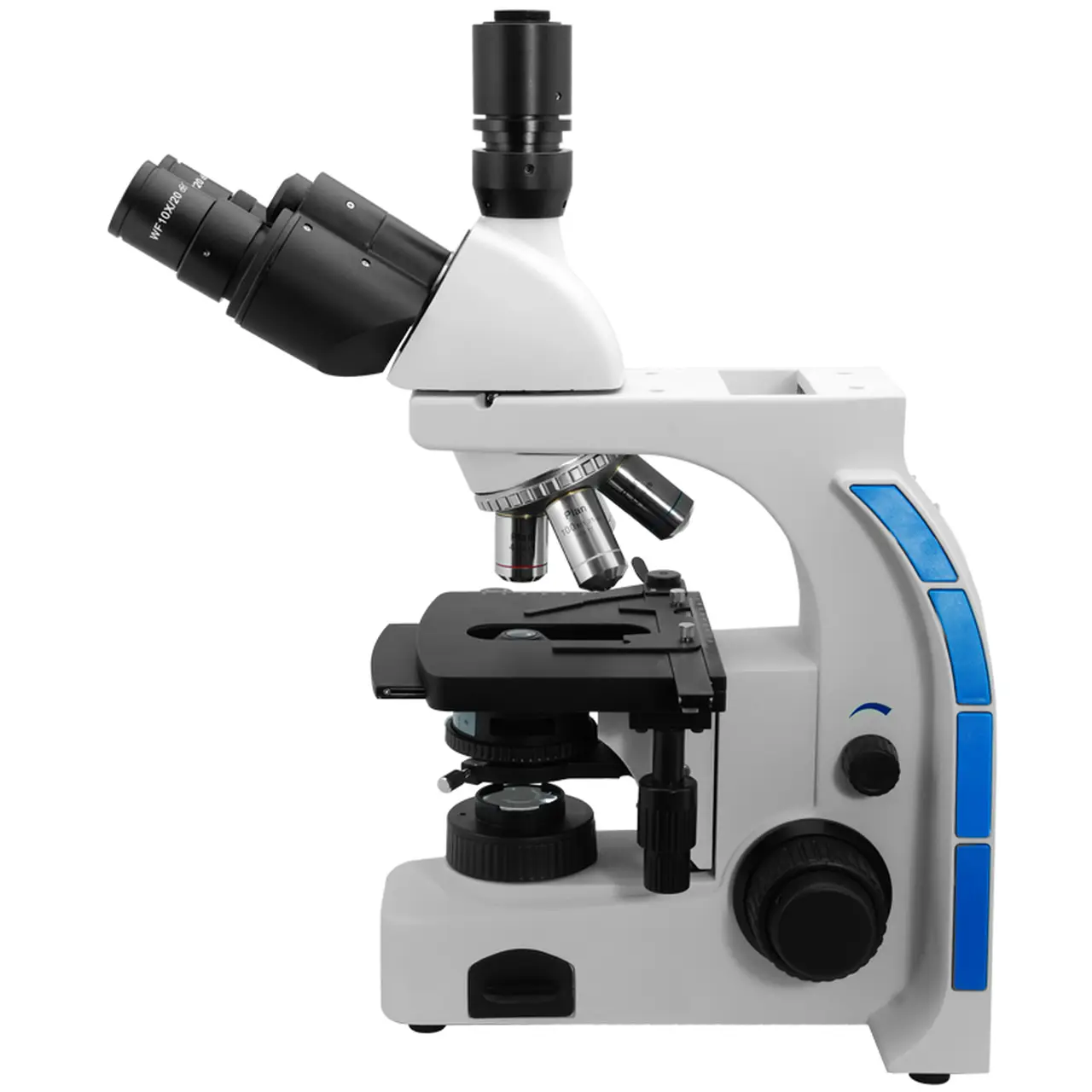

products display
