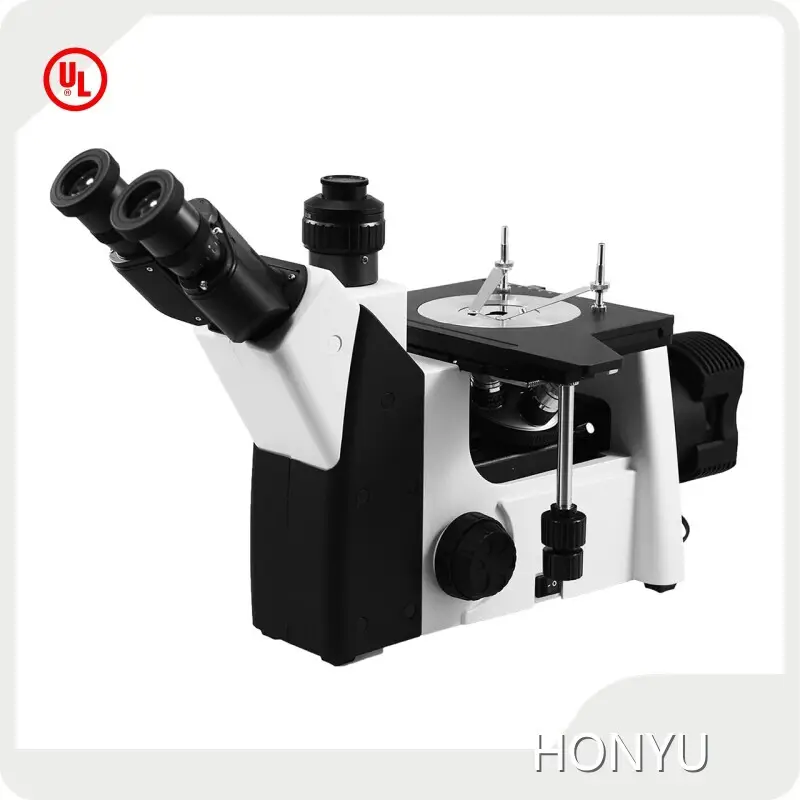

Product details of the laboratory microscope manufacturers


Product Description

The raw materials of HONYU laboratory microscope manufacturers are carefully selected from our reliable suppliers. These quality materials meet with customer's requirements and strict regulatory requirements. laboratory microscope manufacturers is well easily cleaned. At present Ningbo Haishu HONYU Opto-Electro Co., Ltd's actual strength of R&D is in ceaseless development.

MTL (29)

Features

• Four Wide-field magnification settings: 50X, 100X, 200X, 500X

• Long working distance plan achromatic objectives

• Inverted frame configuration and large mechanical stage allow viewing large specimen

• Transmission Koehler illumination with alterable aperture diaphragm

Specification

Optic System

Color-corrected infinity optic system

Head

Gemel trinocular, 45°inclined, Diopter adjustment ±5 for each side, Interpupillary distance adjustable between: 54-75mm Beam Split: binocular:trinocular =80%:20%

Eyepieces

High Eye point Wide Field Plan eyepiece:PL10X/18mm

Long Working Distance Plan Achromatic Metallurgical Objective

PLL5X/0.13 WD: 15.5mm

PLL10X/0.25 WD:8.7mm

PLL20X/0.4 WD: 8.8mm

PLL50X/0.6 WD: 5.1mm

Nosepiece

Quadruple nosepiece

Stage

Size:180x155mm, moving range:75x40mm, precision: 0.1mm

Focus

Low position coaxial coarse and fine focusing with tightness adjustable, Coarse adjustment range 38mm, precision of fine focusing:0.002mm

Illumination UnitLaboratory Microscope Manufacturers at Discount for Sale 9

Transmission Koehler illumination with alterable aperture diaphragm and centerable field diaphragm, wide-range voltage 90-240v, 6v-30w halogen bulb and brightness adjustableLaboratory Microscope Manufacturers at Discount for Sale 10Laboratory Microscope Manufacturers at Discount for Sale 11

Optional Accessories

Items

Specification

Order No.

Eyepiece

Plan eyepiece PL10x/18R with retical

EYE.03.10X

Objectives

LWD Plan Achromatic Metallurgical Objective PLL100xs

OBJ.03.100X

Nosepiece

Quintuple nosepiece

MTL.03.5N

Filter

Yellow filter (Dia:32mm)

MTL.03.YF

CCD adapter

1x CCD adapter

MTL.03.C1X

0.5x CCD adapter

MTL.03.C0.5X

Illumination Attachment

Transmission Koehler illumination with alterable aperture diaphragm and centerable field diaphragm with 3W LED lamp

MTL.03.KL

Polarizing Attachment

Polarizer, Analyzer 360° rotatable

MTL.03.PL

MTL (31)

Packing list

• PL10x eyepieces, one pair

• 5x long working plan metallurgical objective

• 10x long working plan metallurgical objective

• 20x long working plan metallurgical objective

• 50x long working plan metallurgical objective

• Transmission Koehler illumination system

• Quadruple nosepiece

• one large mechanical stage

• Power cord

• Dust cover

• Instructions

products display

MTL (29)
MTL (29)
MTL (30)
MTL (30)
MTL (31)
MTL (31)
MTL (32)
MTL (32)
MTL (33)
MTL (33)
MTL (34)
MTL (34)
