Comprehensive Microscope Solution Supplier for Biological and Industrial Inspection.
Hot Sale Microscope Suppliers Best Supplier for Dslr
Product details of the microscope suppliers
Product Description
The raw materials of HONYU microscope suppliers come from certified and reliable suppliers. Regular performance checks have been implemented to ensure the high performance and reliable quality of the product. Ningbo Haishu HONYU Opto-Electro Co., Ltd always adheres to the principle of 'customer first'.
Features
• Five Wide-field magnification settings: 50X to 500X
• Long working distance plan achromatic objectives
• Equipped with analyzer and polarizer
Specification
|
Specification |

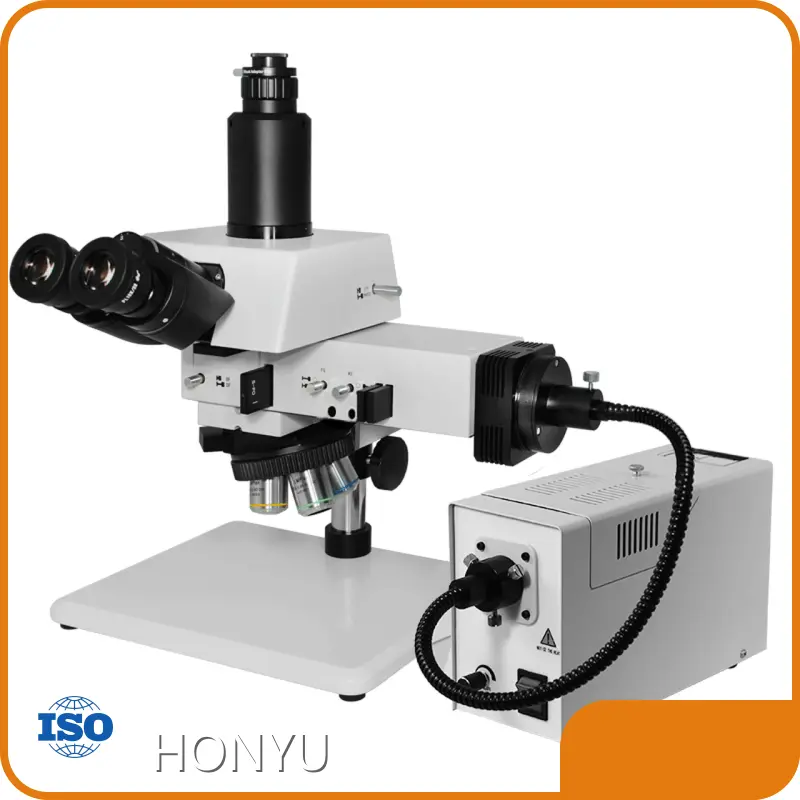

MTL.03.FMSBD Industry Metallurgical with Positive image viewing |
|
Head |
25°inclined trinocular head with positive image viewing, splitting ratio for binocular: trinocular =100：0 or 0:100, diopter adjustment±5,interpupillary distance 54mm-75mm |
|
Observation method |
Bright field/Dark field |
|
Eyepiece |
High eye-point plan eyepiece PL10x/22mm |
|
Objectives |
Infinity Plan LWD Bright field/Dark field metallurgical objective 5x-DIC WD=11mm |
|
Infinity Plan LWD Bright field/Dark field metallurgical objective 10x-DIC WD=9.5mm |
|
|
Infinity Plan LWD Bright field/Dark field metallurgical objective 20x-DIC WD=3.4mm |
|
|
Infinity Semi-APO plan LWD Bright field/Dark fieldmetallurgical objective 50x WD=7.5mm |
|
|
Nosepiece |
Backward quintuple nosepiece for bright field & dark field，with DIC slot. |
|
Focusing |
Coaxial coarse and fine adjustment, coarse adjustment distance 45mm,precision of fine adjustment:0.002mm,with tense adjusting device to prevent gliding |
|
Base |
B5 big flat base, size 320mmX260mmX16mm,post height 280mm,diameterφ32mm |
|
Reflected illumination system |
With iris field diaphragm and aperture diaphragm, central adjustable, with filter slot and polarizing slot, with switch device between bright field and dark field. |
|
Polarizing Attachment |
Fixed analyser flashboard |
|
360°rotatable analyser flashboard |
|
|
Illuminaor |
15V150W cold halogen lamp, intensity continuously adjustable; single fiber hose（550mm） |
Optional Accessories
|
Name of Parts |
Order No. |
|
|
Eyepiece |
Wide field plan eyepiece PL 10x/22mm with reticle |
PL10X22r |
|
Wide field plan eyepiece PL 10x/22mm,diopter adjustable |
PL10X22T |
|
|
Wide field plan eyepiece PL 10x/23mm,diopter adjustable |
PL10X23T |
|
|
DIC Kits |
|
MX-DICR |
|
Objectives |
IInfinity semi-APO plan achromatic LWD Bright field/Dark fieldmetallurgical objective 100x WD=2.1mm |
OLIPBD100NCS |
|
Filter |
Interference bule filter ≤480nm |
IF-B |
|
Interference green filter 520nm-570nm |
IF-G |
|
|
Interference red filter 630nm-750nm |
IF-R |
|
|
Interference neutral filter |
IF-LBD |
|
|
Photo Attachment |
Digital photo adapter (for C-mount and photo eyepiece) |
|
|
Vidio Attachment |
1/2 CTV C mount, focusing control |
MX-CTV0.5 |
|
Single Fiber Hose |
1000mm |
|
|
1500mm |
|
|
products display
Company Advantage
• HONYU enjoys an excellent geographical location with traffic convenience. They are a good foundation for our own development.
• Formally established in our company has been committed to the research and development and innovation of the main products. After years' exploration and development, we have successfully developed a feature road that is in line with China's national conditions and suitable for our own situation.
• HONYU established a talents team with strong technical capability and comprehensive strength on the basis of modern management mode.
• Biological Microscope,Stereo Microscope,Metallurgical Microscope,Operation Microscope,Comparison Microscope,Handheld Digital Microscope,Microscope Accessories is currently selling well in various regions of China. In addition, we are also fully prepared to open up foreign markets.
HONYU is a manufacturer specializing in the production of Biological Microscope,Stereo Microscope,Metallurgical Microscope,Operation Microscope,Comparison Microscope,Handheld Digital Microscope,Microscope Accessories. The products are cost-effective with high quality and favorable price. Feel free to call us for consulting or business talk.
HONYU is a professional optical supplier in China with more than 20 years’ experience in Microscopes.
