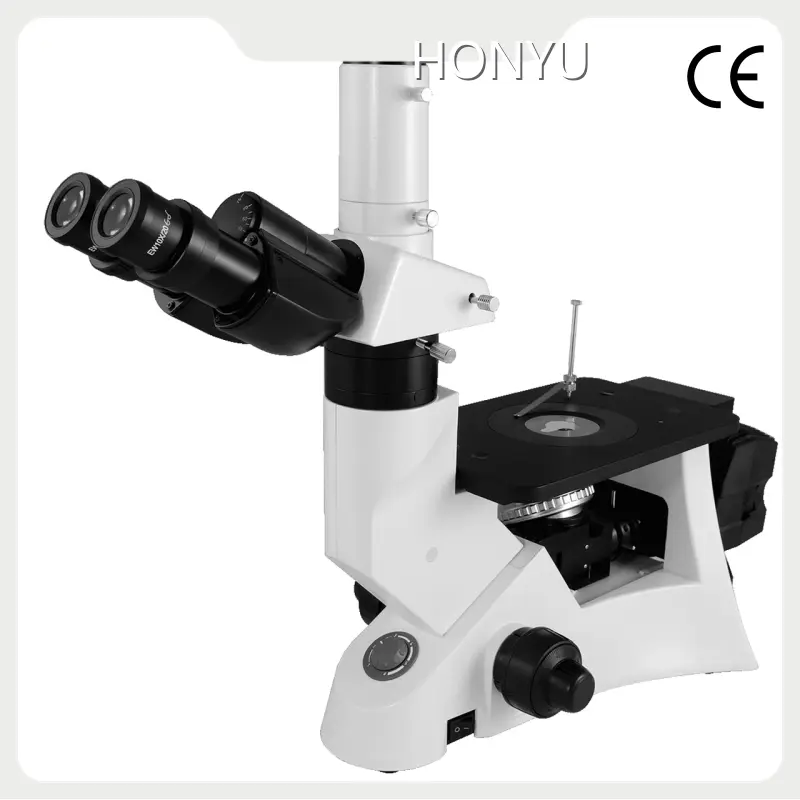

Hot Sale Metallurgical Microscope for Sale
Product details of the metallurgical microscope
Quick Detail
Perfect design: the design of HONYU metallurgical microscope is carefully conducted. Its design has been proven to be a perfect combination of aesthetics and functions. All our products must be strictly tested before leaving factory. The metallurgical microscope produced by HONYU can be used in many fields. Ningbo Haishu HONYU Opto-Electro Co., Ltd has complete production equipment and advanced technological process.
Product Information
Compared with similar products, the metallurgical microscope of HONYU is more strict in the selection of raw materials. The specific aspects are as follows.
Features
• Five Wide-field magnification settings: 40X to 400X
• Long working distance plan achromatic objectives
• Equipped with analyzer and polarizer
Specification
|
Head |
Trinocular head inclined at 30 °, interpupillary distance adjustment: 48-75mm |
|
Eyepiece |
High-point ,extra wide field eyepiece EW10×/20 ( Dia.30mm) |
|
Metallurgical Infinity Plan Objective |
Metallurgical Infinity Plan Objective 4X/0.1 (non-cover) |
|
Metallurgical Infinity Plan Objective 10X/0.25 (non-cover) |
|
|
Metallurgical Infinity Plan Objective 20X/0.4 (non-cover) |
|
|
Metallurgical Infinity Plan Objective 40X/0.6 (non-cover) |
|
|
Nosepiece |
Quintuple nosepiece |
|
Stage |
Plain stage 160x250mm, center hole Φ10mm, Φ15mm, Φ25mm |
|
Focusing |
Coaxial Coarse and Fine Focusing, vertical objective movement. Coarse Range 37.7mm/per rotation, Division 0.2mm/per rotation |
|
Illumination |
Kohler Illumination, Halogen Lamp 6V30W, Brightness Adjustable |
|
Filter |
Blue, Yellow. Green and ground glass |
|
Polarizing |
Polarization attachment |
Optional Accessories
|
Items |
Specification |
Order No. |
|
Metallurgical Infinity Plan Objective |
Infinity Plan Achromatic Objective 50X/0.75 (non-cover) |
OBJ.06.MIPL |
|
Infinity Plan Achromatic Objective 80X/0.9 (non-cover) |
OBJ.06.MIPL |
|
|
Infinity Plan Achromatic Objective 100x/0.80 (non-cover) |
OBJ.06.MIPL |
|
|
Stage |
Attachable X-Y mechanical stage, coaxial control, movement range 120 x78mm Auxiliary stage:70x180mm |
STD.06.XY |
|
Adapter |
C-Mount adapter |
ADA.06.C1X |
products display
Company Advantages
Ningbo Haishu HONYU Opto-Electro Co., Ltd, a company, is mainly engaged in the production, processing, and sales of Biological Microscope,Stereo Microscope,Metallurgical Microscope,Operation Microscope,Comparison Microscope,Handheld Digital Microscope,Microscope Accessories. HONYU has been improving the service since the founding. Now we run a comprehensive and integrated service system which enables us to provide timely and efficient services. We are committed to providing customers with quality products. We sincerely welcome customers with needs to contact us, and look forward to establishing a long-term friendly relation with you!
HONYU is a professional optical supplier in China with more than 20 years’ experience in Microscopes.
