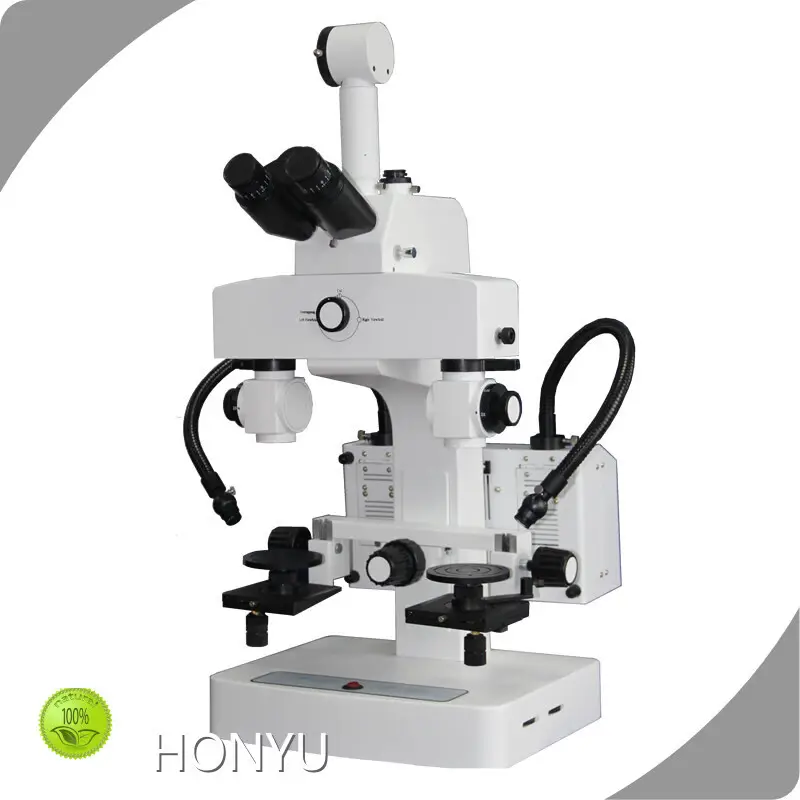

HONYU Optical Microscope Manufacturers Upplier
Product details of the optical microscope manufacturers
Quick Overview
HONYU optical microscope manufacturers is designed to suit international tastes. The product has usability and long service life. The optical microscope manufacturers produced by our company is widely recognized by customers and widely used in field. Possessing these advantages, it has a vast application prospect.
Product Description
The optical microscope manufacturers we produce are able to stand up to the details.
Features
• 3.8x-230x magnification
• 5 step zoom objectives
• Separation Line Adjusting
Specification
|
Magnification |
3.8x~230x |
|
|
Head |
Binocular Head, 30° inclined, interpupillary distance 48~75mm, Diopter +/-5 adjustable |
|
|
With VIDEO port and PHOTO port |
||
|
Eyepiece |
WF10x/22mm, High Eyepoint |
|
|
WF20x/12mm, High Eyepoint |
||
|
Objective |
5 Step Zoom Plan Objective 0.8x, 1.25x, 2x, 3.2x, 4.8x |
|
|
Auxiliary Lens 0.4x, 2.0x |
||
|
Working Distance |
101mm |
|
|
View Field |
Diameter 2.3~62mm |
|
|
Magnification Correcting |
Magnification Correction System, with Correcting Lens |
|
|
Separation Line Adjusting |
Separation Line Adjust System in Back, with Special Designed Adjustment Driver |
|
|
Working Stage |
Square Manual Working Stage 90*90mm, Moving Range 54*54*54mm |
|
|
|
Round Titable Working Stage Dia. 90mm, 0-45° Inclined, 360° Rotatable |
|
|
|
Joint Left/Right Moving Range 54mm, Joint Up/Down Range 60mm |
|
|
Bullet Holder |
Bullet Holder Set for all kinds of Bullet, Cartridge and other Objects |
|
|
Light Source |
12v 50w fan cooling strong halogen light, brightness adjustable (pair) |
|
|
5w led cold light, high brightness, brightness adjustable (pair) |
||
|
Coaxial Light Lens for observing in deep hole, or smooth object surface (Pair) |
||
|
Polarizing Light Lens, for eliminating flare lights and dazzling lights(Pair) |
||
|
Transmit bottom light |
||
|
Filters: red, green, uv |
||
|
Adapter |
Built-in 0.5x CCD Adapter |
|
|
Front View Photo Adapter for SLR Digital Camera |
||
|
Easy to view and take photos |
||
|
Power |
80~240v wide range voltage |
|
|
Dimension |
Instrument Size 37*30*63cm |
|
|
Packing case |
Aluminum Case Packing. Convenient for carrying and storing |
|
|
Optional accessories |
||
|
Light source |
150w cold light source, with optical fiber & light collector |
|
|
7" pad digital camera |
7 inch lcd pad digital camera, android system, |
|
|
9.7" pad digital camera |
9.7 inch lcd pad digital camera, android system, |
|
