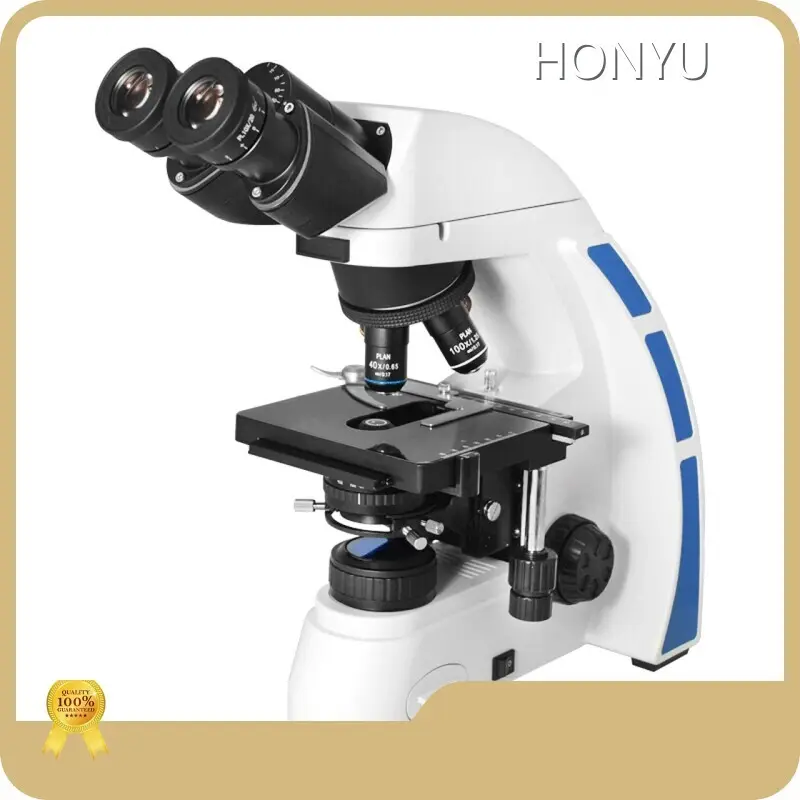

Product details of the microscope suppliers
Product Information
The materials of HONYU microscope suppliers is safe, do no harm to human health. Long-term stable performance of the product in the industry has a great advantage. HONYU has customers and partners in many countries around the world.
Features
• Infinity Corrected Optical System design can correct chromatic aberration
• Four Wide-field magnification settings: 40X, 100X, 400X, 1000X
• Equipped with Kohler N.A.1.25 condenser with Socket for Phase Contrast and Dark Field Slides
Specification
|
Optical system |
Color corrected infinity optical system |
|
Head |
Binocular head, inclined at 30 degree, 360 degree swiveling, Interpupillary Distance 54-75mm |
|
Eyepiece |
PL10X/20mm, Wide Field, High Eye Point, Diopter Adjustable +/-5 Degree |
|
Objective |
OIP infinity plan achromatic objective 4X/0.06 WD=7.18mm |
|
OIP infinity plan achromatic objective 10X/0.25 WD=4.70mm |
|
|
OIP infinity plan achromatic objective 40X/0.65 WD=0.72mm |
|
|
OIP infinity plan achromatic objective 100X /1.25 WD=0.15mm |
|
|
Nosepiece |
Backward Quadruple |
|
Condenser |
Kohler N.A. 1.25, with Socket for Phase Contrast and Dark Field Slides, Center adjustable |
|
Illumination |
Wide range of input: 100V~240V; 3W high brightness LED, brightness adjustable, Center Fixed |
|
Stage |
Double layer mechanical stage with damping clips, 150x140mm in size, traveling range: 76x50mm |
|
Focusing |
Coaxial focus system with tension adjustment, with up-limited. Coarse Focusing Range: 30mm |
|
Packing Info |
Carton dimension 58x56x28cm (Chargeable weight about 18kgs by express carrier ), Gross weight 12kgs |
Optional Accessories
|
Head |
Trinocular, 30° Inclined, Interpupillary Distance 54-75mm |
|
Eyepiece |
PL10X/22mm, Wide Field, High Eye Point, Diopter Adjustable +/-5 Degree |
|
Objective |
Infinity Plan Achromatic 20X/0.40mm |
|
Nosepiece |
Backward Quintuple |
|
Filter |
Blue, 45mm in diameter |
|
Yellow,45mm in diameter |
|
|
Green, 45mm in diameter |
|
|
Neutral, 45mm in diameter |
|
|
Adapter |
C-Mount 1.0X, Focus Adjustable |
|
C-Mount 0.5X, Focus Adjustable , for 1/2″CCD |
|
|
C-Mount 0.35X, Focus Adjustable, for 1/3″CCD |
|
|
Photo Adapter with PK or MD mount, with 3.2X Photo Eyepiece |
|
|
Dark Field Slider |
Dark Field Slider for 4X~40X Objective |
|
Polarizing Kit |
Polarizer |
|
Analyzer |
|
|
Phase Contrast Accessory |
Centering Telescope, 30mm in diameter |
|
Phase Contrast Slide, for 10X, 40X Infinity Objective |
|
|
Phase Contrast Slide, for 20X,100X Infinity Objective |
|
|
N.A.1.25 Kohler Illumination Turnplate Phase Contrast Condenser Set, For 10X, 20X, 40X, 100X Phase Contrast Observation |
|
|
N.A.1.25 Kohler IlluminationTurnplate Phase Contrast Condenser withDark Field Setfor 10X,40X,100X Phase Contrast Observation and Dark Filed Observation |
|
|
Infinity Plan Phase Contrast Objective 10X/0.25, W.D.=4.70mm (For BF or DF) |
|
|
Infinity Plan Phase Contrast Objective 20X/0.50, W.D.=1.75mm (For BF) |
|
|
Infinity Plan Phase Contrast Objective 40X/0.65, W.D.=0.72mm (For BF or DF) |
|
|
Infinity Plan Phase Contrast Objective 100X/1.25, W.D.=0.15mm (For BF) |
|
|
Bright FieldTurnplate Phase Contrast Kit |
This Kit Includes: |
|
--N.A.1.25 Kohler Illumination Turnplate Phase Contrast Condense Set, For 10X, 20X, 40X,100X Phase Contrast Observation |
|
|
--Infinity Plan Phase Contrast Objective 10X/0.25, W.D.=4.70mm |
|
|
--Infinity Plan Phase Contrast Objective 20X/0.50, W.D.=1.75mm |
|
|
--Infinity Plan Phase Contrast Objective 40X/0.65, W.D.=0.72mm |
|
|
--Infinity Plan Phase Contrast Objective 100X/1.25, W.D.=0.15mm |
|
|
--Centering Telescope, 30mm in diameter |
|
|
Dark FieldTurnplate Phase Contrast Kit |
This Kit Includes: |
|
--N.A.1.25 Kohler IlluminationTurnplate Phase Contrast Condenser withDark Field Holefor10X, 40X, 100XPhase Contrast Observation and Dark Filed Observation |
|
|
--Infinity Plan Phase Contrast Objective 10X/0.25, W.D.=4.70mm |
|
|
--Infinity Plan Phase Contrast Objective 40X/0.65, W.D.=0.72mm |
|
|
--Infinity Plan Phase Contrast Objective 100X/1.25, W.D.=0.15mm |
|
|
--Centering Telescope, 30mm in diameter |
|
|
Note: BF = Bright Field. DF=Dark Field |
|
