Product details of the microscope suppliers
Product Overview
The unique design makes HONYU microscope suppliers stand out among similar products. Each product meets the quality standards through strict quality test. HONYU's microscope suppliers is widely used in multiple industries and fields. The growth of HONYU also needs the efforts of customer service team.
Product Information
HONYU pays great attention to details. And the details of microscope suppliers are as follows.
Features

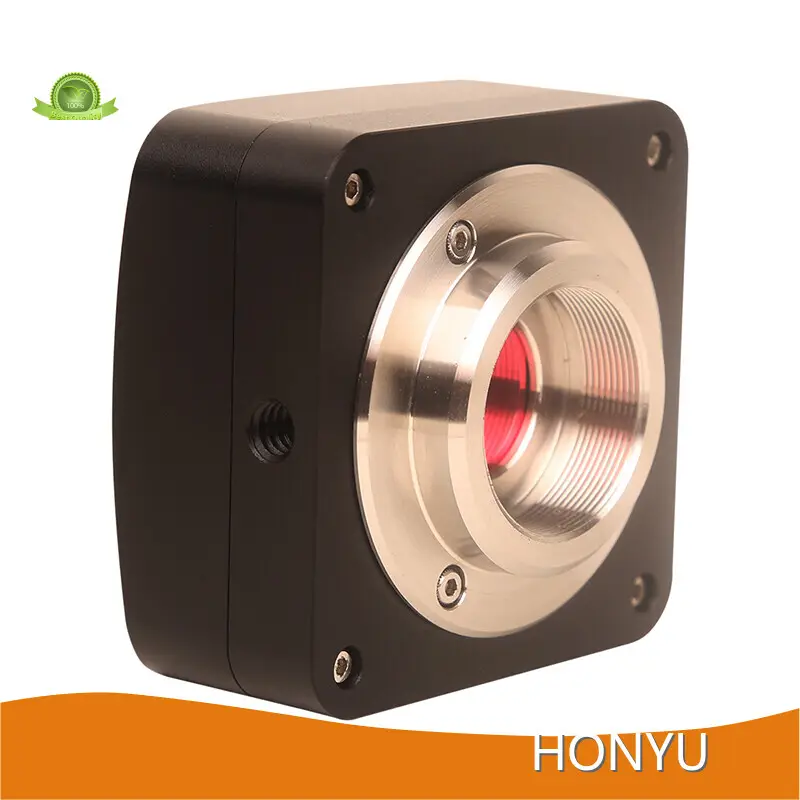

• USB2.0 high speed digital camera with CMOS sensor
• Capable of recording real-time, high-definition videos and capturing 5.1MP still images
• Compatible with Windows XP/Vista/7/8, Mac OS X and Linux
• Capable of being attachable to any microscopes, telescopes, endoscopes with C-mount
Specification
|
Hardware Configuration |
||
|
Max. Resolution |
2592x1944 (5.1 Mega Pixels) |
|
|
Pixel Size |
2.2μm x 2.2μm |
|
|
Frame Size and Rate |
5fps@2592x1944, 18fps@1280x960, 60fps@640x480 |
|
|
Sensor Model |
APTINA MT9P001(Color) |
|
|
Sensor Size |
1/2.5 inch (5.7mm(H) x 4.28mm(V)) |
|
|
Sensitivity |
0.53 V/lux-sec |
|
|
DynamicRange |
66.5dB |
|
|
A/D Converter |
10-bit, 8-Bit R.G.B to PC |
|
|
SN Ratio |
40.5dB |
|
|
Spectral Range |
380-650nm (with IR-filter) |
|
|
Binning |
1x1, 2x2, 4x4 |
|
|
Exposure |
0.294ms~2000msms |
|
|
Color Rendering Technique |
Ultra FineTM Color Engine |
|
|
White Balance |
One Push ROI White Balance/ Manual Temp-Tint Adjustment |
|
|
Capture/Control API |
Native C/C++ SDK, DirectShow, Twain |
|
|
Capture Mode |
Still Picture and Video |
|
|
Software Environment |
||
|
Operating System |
Windows XP / Vista / 7 / 8 (32 & 64 Bit) |
|
|
OS X (MAC OS X) |
||
|
Linux (Kernel 2.6 or Above) |
||
|
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
|
|
Memory:2GB or More |
||
|
USBPort:USB2.0 High-speed Port |
||
|
Operating Environment |
||
|
Operating Temperature |
-10~60℃ |
|
|
Storage Temperature |
-30~80℃ |
|
|
Operating Humidity |
30~80%RH |
|
|
Storage Humidity |
10~60%RH |
|
|
Power Supply |
Over USB Port |
|
Optional Accessories
|
Order Number |
Specification Description |
|
ADA.17.FMA050 |
0.5x Fixed Adapter for Eyepiece Tube or Trinocular Tube(23.2mm) |
|
ADA.17.AMA050 |
0.5x Adjustable Adapter for Eyepiece Tube or Trinocular Tube(23.2mm) |
|
ADA.17.EDA30 |
23.2mm to 30mm Eyepiece Adapter |
|
ADA.17.EDA305 |
23.2mm to 30.50mm Eyepiece Adapter |
Camera Standard Packing List
• One USB 2.0 5.1MP Digital Camera
• One high-speed USB 2.0 Cable
• One CD with Driver and Software
products display
Company Information
Ningbo Haishu HONYU Opto-Electro Co., Ltd is a enterprisein pan> integrating production, processing, sales and service. Our key product is Biological Microscope,Stereo Microscope,Metallurgical Microscope,Operation Microscope,Comparison Microscope,Handheld Digital Microscope,Microscope Accessories. With professional, sophisticated, reasonable and fast principles, provides a complete supporting service for customers. Welcome all customers in need to purchase our products.
HONYU is a professional optical supplier in China with more than 20 years’ experience in Microscopes.
