Comprehensive Microscope Solution Supplier for Biological and Industrial Inspection.
HONYU Microscope Stand Holder Factory
Features
• USB2.0 high speed digital camera with CMOS sensor
• Capable of recording real-time, high-definition videos and capturing 5.1MP still images
• Compatible with Windows XP/Vista/7/8, Mac OS X and Linux
• Capable of being attachable to any microscopes, telescopes, endoscopes with C-mount
Specification
|
Hardware Configuration |
||
|
Max. Resolution |
2592x1944 (5.1 Mega Pixels) |
|
|
Pixel Size |
2.2μm x 2.2μm |
|
|
Frame Size and Rate |
5fps@2592x1944, 18fps@1280x960, 60fps@640x480 |
|
|
Sensor Model |
APTINA MT9P001(Color) |
|
|
Sensor Size |
1/2.5 inch (5.7mm(H) x 4.28mm(V)) |
|
|
Sensitivity |
0.53 V/lux-sec |
|
|
DynamicRange |
66.5dB |
|
|
A/D Converter |
10-bit, 8-Bit R.G.B to PC |
|
|
SN Ratio |
40.5dB |
|
|
Spectral Range |
380-650nm (with IR-filter) |
|
|
Binning |
1x1, 2x2, 4x4 |
|
|
Exposure |
0.294ms~2000msms |
|
|
Color Rendering Technique |
Ultra FineTM Color Engine |
|
|
White Balance |
One Push ROI White Balance/ Manual Temp-Tint Adjustment |
|
|
Capture/Control API |
Native C/C++ SDK, DirectShow, Twain |
|
|
Capture Mode |
Still Picture and Video |
|
|
Software Environment |
||
|
Operating System |
Windows XP / Vista / 7 / 8 (32 & 64 Bit) |
|
|
OS X (MAC OS X) |
||
|
Linux (Kernel 2.6 or Above) |
||
|
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
|
|
Memory:2GB or More |
||
|
USBPort:USB2.0 High-speed Port |
||
|
Operating Environment |
||
|
Operating Temperature |
-10~60℃ |
|
|
Storage Temperature |
-30~80℃ |
|
|
Operating Humidity |
30~80%RH |
|
|
Storage Humidity |
10~60%RH |
|
|
Power Supply |
Over USB Port |
|
Optional Accessories
|
Order Number |
Specification Description |
|
ADA.17.FMA050 |
0.5x Fixed Adapter for Eyepiece Tube or Trinocular Tube(23.2mm) |
|
ADA.17.AMA050 |
0.5x Adjustable Adapter for Eyepiece Tube or Trinocular Tube(23.2mm) |
|
ADA.17.EDA30 |
23.2mm to 30mm Eyepiece Adapter |
|
ADA.17.EDA305 |
23.2mm to 30.50mm Eyepiece Adapter |
Camera Standard Packing List

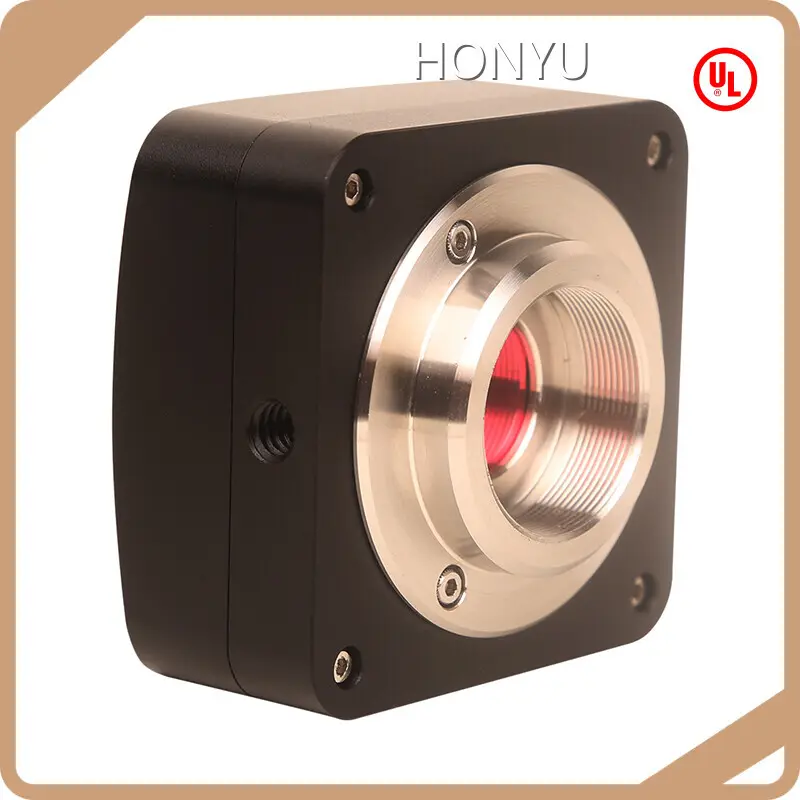

• One USB 2.0 5.1MP Digital Camera
• One high-speed USB 2.0 Cable
• One CD with Driver and Software
products display
Company Advantages
· Fine materials: HONYU microscope stand holder is manufactured based on high quality raw materials which are supplied by our reliable partners. These partners are all well-selected by us.
· With the extraordinary quality, it can attract the attention of most customers.
· microscope stand holder is highly competitive in the overseas market and enjoys high popularity and reputation.
Company Features
· Ningbo Haishu HONYU Opto-Electro Co., Ltd is an experienced manufacturer that produces microscope stand holder and other products based on in-depth research on the industry.
· We are located in a wonderful position where embraces both resources and transportation advantages. This helps us cut costs, reducing inventory, as well as speed up delivery times.
· We engage pro-actively with suppliers in an effort to ensure ethical practices and help our customers find sustainable solutions to critical issues bringing about real changes.
Application of the Product
The microscope stand holder developed by our company can be applied in different fields.
We are always aware of new trends and developments in the market, so we can provide our customers with the industry-leading one-stop solutions.
HONYU is a professional optical supplier in China with more than 20 years’ experience in Microscopes.
