Comprehensive Microscope Solution Supplier for Biological and Industrial Inspection.

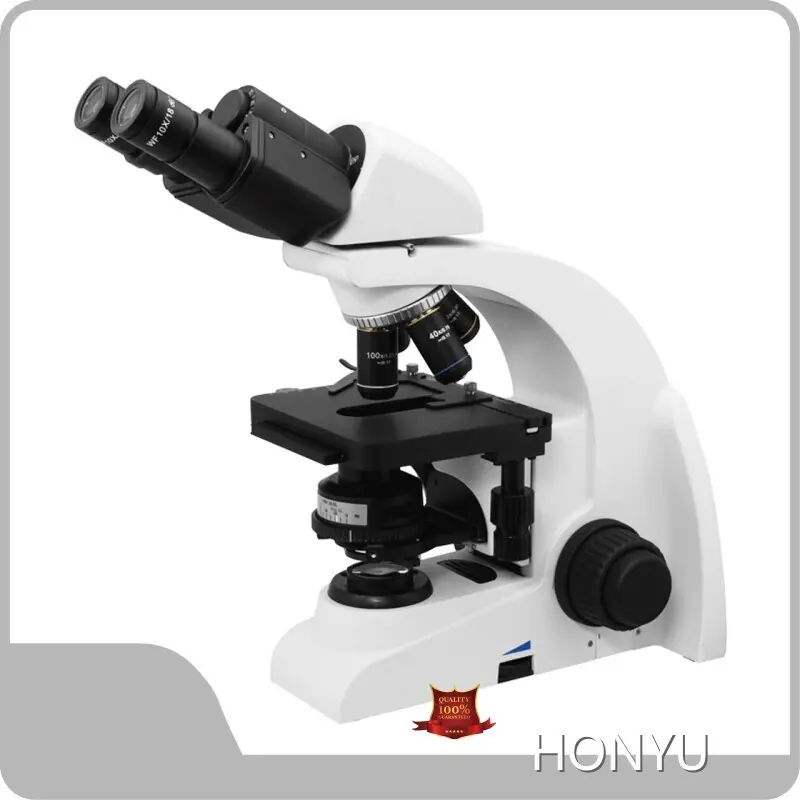

HONYU Microscope for Biology Students Manufacturing
Features
• Adopting infinity optical system
• Equipped with infinity achromatic objectives
• Four wide-field magnification power: 40X, 100X, 400X, 1000X
• Coaxial coarse and fine focus system
Specification
|
Head |
Binocular, Interpupillary distance 52-75mm, 30°inclined, 360° rotatable, ±5 Diopter Adjustment |
|
Eyepiece |
WF10x/18mm, High Eye-point Up To 21mm |
|
Objective |
Infinity Achromatic Objective 4X |
|
Infinity Achromatic Objective10X |
|
|
Infinity Achromatic Objective40X(S) |
|
|
Infinity Achromatic Objective100X(S)/(Oil) |
|
|
Condensor |
Abbe N.A.1.25 With Iris Diaphragm And With Socket For Phase Contrast / Dark Field Slider, Centering Adjustable, Color-Coded Diaphragm Scale Marking Corresponded With The Objectives Of Different Powe |
|
Stage |
Double Layer Mechanical, 142mmX135mm, Range: 76x52mm Low Position, Right Hand Control, X-Y Coaxial Control Knob, Two Slides Holder |
|
Focusing system |
Low Positioned, Coaxial Coarse & Fine Focusing System With Tension Adjustment And Up-Limited, Coarse Knob Coarse 14mm/Rot, Fine 0.1mm/Rot, Minimum Reading 1μm On Left-Side Fine Knob, Moving Range 20mm |
|
Nosepiece |
Quadruple, Revolving Nosepiece |
|
Light |
Kohler Illuminator(No Field Diaphragm) |
|
Electrics for 6V20W Halogen |
|
|
Filter |
Blue Filter (φ32, No Blue Filter for LED) |
|
Bulbs |
6V20W Osram Halogen Bulb |
|
250V/3.15A Φ5X20 Fuse |
Optional Accessories
|
Head |
Binocular, Interpupillary distance 48-75mm, 30°inclined, 360° rotatable, ±5 Diopter Adjustment |
|
Eyepiece |
WF10X20mm Eyepieces |
|
WF16X13mm Eyepieces |
|
|
WF10X18mm Eyepiece (Point) |
|
|
WF10X20mm Eyepiece (Point) |
|
|
WF10X20mm Reticule Eyepiece |
|
|
WF10X18mm Reticule Eyepiece |
|
|
Objective |
Infinity Plan Achromatic Objective 4X |
|
Infinity Plan Achromatic Objective 10X |
|
|
Infinity Plan Achromatic Objective 20X(S) |
|
|
Infinity Plan Achromatic Objective 40X(S) |
|
|
Infinity Plan Achromatic Objective 60X(S) |
|
|
Infinity Plan Achromatic Objective 100X(S)/(Oil) |
|
|
Stage |
Double Layer Mechanical, Size:156mmX138mm, Range: 76x54mm Low Position, Right Hand Control, X-Y Coaxial Control Knob, Two Slides Holder |
|
Nosepiece |
Quintuple, Revolving Nosepiece |
|
Light |
Electrics for 3W LED(with Rechargeable Battery) |
|
Electrics for 3W LED |
|
|
LED Rechargeable Battery |
|
|
Reflected Mirror |
|
|
Filter |
Green Filter (φ32) |
|
Yellow Filter (φ32) |
|
|
Ground Grass (φ32) |
|
|
Polarizing Kits |
Polarizer |
|
Analyzer |
|
|
Bulbs |
3W LED Bulb |
products display
Company Advantages
· To meet the global needs, HONYU microscope for biology students adopts internationally-proven materials.
· This product has long service life and excellent performance.
· Aided by our experienced team, the customer service of HONYU is highly recommended by our customers.
Company Features
· Ningbo Haishu HONYU Opto-Electro Co., Ltd has its excellent microscope for biology students to satisfy the needs of customers.
· Ningbo Haishu HONYU Opto-Electro Co., Ltd uses advanced technologies, processes and equipment for microscope for biology students.
· Lifetime warranty & Technical support in a lifetime are promised for our microscope for biology students. Ask online!
Application of the Product
HONYU's microscope for biology students has been widely used in many industries.
We listen carefully to customer's requests and provide targeted solutions based on the bottleneck of customer. Therefore, we can help our customers to better solve problems.
HONYU is a professional optical supplier in China with more than 20 years’ experience in Microscopes.
