Product details of the microscope factory
Product Information
Ningbo Haishu HONYU Opto-Electro Co., Ltd put lots of time and energy even on outline of microscope factory. Its reliable performance is guaranteed with advance technology. This product has found applications in many other industries.
Features
• Five Wide-field magnification settings: 50X to 500X
• Long working distance plan achromatic objectives
• Equipped with analyzer and polarizer
Specification
|
Eyepiece |
High Eye-point Wide Field Plan Eyepiece PL10X/22mm |
● |
|
High Eye-point Wide Field Plan Eyepiece PL10X/22mm,with reticle |
Optional |
|
|
High Eye-point Wide Field Plan Eyepiece PL10X/22mm，Diopter adjustable |
Optional |
|
|
High Eye-point Wide Field Plan Eyepiece PL15X/16mm |
Optional |
|
|
Head |
Compensation Trinocular Head |
● |
|
30° Inclined, 360° Rotatable, Interpupillary Distance 54-75mm, Light spliting ratio: 100:0 or 50:50 ,Diopter +/-5 Adjustable. |
|
|
|
Compensation Binocular Head |
Optional |
|
|
30° Inclined, 360° Rotatable, Interpupillary Distance 54-75mm,,Diopter +/-5 Adjustable. |
|
|
|
Objective |

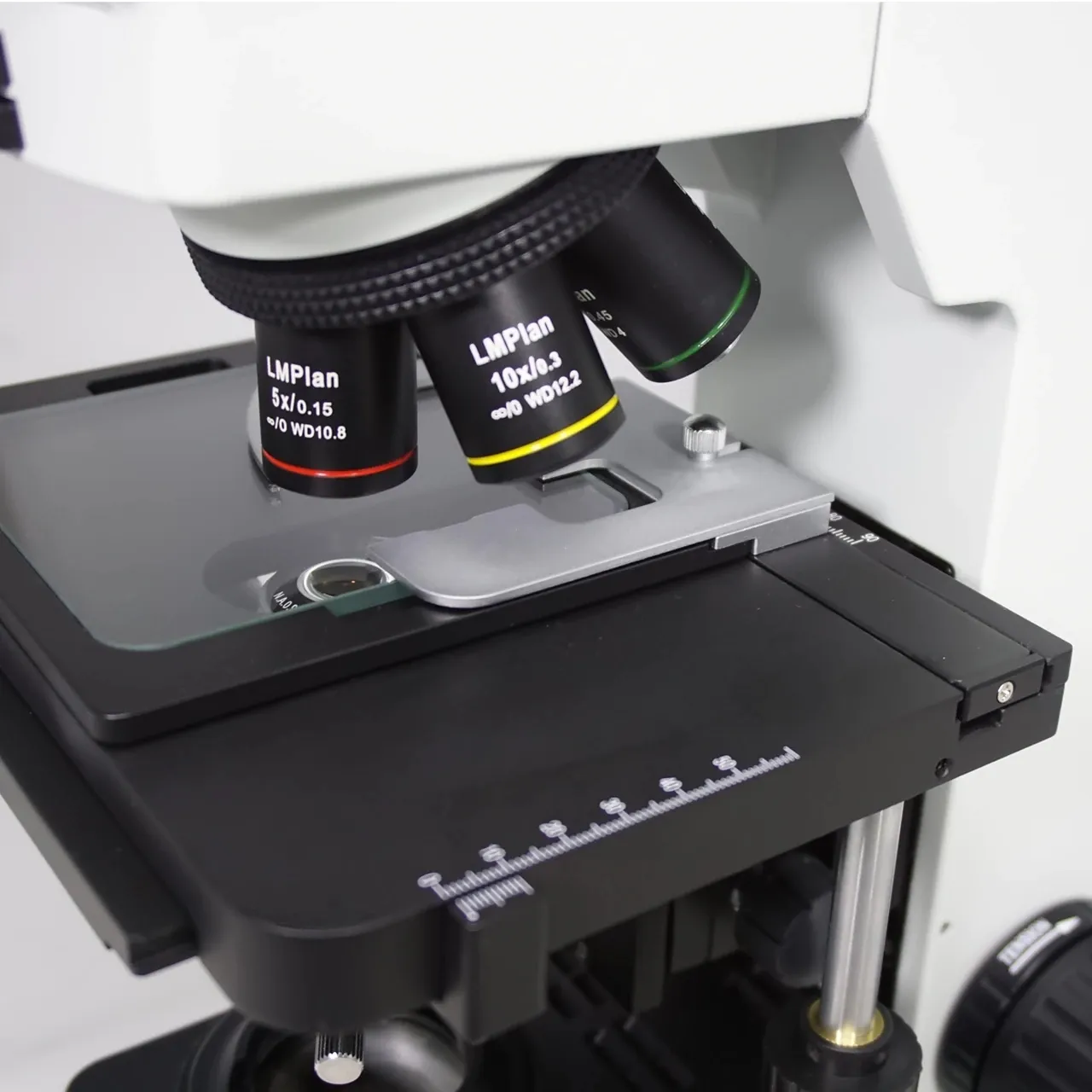

LWD Infinity Plan Achromatic Metallurgical Objectives 5X LMPL5X/0.15 WD10.8MM |
● |
|
LWD Infinity Plan Achromatic Metallurgical Objectives 10X LMPL10X/0.3 WD10MM |
● |
|
|
LWD Infinity Plan Achromatic Metallurgical Objectives 20X LMPL20X/0.45 WD4MM |
● |
|
|
LWD Infinity Plan Achromatic Metallurgical Objectives 50X LMPL50X/0.55 WD7.9MM |
● |
|
|
LWD Infinity Plan Achromatic Metallurgical Objectives 100X LMPL100X/0.8 WD2.1MM |
Optional |
|
|
Nosepiece |
Back-Forward, 5 Holes Revolving Nosepiece, Inward |
● |
|
Stage |
For Transmit & Reflect Light, |
● |
|
--Double Layer Mechanical Stage 175x145mm, Moving Range 76*42mm, X/Y Moving Coaxial Adjustment With Glass Plate, |
|
|
|
--Coase Moving range:28mm; Max Sample height:28mm, Division:0.002mm |
|
|
|
--with Tension adjustment loc,Top limit Kit. |
|
|
|
For Reflect Light, |
|
|
|
--Double Layer Mechanical Stage 175x145mm, Moving Range 76*42mm, X/Y Moving Coaxial Adjustment |
Optional |
|
|
With Metal Plate |
|
|
|
--Coase Moving range:28mm; Max Sample height: 78mm, Division:0.002mm |
|
|
|
Light Source |
Reflected Light, Lamp House With Single 5W LED, Warm Color, Koehler Illuminator WIth Oblique Light Device, Center Adjustable Field And Aperture Diaphragm , |
● |
|
Universal Voltage: 100-240V |
|
|
|
Transmitted Light, Lamp House With Single 5W LED, Warm Color |
● |
|
|
Universal Voltage: 100-240V |
|
|
|
Condenser |
N.A. 0.9 Swing-out Achromatic Condenser For Transmit Light, With Center Adjustable Aperture Iris Diaphragm |
● |
|
Power Voltage |
Wide Range Voltage 100~240V AC 50/60Hz |
● |
|
IF Filter |
Blue IF Filter ,(for reflection):≤480nm |
Optional |
|
Green IF Filter ,(for reflection):520-570nm |
Optional |
|
|
Red IF Filter ,(for reflection):630-750nm |
Optional |
|
|
Natural IF Filter, ,(for reflection) |
Optional |
|
|
Filter |
Yellow Filter（?45） |
Optional |
|
Green Filter（?45） |
Optional |
|
|
Blue Filter（?45） |
Optional |
|
|
Naturel Filter（?45） |
Optional |
|
|
Polarizing kits |
30 Polarizer for reflection) |
Optional |
|
40 Polarizer (for transmitted) |
Optional |
|
|
360° Rrotatable,Can Be Out Of Light Path. |
Optional |
|
|
CCD Adapter |
1XCCD adapter ,adjustable |
Optional |
|
2/3CCD adapter, adjustable |
Optional |
|
|
1/2C CCD adapter, adjustable |
Optional |
products display
