HONYU Metallurgical Microscope with Image Analyzer Design
Product details of the metallurgical microscope with image analyzer
Quick Detail
HONYU metallurgical microscope with image analyzer is manufactured from upper material and technique. This product is thoroughly checked and is able to endure long-term usage. The metallurgical microscope with image analyzer managed by HONYU is widely used in industry. Our customers vary from industries, indicating the strong applicability of the product.
Product Description
Based on the professionalism of pursuing excellence, we strive for perfection in every detail of the product.
Features
• Five Wide-field magnification settings: 40X to 400X
• Long working distance plan achromatic objectives
• Equipped with analyzer and polarizer
Specification
|
Head |
Trinocular head inclined at 30 °, interpupillary distance adjustment: 48-75mm |
|
Eyepiece |
High-point ,extra wide field eyepiece EW10×/20 ( Dia.30mm) |
|
Metallurgical Infinity Plan Objective |
Metallurgical Infinity Plan Objective 4X/0.1 (non-cover) |
|
Metallurgical Infinity Plan Objective 10X/0.25 (non-cover) |
|
|
Metallurgical Infinity Plan Objective 20X/0.4 (non-cover) |
|
|
Metallurgical Infinity Plan Objective 40X/0.6 (non-cover) |
|
|
Nosepiece |
Quintuple nosepiece |
|
Stage |
Plain stage 160x250mm, center hole Φ10mm, Φ15mm, Φ25mm |
|
Focusing |
Coaxial Coarse and Fine Focusing, vertical objective movement. Coarse Range 37.7mm/per rotation, Division 0.2mm/per rotation |
|
Illumination |
Kohler Illumination, Halogen Lamp 6V30W, Brightness Adjustable |
|
Filter |
Blue, Yellow. Green and ground glass |
|
Polarizing |
Polarization attachment |
Optional Accessories
|
Items |
Specification |
Order No. |
|
Metallurgical Infinity Plan Objective |
Infinity Plan Achromatic Objective 50X/0.75 (non-cover) |
OBJ.06.MIPL |
|
Infinity Plan Achromatic Objective 80X/0.9 (non-cover) |
OBJ.06.MIPL |
|
|
Infinity Plan Achromatic Objective 100x/0.80 (non-cover) |
OBJ.06.MIPL |
|
|
Stage |
Attachable X-Y mechanical stage, coaxial control, movement range 120 x78mm Auxiliary stage:70x180mm |
STD.06.XY |
|
Adapter |
C-Mount adapter |
ADA.06.C1X |

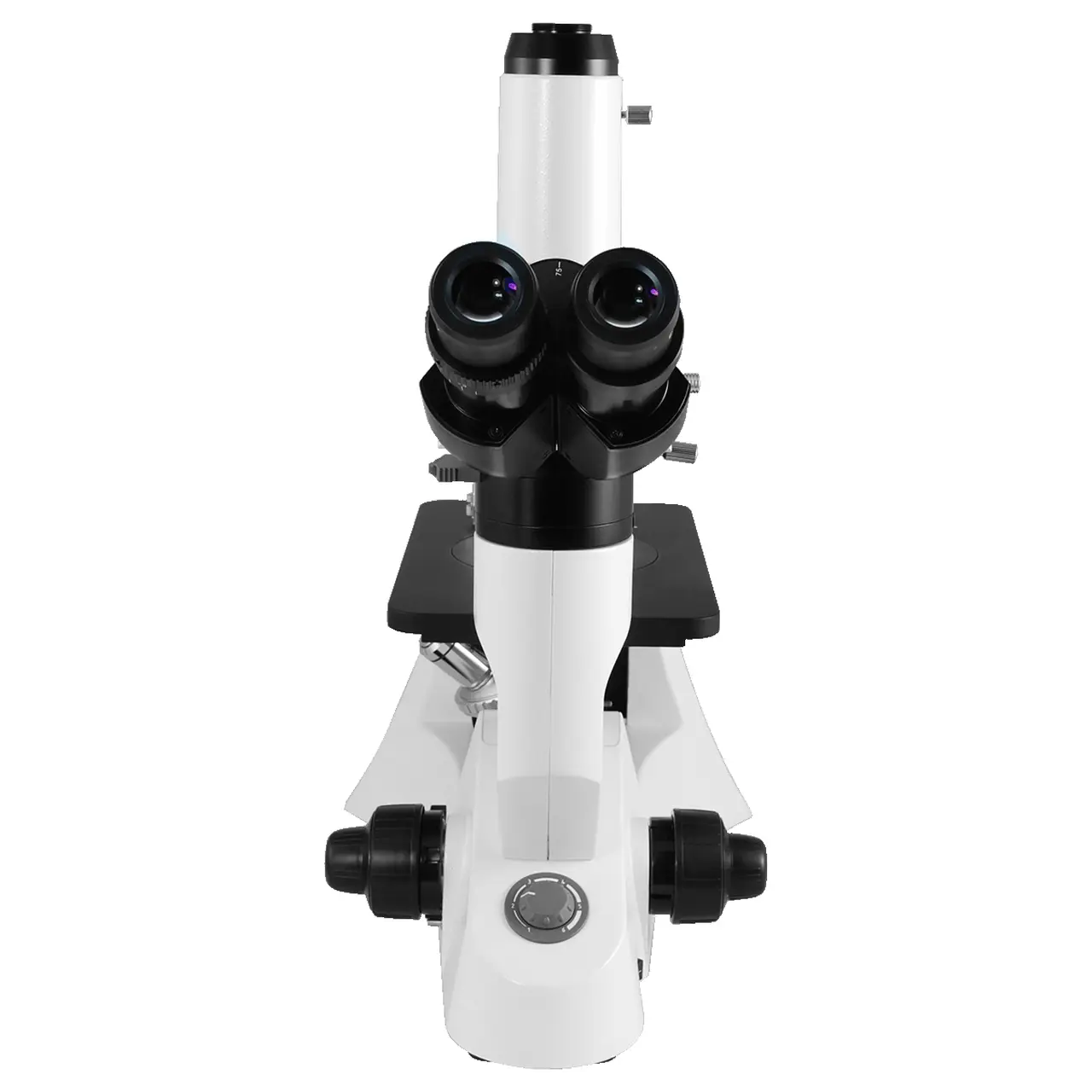

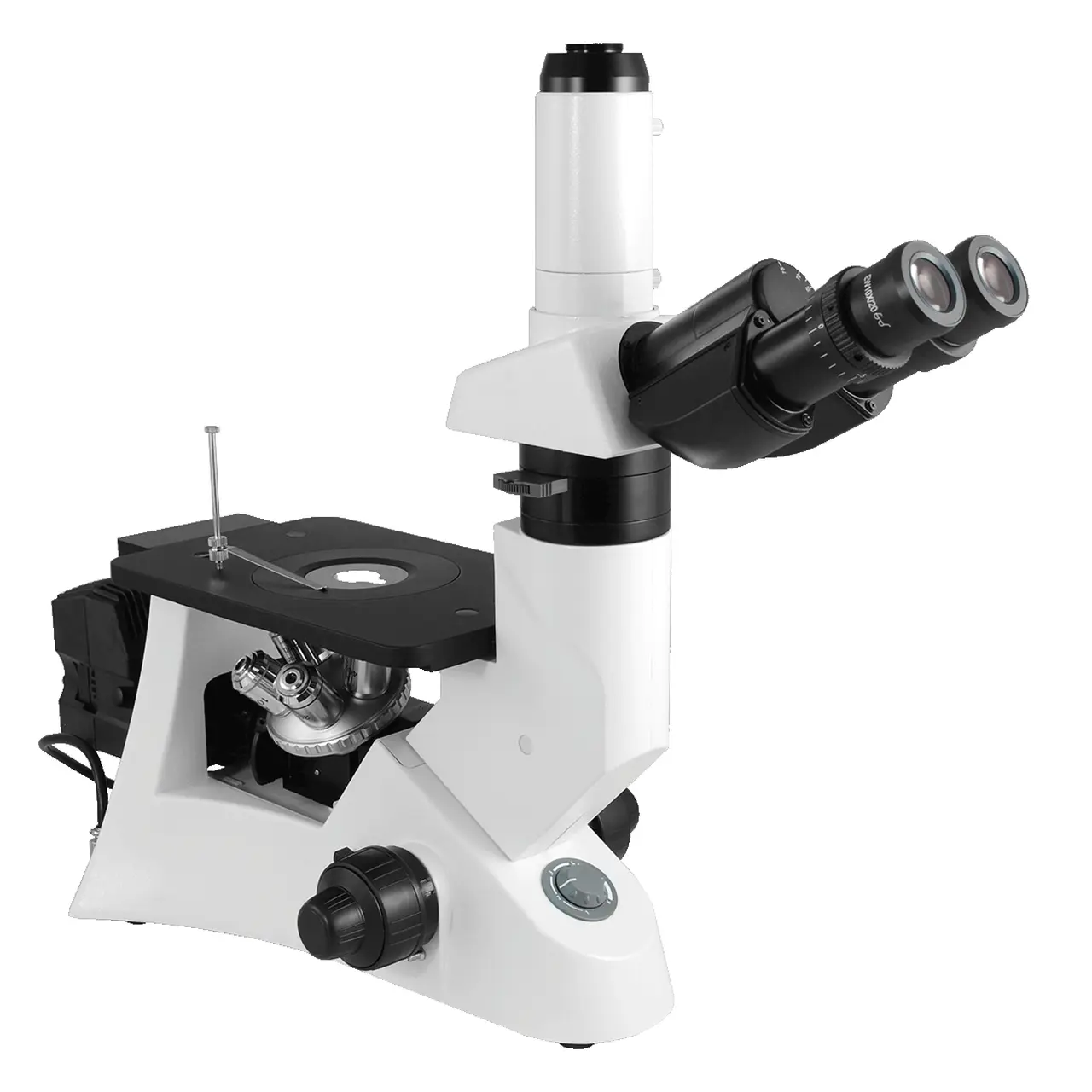

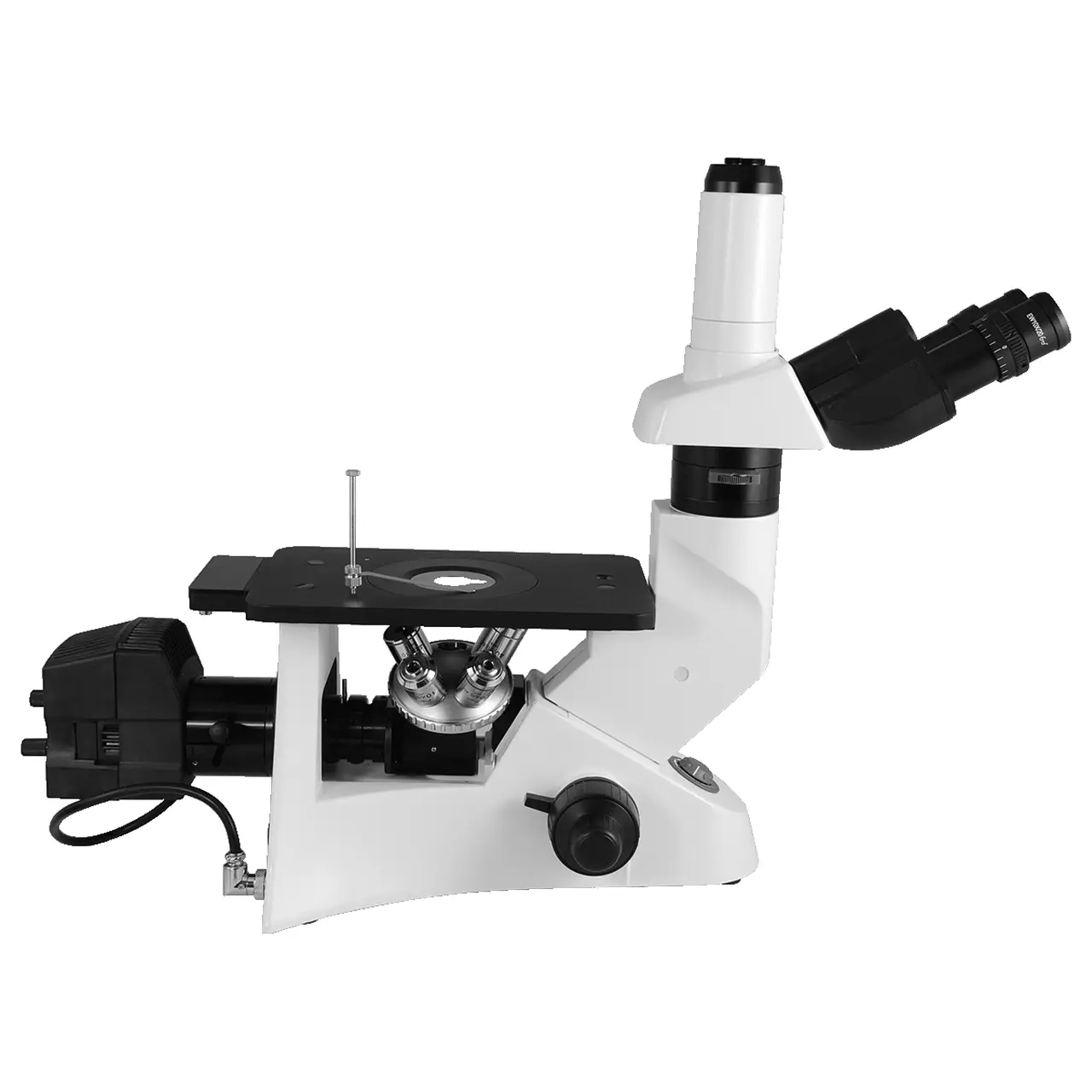

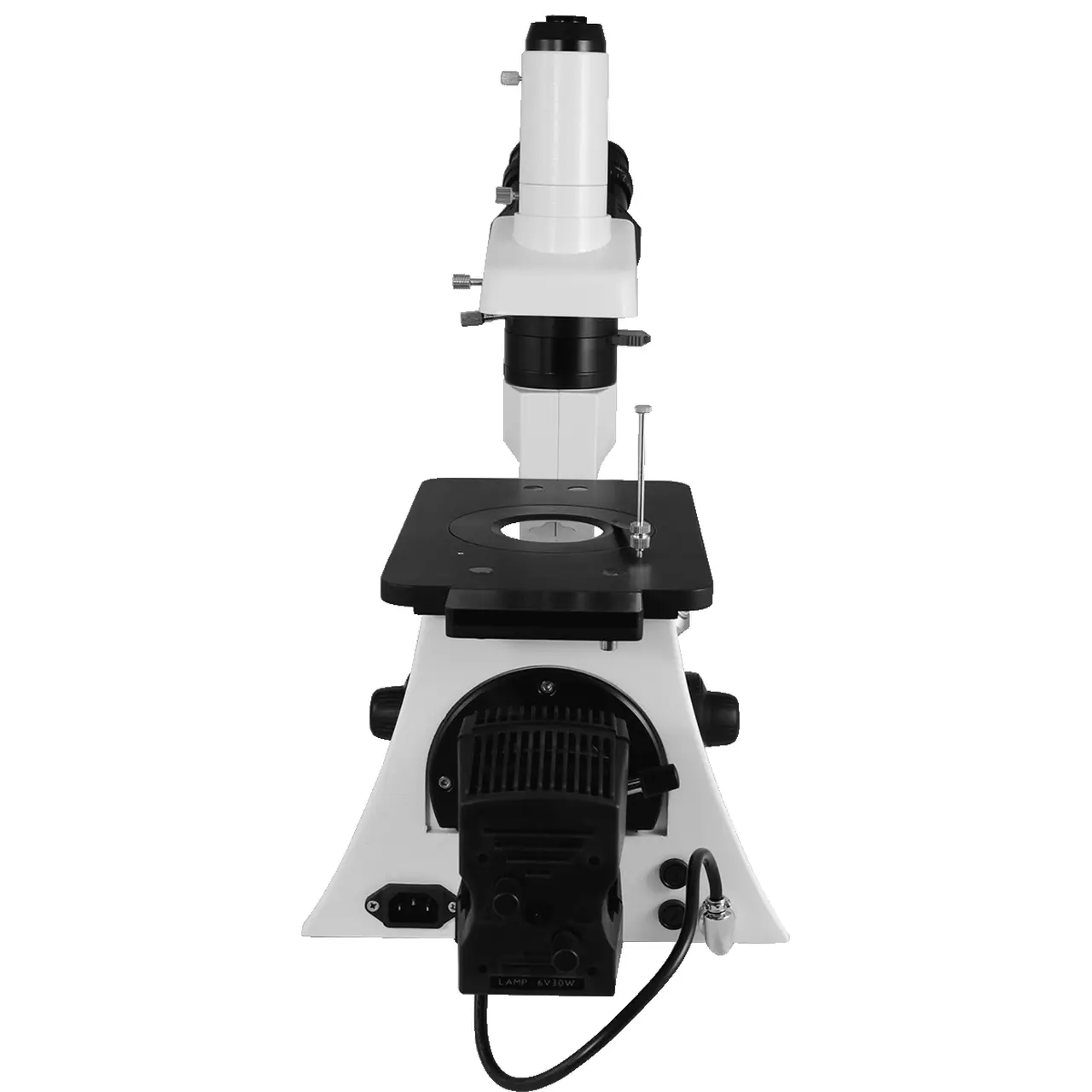

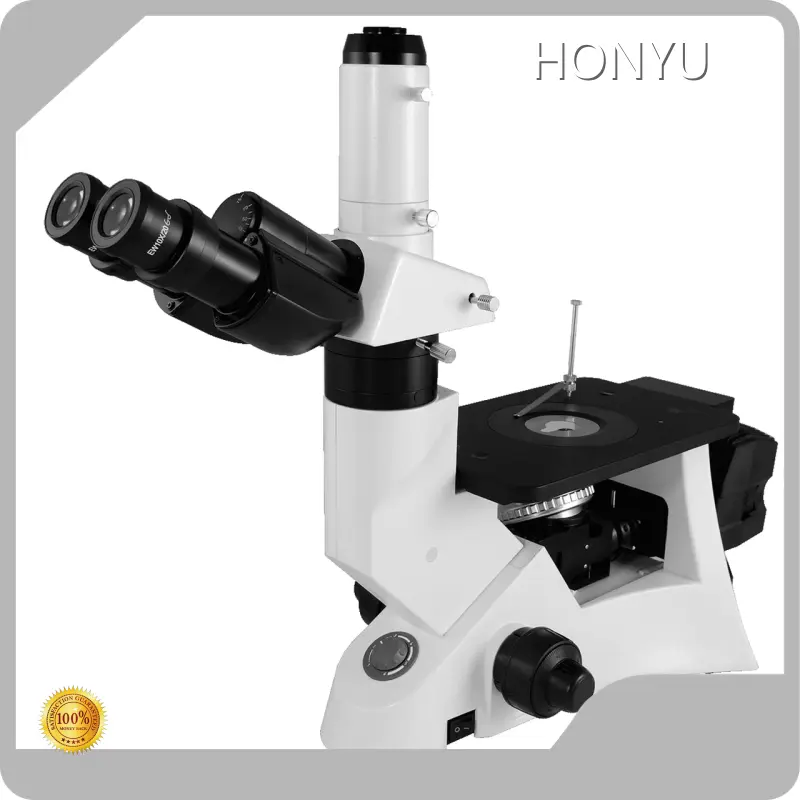

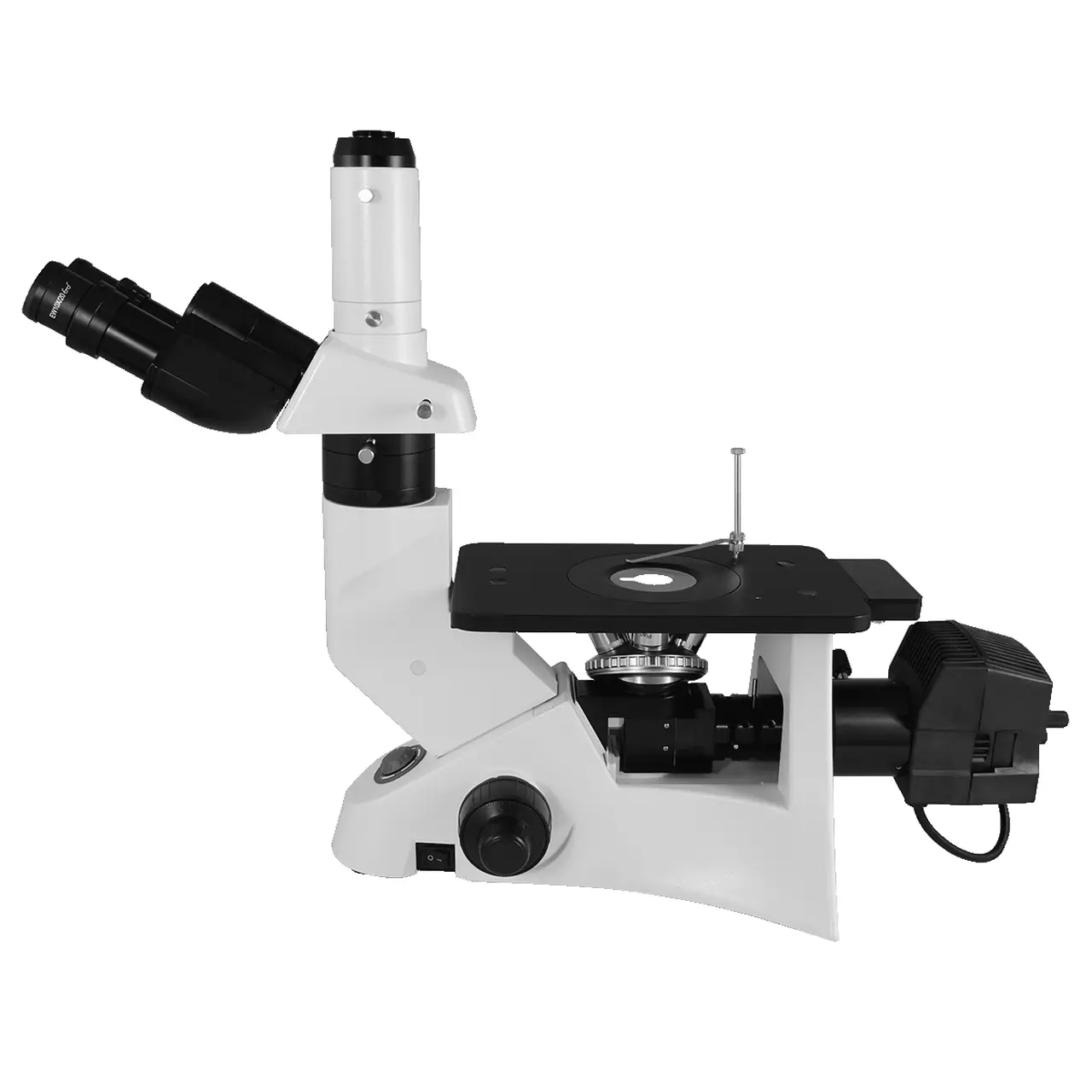

products display
