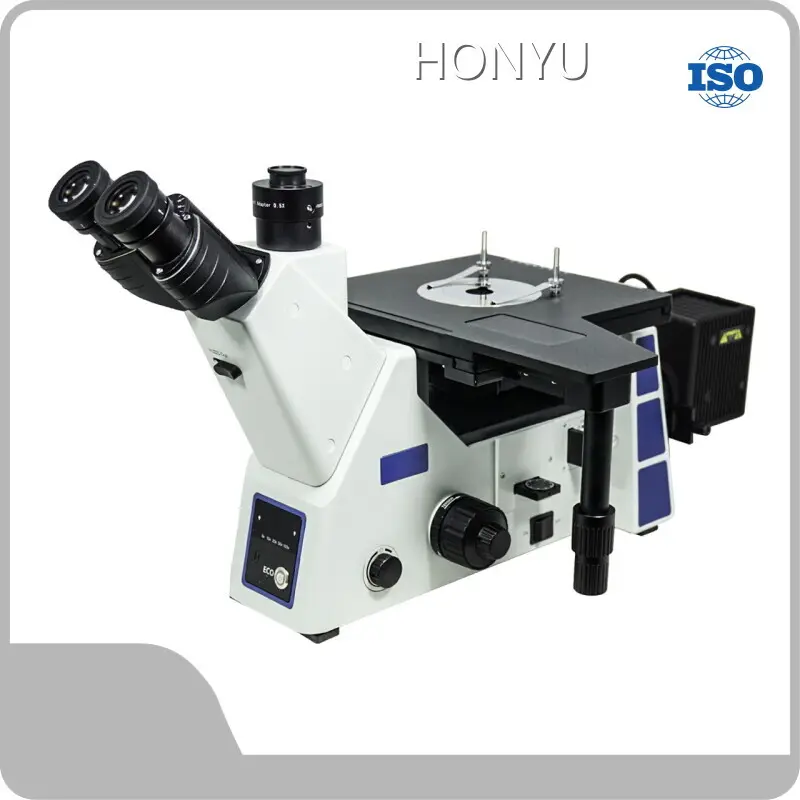

Product details of the metallurgical microscope supplier
Product Description
The main components of metallurgical microscope supplier are imported products. We conduct a variety of rigorous tests to ensure that our products are defect free and meet high quality standards. The product has a more promising prospect in the application compared to other products in the industry.
Features
• Five Wide-field magnification settings: 50X to 500X
• Long working distance plan achromatic objectives
• Equipped with analyzer and polarizer
Specification
|
Optical system |
Infinity color correct optical system |
|
Viewing head |
45 degree inclined trinocular viewing head, 360 degree rotatable; interpupillary distance 50-75mm, binocular: trinocular=100:0 or 0:100 |
|
Eyepiece |
High eye point wide field plan eyepiece PL10X22mm, with adjustable diopter, reticle attachable |
|
Objective |
Long working distance bright & dark field plan achromatic metallurgical objectives 5X, 10X, 20X, 50X, (5-10-20X IS for DIC ) |
|
Nosepiece |
Inward quintuple bright field nosepiece (DIC slot), with built-in magnification sensor |
|
Frame |
Reflected frame low-position coaxial focusing system, coarse range 9mm (up 6.5mm, down 2.5mm), fine precision 0.002mm with upper limit and tension adjustment; with switch for bright and dark field; with variable field diaphragm and aperture |
|
diaphragm, both center adjustable; with slots for filters and polarizing kit; with light intensity indicator; with infrared induction; with magnification display |
|
|
Illumination |
External power adapter, input 100V-240V, output 15V13.4A, light intensity adjustable |
|
Stage |
Three layers rackless stage, size: 240mm (W) X 250mm (L), moving range: 50X 50mm; low-position handle knob |
|
Filters |
LBD filter |
|
Polarizing Kits |
Polarizer, |
|
360 degree rotatable analyzer, |
Optional Accessories
|
Eeypiece |
High eye point wide field plan eyepiece PL10X22mm, with adjustable diopter, reticle attachable |
|
Objective |
Long working distance plan achromatic metallurgical objectives 5X, 10X, 20X, 50X |
|
Long working distance bright & dark field plan achromatic metallurgical objectives100X |
|
|
Camera adapter |
0.35X, 0.5X, 0.65X, 1X focusing C-mount |
|
DIC Kits |
DIC attachment |
|
Filters |
Blue, Yellow, Green |
|
Polarizing Kits |
fixed analyzer, |
products display
