Comprehensive Microscope Solution Supplier for Biological and Industrial Inspection.
Company Advantages
· HONYU digital microscope manufacturers is manufactured/processed under standardization production system.
· The product undergoes rigorous quality checks under the supervision of qualified professionals to ensure quality.
· The product is available at an affordable price and is currently very popular in the market and is believed to be used more widely in the future.
Features

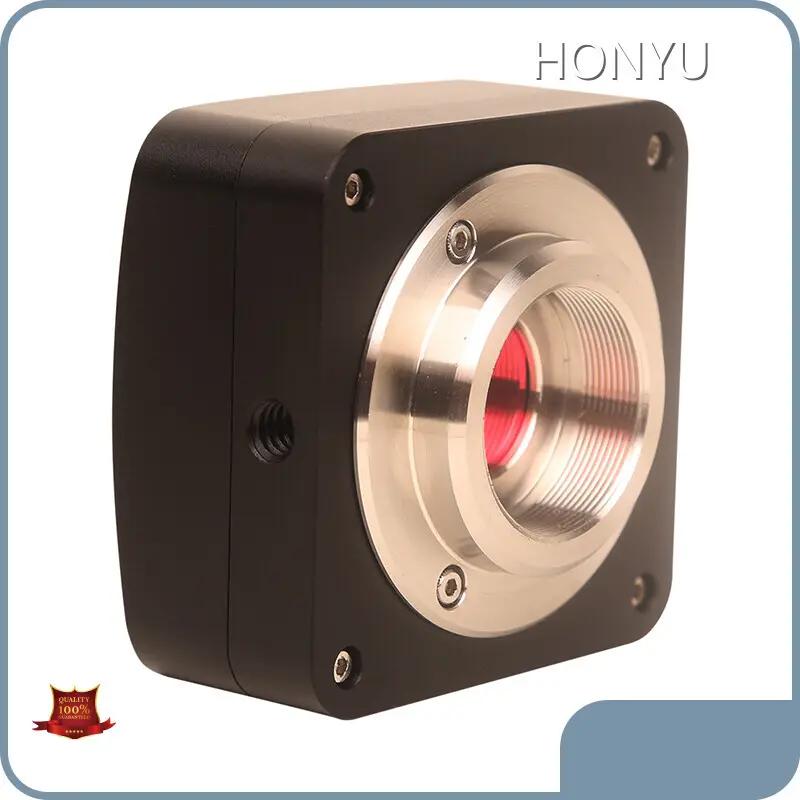

• USB2.0 high speed digital camera with CMOS sensor
• Capable of recording real-time, high-definition videos and capturing 5.1MP still images
• Compatible with Windows XP/Vista/7/8, Mac OS X and Linux
• Capable of being attachable to any microscopes, telescopes, endoscopes with C-mount
Specification
Hardware Configuration |
||
Max. Resolution |
2592x1944 (5.1 Mega Pixels) |
|
Pixel Size |
2.2μm x 2.2μm |
|
Frame Size and Rate |
5fps@2592x1944, 18fps@1280x960, 60fps@640x480 |
|
Sensor Model |
APTINA MT9P001(Color) |
|
Sensor Size |
1/2.5 inch (5.7mm(H) x 4.28mm(V)) |
|
Sensitivity |
0.53 V/lux-sec |
|
DynamicRange |
66.5dB |
|
A/D Converter |
10-bit, 8-Bit R.G.B to PC |
|
SN Ratio |
40.5dB |
|
Spectral Range |
380-650nm (with IR-filter) |
|
Binning |
1x1, 2x2, 4x4 |
|
Exposure |
0.294ms~2000msms |
|
Color Rendering Technique |
Ultra FineTM Color Engine |
|
White Balance |
One Push ROI White Balance/ Manual Temp-Tint Adjustment |
|
Capture/Control API |
Native C/C++ SDK, DirectShow, Twain |
|
Capture Mode |
Still Picture and Video |
|
Software Environment |
||
Operating System |
Windows XP / Vista / 7 / 8 (32 & 64 Bit) |
|
OS X (MAC OS X) |
||
Linux (Kernel 2.6 or Above) |
||
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
|
Memory:2GB or More |
||
USBPort:USB2.0 High-speed Port |
||
Operating Environment |
||
Operating Temperature |
-10~60℃ |
|
Storage Temperature |
-30~80℃ |
|
Operating Humidity |
30~80%RH |
|
Storage Humidity |
10~60%RH |
|
Power Supply |
Over USB Port |
Optional Accessories
Order Number |
Specification Description |
ADA.17.FMA050 |
0.5x Fixed Adapter for Eyepiece Tube or Trinocular Tube(23.2mm) |
ADA.17.AMA050 |
0.5x Adjustable Adapter for Eyepiece Tube or Trinocular Tube(23.2mm) |
ADA.17.EDA30 |
23.2mm to 30mm Eyepiece Adapter |
ADA.17.EDA305 |
23.2mm to 30.50mm Eyepiece Adapter |
Camera Standard Packing List
• One USB 2.0 5.1MP Digital Camera
• One high-speed USB 2.0 Cable
• One CD with Driver and Software
products display
Company Features
· Being an expert in designing and manufacturing, Ningbo Haishu HONYU Opto-Electro Co., Ltd is highly competent and reliable in providing high-quality digital microscope manufacturers.
· Our company has brought together a pool of client management professionals. They have years of experience and well-trained knowledge in customer relationship management (CRM), which offers us great confidence in better serving clients. The company has built up a project management team. The team has profound expertise and experience in project planning, production control, budget planning, and materials procurement. All these are quite crucial for us to provide professional service to clients. The factory enjoys an outstanding geographical position. The factory is near to the transportation hubs where embraces airport, main roads, and expressways. The location advantage has offered us great benefits in cutting transportation costs.
· We assume the social mission of environmental preservation. We have adopted green innovative design concepts, striving to develop more environmental-friendly products which will not generate pollution. Ask online!
Application of the Product
HONYU's digital microscope manufacturers can be used in multiple industries and fields.
We are always aware of new trends and developments in the market, so we can provide our customers with the industry-leading one-stop solutions.
Enterprise Advantages
HONYU respects and cultivates talents, so as to fulfill their potential. Based on the complete personnel management system, we established a talents team with both ability and virtue.
Close to the customer's needs, our company takes innovation to create a reasonable service plan for customers. Thus, we can build a harmonious relationship with customers, and create a better service experience for customers.
Our company persists in the concept of 'faithful management, continuous improvement', and the tenet of 'quality oriented, customer first'. Based on this, we seek to provide customers with all-round quality services while achieving considerable development. We look forward to working with all new and old customers to create brilliant future.
HONYU was founded in During years of struggling, we have accumulated rich experience and have occupied the market depending on the products and have created glories one after another.
Our series of products sell well in many parts of the country. And they are exported to the EU, Southeast Asia, the Americas and other regions.
