Product details of the custom microscope
Quick Overview
Ningbo Haishu HONYU Opto-Electro Co., Ltd puts great cost and time in the design of custom microscope. Our strict quality control procedures ensure that our products are of good quality. Ningbo Haishu HONYU Opto-Electro Co., Ltd has the most economical and reasonable price for custom microscope.
Product Introduction
More detailed information on custom microscope is shown for you at below.
Features
• Equipped with achromatic objectives
• Four wide-field magnification power: 40X, 100X, 400X, 1000X
• Coaxial coarse and fine focus system
Specification
Head |
STU.65.SM20B: Binocular Head, 45° inclined,360° Rotatable, Interpupillary Distance 48-75mm |
STU.65.SM20T: Trinocular Head, 45° inclined,360° Rotatable, Interpupillary Distance 48-75mm |
|
STU.65.SM20M: Monocular Head, 45° inclined,360° Rotatable |
|
Eyepiece |
WF10X/18mm |
Objective |
Achromatic 4X |
Achromatic 10X |
|
Achromatic 40X, Spring |
|
Achromatic 100X, Spring, Oil |
|
Nosepiece |
Quadruple Revolving Nosepiece |
Stage |
Double Layer Mechanical Stage, Size125mmx115mm, Moving Range: 70mmx30mm |
Focusing |
Coaxial Coarse and Fine Focusing: 0.002mm division |
Condenser |
ABBE N.A.1.25 Condenser with Iris Diaphragm & Filter |
Filter |
Blue Filter |
Light source |
1W LED, with Rechargeable Battery, Type C USB cable, 5V/1A USB Charger |
Note: if shipped by air, Battery not be offered with goods |
Optional Accessories
Biological Microscope |
|
Eyepiece |
WF10X/20mm,Insert Diam23.2mm |
WF16X/13mm,Insert Diam23.2mm |
|
WF20X/12mm, Insert Diam23.2mm |
|
WF25X/8mm, Insert Diam23.2mm |
|
Objective |
Plan Achromatic objective 4X, 10x,40x,100x |

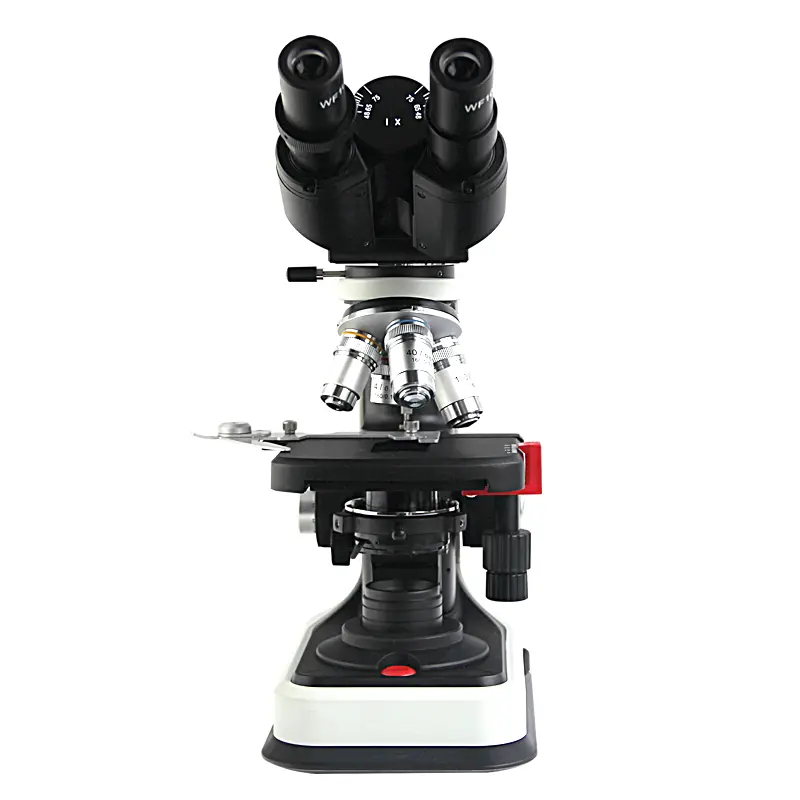

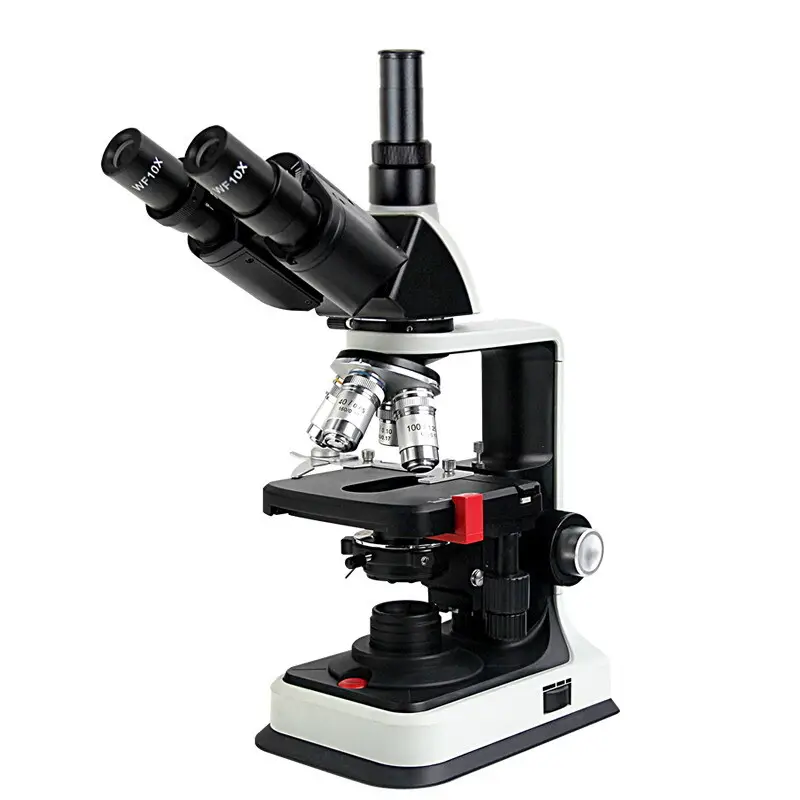

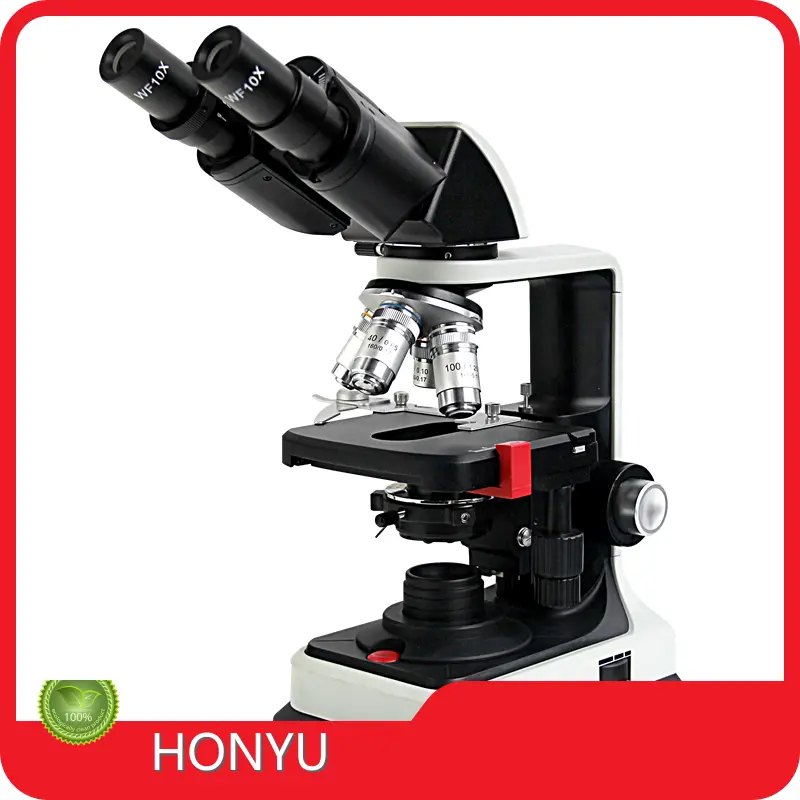

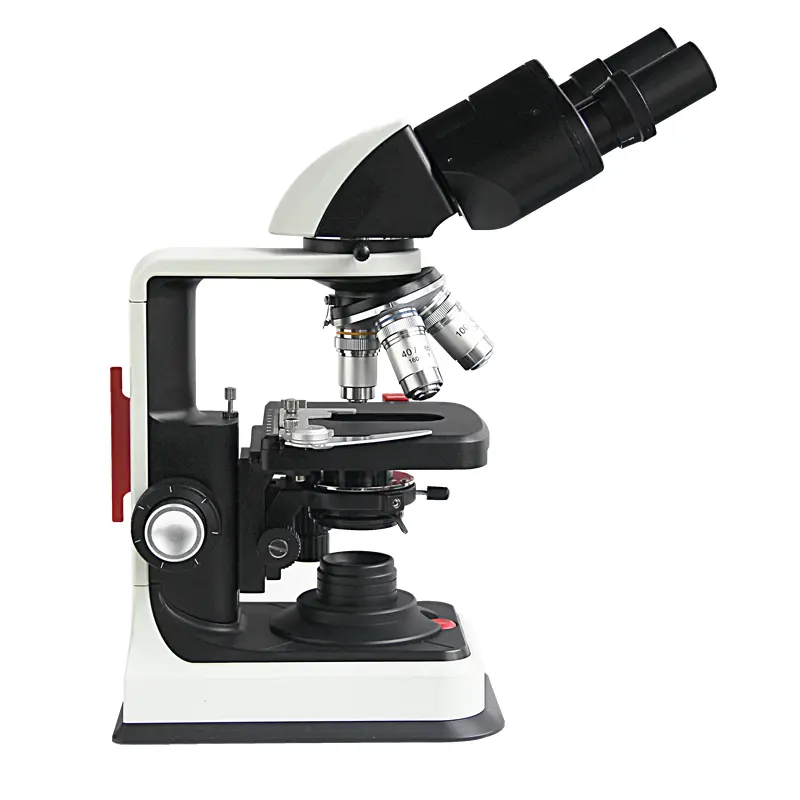

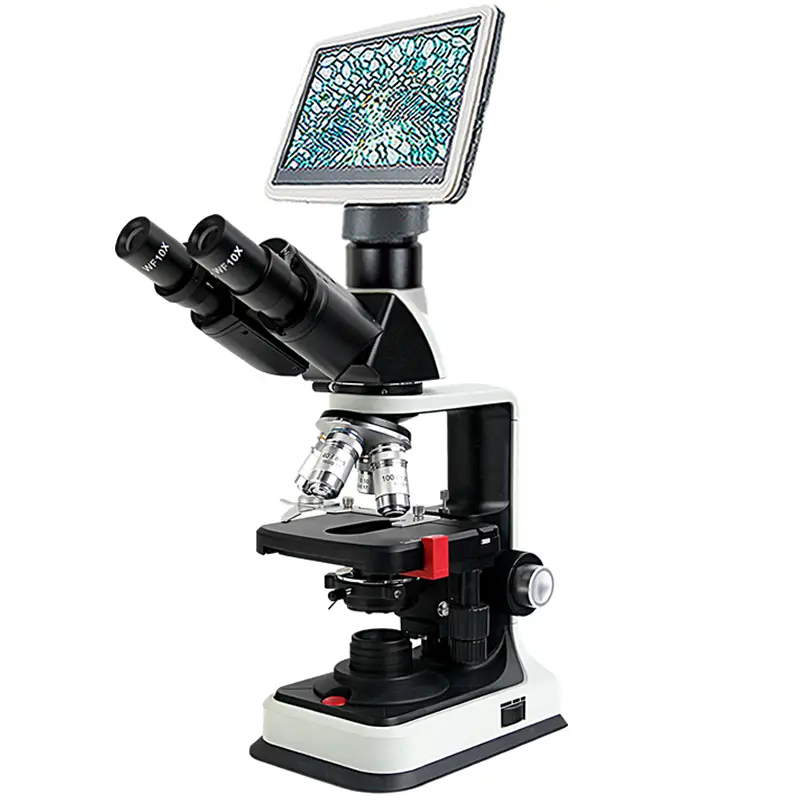

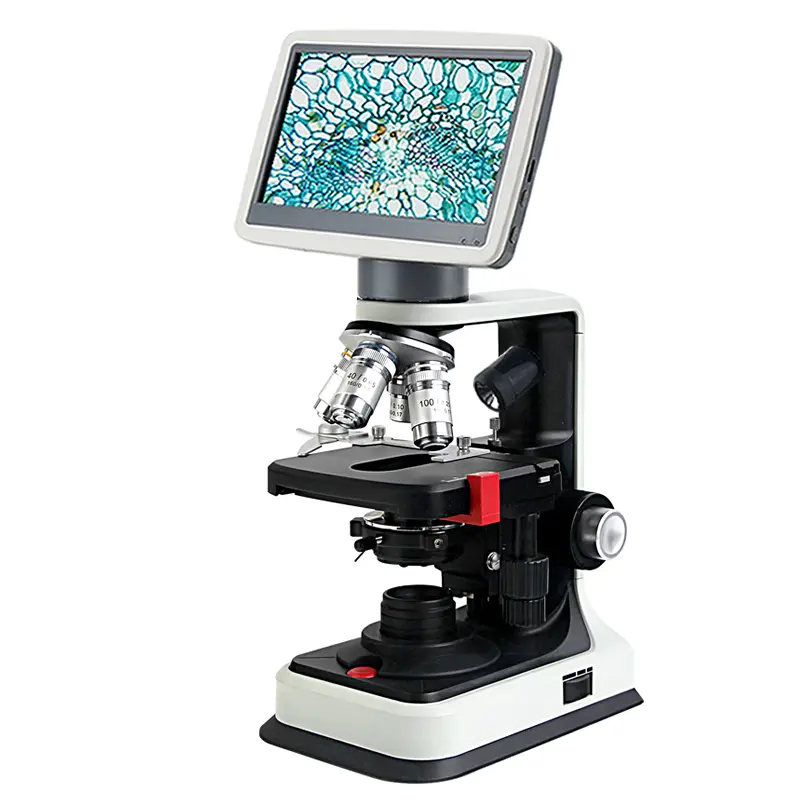

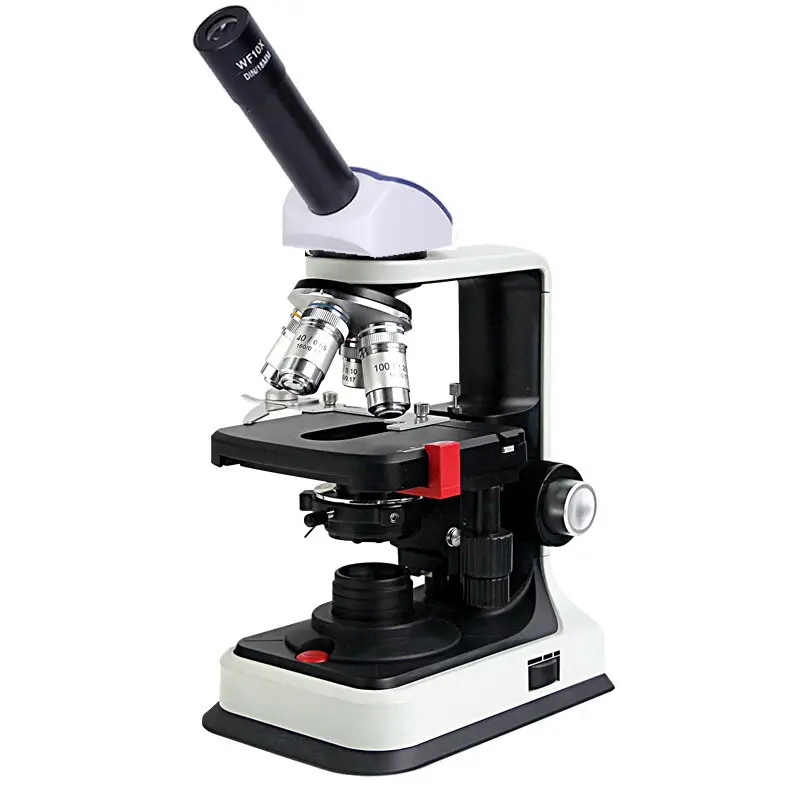

products display
