Highly Ratedsurgical Microscope Manufacturers for Sale

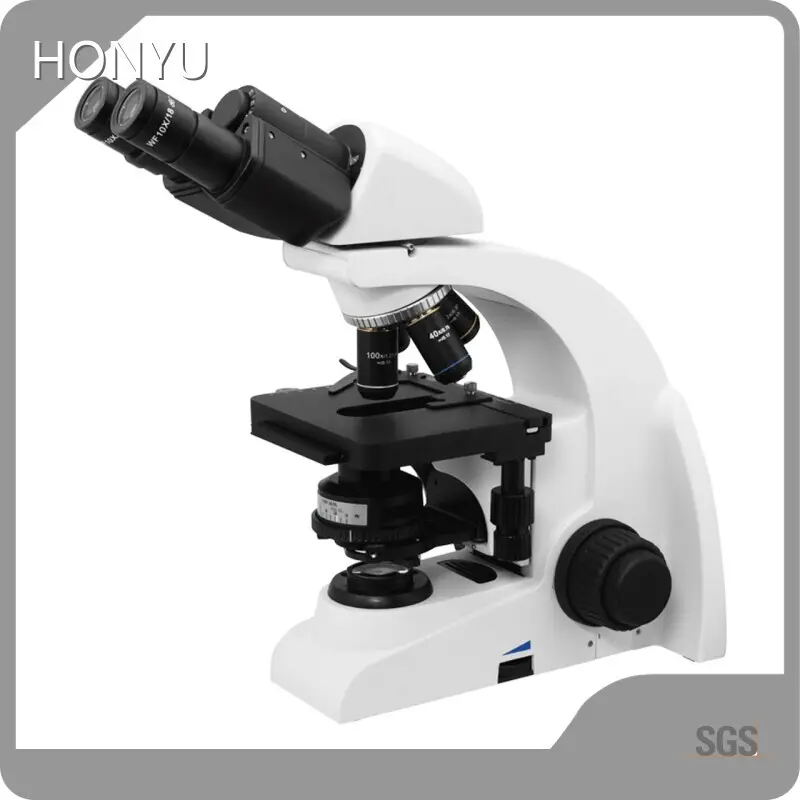

Product details of the surgical microscope manufacturers
Product Introduction
HONYU surgical microscope manufacturers is constructed applying high-end technology and using the finest materials. This product has excellent performance, durable and easy to use. Ningbo Haishu HONYU Opto-Electro Co., Ltd operates in full compliance with the international system.
Features
• Adopting infinity optical system
• Equipped with infinity achromatic objectives
• Four wide-field magnification power: 40X, 100X, 400X, 1000X
• Coaxial coarse and fine focus system
Specification
|
Head |
Binocular, Interpupillary distance 52-75mm, 30°inclined, 360° rotatable, ±5 Diopter Adjustment |
|
Eyepiece |
WF10x/18mm, High Eye-point Up To 21mm |
|
Objective |
Infinity Achromatic Objective 4X |
|
Infinity Achromatic Objective10X |
|
|
Infinity Achromatic Objective40X(S) |
|
|
Infinity Achromatic Objective100X(S)/(Oil) |
|
|
Condensor |
Abbe N.A.1.25 With Iris Diaphragm And With Socket For Phase Contrast / Dark Field Slider, Centering Adjustable, Color-Coded Diaphragm Scale Marking Corresponded With The Objectives Of Different Powe |
|
Stage |
Double Layer Mechanical, 142mmX135mm, Range: 76x52mm Low Position, Right Hand Control, X-Y Coaxial Control Knob, Two Slides Holder |
|
Focusing system |
Low Positioned, Coaxial Coarse & Fine Focusing System With Tension Adjustment And Up-Limited, Coarse Knob Coarse 14mm/Rot, Fine 0.1mm/Rot, Minimum Reading 1μm On Left-Side Fine Knob, Moving Range 20mm |
|
Nosepiece |
Quadruple, Revolving Nosepiece |
|
Light |
Kohler Illuminator(No Field Diaphragm) |
|
Electrics for 6V20W Halogen |
|
|
Filter |
Blue Filter (φ32, No Blue Filter for LED) |
|
Bulbs |
6V20W Osram Halogen Bulb |
|
250V/3.15A Φ5X20 Fuse |
Optional Accessories
|
Head |
Binocular, Interpupillary distance 48-75mm, 30°inclined, 360° rotatable, ±5 Diopter Adjustment |
|
Eyepiece |
WF10X20mm Eyepieces |
|
WF16X13mm Eyepieces |
|
|
WF10X18mm Eyepiece (Point) |
|
|
WF10X20mm Eyepiece (Point) |
|
|
WF10X20mm Reticule Eyepiece |
|
|
WF10X18mm Reticule Eyepiece |
|
|
Objective |
Infinity Plan Achromatic Objective 4X |
|
Infinity Plan Achromatic Objective 10X |
|
|
Infinity Plan Achromatic Objective 20X(S) |
|
|
Infinity Plan Achromatic Objective 40X(S) |
|
|
Infinity Plan Achromatic Objective 60X(S) |
|
|
Infinity Plan Achromatic Objective 100X(S)/(Oil) |
|
|
Stage |
Double Layer Mechanical, Size:156mmX138mm, Range: 76x54mm Low Position, Right Hand Control, X-Y Coaxial Control Knob, Two Slides Holder |
|
Nosepiece |
Quintuple, Revolving Nosepiece |
|
Light |
Electrics for 3W LED(with Rechargeable Battery) |
|
Electrics for 3W LED |
|
|
LED Rechargeable Battery |
|
|
Reflected Mirror |
|
|
Filter |
Green Filter (φ32) |
|
Yellow Filter (φ32) |
|
|
Ground Grass (φ32) |
|
|
Polarizing Kits |
Polarizer |
|
Analyzer |
|
|
Bulbs |
3W LED Bulb |
products display
Company Feature
• Our company has a experienced backbone team with skilled business and great work ability, which is ready for continuous development and business development in the future.
• HONYU, built in has been developing in the industry for years. We have accumulated rich industry experience and have gained great achievements.
• provides customers with a full range of services to meet the individual needs of different customers.
• Multiple traffic lines gather in HONYU's location. This provides advantages for traffic and helps achieve the efficient distribution of various products.
HONYU is dedicated to dealing with your problems about tents purchase. We provide you with a pleasant purchase experience!
HONYU is a professional optical supplier in China with more than 20 years’ experience in Microscopes.
