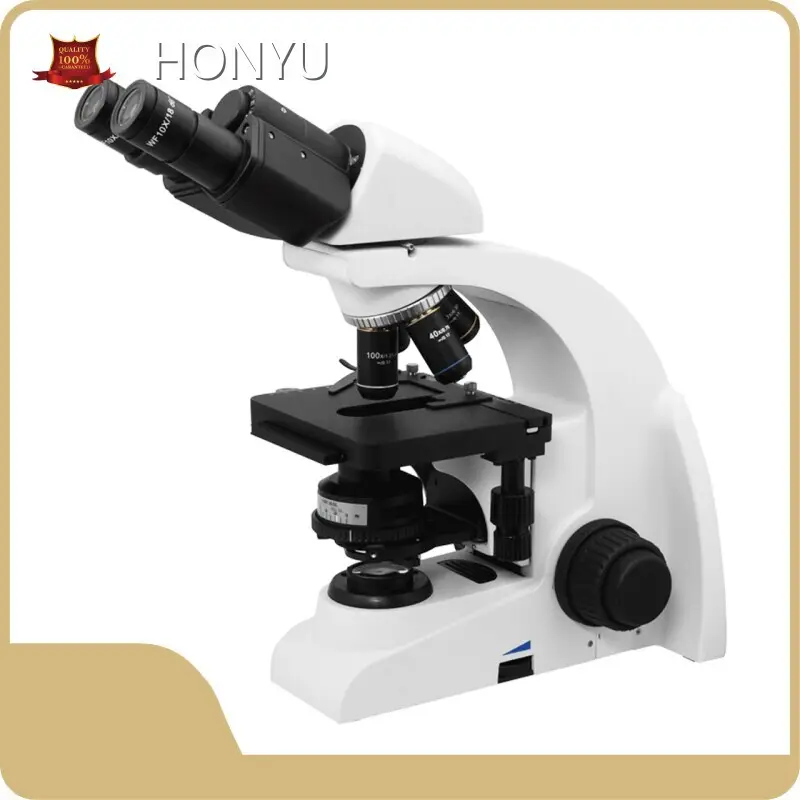

Good Selling Optical Microscope Manufacturers for Dslr
Company Advantages
· HONYU optical microscope manufacturers is designed to gain long-lasting popularity.
· Our strict quality management system maintains the excellent performance and quality of our products.
· Ningbo Haishu HONYU Opto-Electro Co., Ltd ensures that its products absolutely meet the quality standards.
Features
• Adopting infinity optical system
• Equipped with infinity achromatic objectives
• Four wide-field magnification power: 40X, 100X, 400X, 1000X
• Coaxial coarse and fine focus system
Specification
|
Head |
Binocular, Interpupillary distance 52-75mm, 30°inclined, 360° rotatable, ±5 Diopter Adjustment |
|
Eyepiece |
WF10x/18mm, High Eye-point Up To 21mm |
|
Objective |
Infinity Achromatic Objective 4X |
|
Infinity Achromatic Objective10X |
|
|
Infinity Achromatic Objective40X(S) |
|
|
Infinity Achromatic Objective100X(S)/(Oil) |
|
|
Condensor |
Abbe N.A.1.25 With Iris Diaphragm And With Socket For Phase Contrast / Dark Field Slider, Centering Adjustable, Color-Coded Diaphragm Scale Marking Corresponded With The Objectives Of Different Powe |
|
Stage |
Double Layer Mechanical, 142mmX135mm, Range: 76x52mm Low Position, Right Hand Control, X-Y Coaxial Control Knob, Two Slides Holder |
|
Focusing system |
Low Positioned, Coaxial Coarse & Fine Focusing System With Tension Adjustment And Up-Limited, Coarse Knob Coarse 14mm/Rot, Fine 0.1mm/Rot, Minimum Reading 1μm On Left-Side Fine Knob, Moving Range 20mm |
|
Nosepiece |
Quadruple, Revolving Nosepiece |
|
Light |
Kohler Illuminator(No Field Diaphragm) |
|
Electrics for 6V20W Halogen |
|
|
Filter |
Blue Filter (φ32, No Blue Filter for LED) |
|
Bulbs |
6V20W Osram Halogen Bulb |
|
250V/3.15A Φ5X20 Fuse |
Optional Accessories
|
Head |
Binocular, Interpupillary distance 48-75mm, 30°inclined, 360° rotatable, ±5 Diopter Adjustment |
|
Eyepiece |
WF10X20mm Eyepieces |
|
WF16X13mm Eyepieces |
|
|
WF10X18mm Eyepiece (Point) |
|
|
WF10X20mm Eyepiece (Point) |
|
|
WF10X20mm Reticule Eyepiece |
|
|
WF10X18mm Reticule Eyepiece |
|
|
Objective |
Infinity Plan Achromatic Objective 4X |
|
Infinity Plan Achromatic Objective 10X |
|
|
Infinity Plan Achromatic Objective 20X(S) |
|
|
Infinity Plan Achromatic Objective 40X(S) |
|
|
Infinity Plan Achromatic Objective 60X(S) |
|
|
Infinity Plan Achromatic Objective 100X(S)/(Oil) |
|
|
Stage |
Double Layer Mechanical, Size:156mmX138mm, Range: 76x54mm Low Position, Right Hand Control, X-Y Coaxial Control Knob, Two Slides Holder |
|
Nosepiece |
Quintuple, Revolving Nosepiece |
|
Light |
Electrics for 3W LED(with Rechargeable Battery) |
|
Electrics for 3W LED |
|
|
LED Rechargeable Battery |
|
|
Reflected Mirror |
|
|
Filter |
Green Filter (φ32) |
|
Yellow Filter (φ32) |
|
|
Ground Grass (φ32) |
|
|
Polarizing Kits |
Polarizer |
|
Analyzer |
|
|
Bulbs |
3W LED Bulb |
products display
Company Features
· With increased needs for our optical microscope manufacturers, Ningbo Haishu HONYU Opto-Electro Co., Ltd is expanding our factory scale.
· Ningbo Haishu HONYU Opto-Electro Co., Ltd takes the leading role in technology of optical microscope manufacturers industry. Ningbo Haishu HONYU Opto-Electro Co., Ltd is well-known for high efficiency of its optical microscope manufacturers production equipment. All production equipment in Ningbo Haishu HONYU Opto-Electro Co., Ltd is advanced in optical microscope manufacturers industry.
· We strive for sustainable growth, offering responsible products at an affordable price. Using our expertise, we support more sustainable consumption patterns by reducing the environmental impact of our products.
Product Details
Our optical microscope manufacturers is exquisite in workmanship, and we are not afraid to enlarge the details of our products.
Application of the Product
Our optical microscope manufacturers is widely used in multiple industries and fields.
HONYU always adheres to the service concept to meet customers' needs. We are committed to providing customers with one-stop solutions that are timely, efficient and economical.
Enterprise Advantages
HONYU is equipped with a group of high-quality and high-level talents. They contribute to rapid development.
With a comprehensive after-sales service system, HONYU is committed to providing timely, efficient and thoughtful consulting and services for customers.
Our company sticks to the road of modern civilization development. We regard 'honesty, responsibility, environmental protection, development' as our enterprise spirit and we adhere to our development strategy of 'excellence for progress, innovation for development'. Based on that, we strive to enhance our enterprise competitiveness and develop modern industry.
HONYU was established in Our company receives unanimous praise from customers depending on years' industry experience, professional production technology, and perfect service system.
HONYU's products are mainly sold to domestic major cities and are exported to North America, Europe, Southeast Asia, and other foreign markets.
HONYU is a professional optical supplier in China with more than 20 years’ experience in Microscopes.
