Product details of the scanning electron microscope suppliers
Product Overview
The improved production efficiency ensures HONYU scanning electron microscope suppliers is given a more competitive price. The product has the functionality that meets and even exceeds the customer expectation. There is well-established service system for our scanning electron microscope suppliers.
Product Description
Compared with other products in the industry, scanning electron microscope suppliers has more obvious advantages which are reflected in the following aspects.
Features

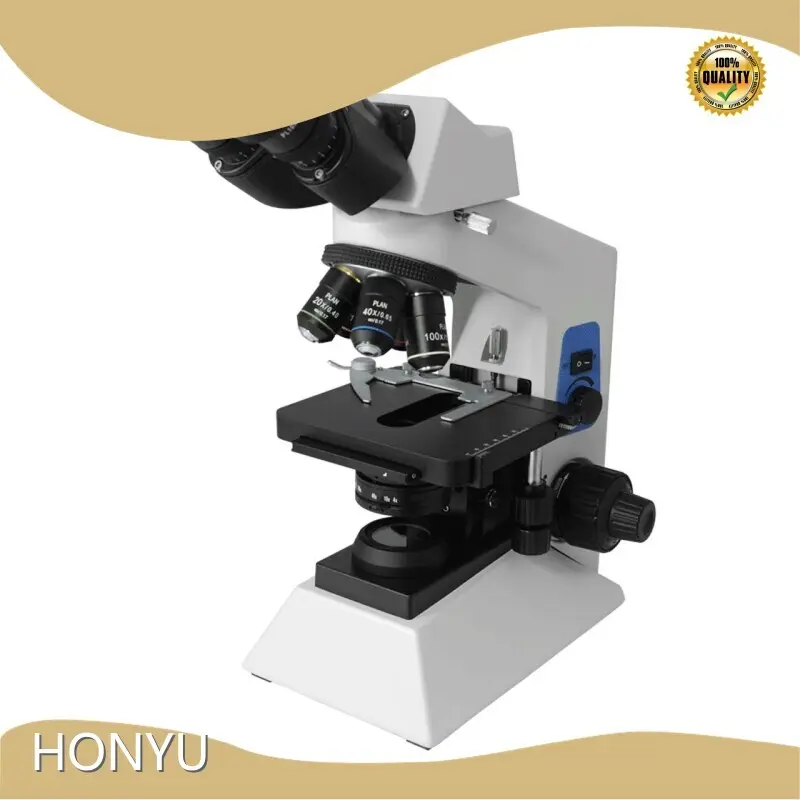

• Four Wide-field magnification settings: 40X, 100X, 400X, 1000X
• High contrast optics offers high resolution observations
• Equipped with N.A. 1.25 Abbe Condenser
• CE Approved and Manufactured Under ISO 9001 Quality Control Standard
Specification
|
Optical system |
Color corrected infinity optical system |
|
Head |
Compensation free binocular head, 30° inclined |
|
Eyepiece |
High Eye-point wide field PL10X/18mm |
|
Objective |
High contrast achromatic objective 4X |
|
High contrast achromatic objective 10X |
|
|
High contrast achromatic objective 40X (spring) |
|
|
High contrast achromatic objective 100X(spring) |
|
|
Nosepiece |
Reversed quadruple nosepiece |
|
Condenser |
Abbe.N.A1.25 Condenser |
|
Illumination |
90V~240V power input, Illumination by 6V 20W halogen bulb, brightness adjustable |
|
Stage |
Mechanical stage with damping clip,150x140mm in size, traveling range: 76x50mm |
|
Focusing |
Low position coaxial coarse and fine focus system with tension adjustment, with up-limited. Coarse focus range: 28mm, division of fine focus: 0.002mm |
|
Filter |
Blue filter Φ 45mm |
Optional Accessories
|
Head |
Seidentopf trinocular, 30° inclined |
|
Seidentopf binocular, 30° inclined(infinity) |
|
|
Seidentopf trinocular, 30° inclined(infinity) |
|
|
Eyepiece |
High-eyepoint WF10X/18mm |
|
High-eyepoint WF10X/18mm with micrometer |
|
|
High-eyepoint WF10X/18mm with cross hair |
|
|
High-eyepoint WF15x/14mm |
|
|
High-eyepoint WF16x/13mm |
|
|
High-eyepoint large field PL10X/20mm |
|
|
Objective |
Plan achromatic objective 4X, 10X, 40X, 100X |
|
Infinity plan achromatic objective 4X, 10X,20X, 40X(spring), 100X(spring) |
|
|
Stage |
140X132mm double layer mechanical stage with damping clip, traveling range:76 x 50mm |
|
Nosepiece |
Reversed quadruple nosepiece |
|
Filter |
Green, Yellow, Neutral |
|
Dark Field Condenser |
Dark Field Condenser(Dry) N.A.0.9 |
|
Dark Field Condenser(Immersion）N.A.1.25 |
|
|
TV Adapter |
0.5X |
|
0.35X |
|
|
Photo Attachment |
135 photo adapter (PK adapter of MD adapter) |
|
3.2X photo eyepiece |
|
|
Digital Photo Attachment |
C-mount |
|
Photo eyepiece |
|
|
Condenser |
Kohler condenser system |
|
Illumination |
High brightness LED light |
