For Sale Custom Microscope by HONYU
Product details of the custom microscope
Product Description
HONYU custom microscope is manufactured using modern management tools and technology. It is designed to have a long lifespan to achieve cost-effectiveness. Ningbo Haishu HONYU Opto-Electro Co., Ltd will regulate its market management in the feature.
Features
• Five Wide-field magnification settings: 50X to 500X
• Long working distance plan achromatic objectives
• Equipped with analyzer and polarizer
Specification
|
Optical system |
Infinity color correct optical system |
|
Viewing head |
45 degree inclined trinocular viewing head, 360 degree rotatable; interpupillary distance 50-75mm, binocular: trinocular=100:0 or 0:100 |
|
Eyepiece |
High eye point wide field plan eyepiece PL10X22mm, with adjustable diopter, reticle attachable |
|
Objective |
Long working distance bright & dark field plan achromatic metallurgical objectives 5X, 10X, 20X, 50X, (5-10-20X IS for DIC ) |
|
Nosepiece |
Inward quintuple bright field nosepiece (DIC slot), with built-in magnification sensor |
|
Frame |
Reflected frame low-position coaxial focusing system, coarse range 9mm (up 6.5mm, down 2.5mm), fine precision 0.002mm with upper limit and tension adjustment; with switch for bright and dark field; with variable field diaphragm and aperture |
|
diaphragm, both center adjustable; with slots for filters and polarizing kit; with light intensity indicator; with infrared induction; with magnification display |
|
|
Illumination |
External power adapter, input 100V-240V, output 15V13.4A, light intensity adjustable |
|
Stage |
Three layers rackless stage, size: 240mm (W) X 250mm (L), moving range: 50X 50mm; low-position handle knob |
|
Filters |
LBD filter |
|
Polarizing Kits |
Polarizer, |
|
360 degree rotatable analyzer, |
Optional Accessories
|
Eeypiece |
High eye point wide field plan eyepiece PL10X22mm, with adjustable diopter, reticle attachable |
|
Objective |
Long working distance plan achromatic metallurgical objectives 5X, 10X, 20X, 50X |
|
Long working distance bright & dark field plan achromatic metallurgical objectives100X |
|
|
Camera adapter |
0.35X, 0.5X, 0.65X, 1X focusing C-mount |
|
DIC Kits |
DIC attachment |
|
Filters |
Blue, Yellow, Green |
|
Polarizing Kits |
fixed analyzer, |

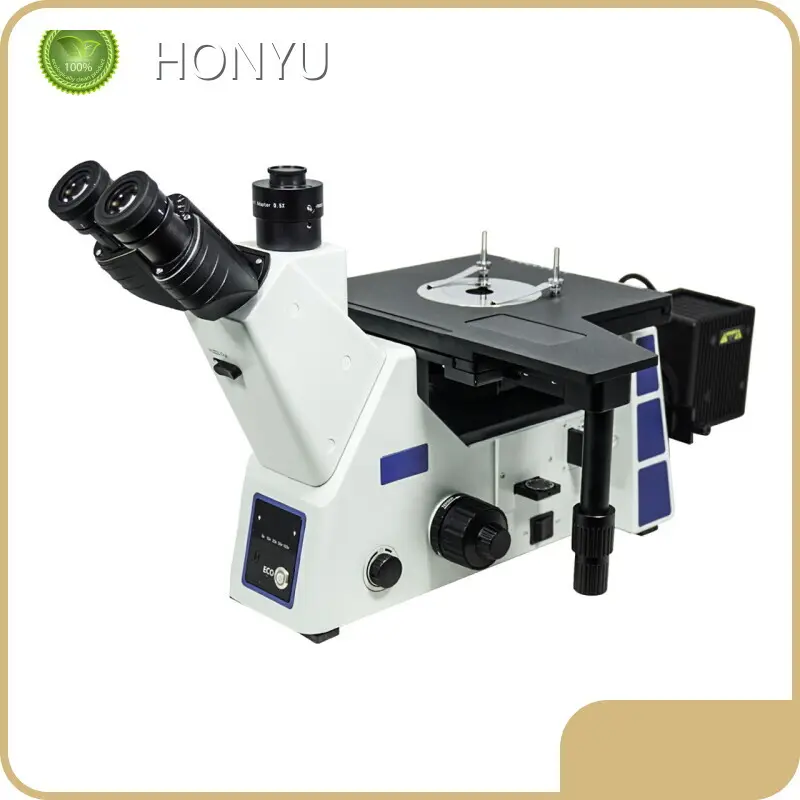

products display
Company Advantage
• HONYU has gone through years of development. So far, our production and processing level ranks top in the industry.
• HONYU focuses on interacting with customers to know well their needs and provides them with efficient pre-sales and after-sales services.
• Our company is located in a beautiful place with outstanding people. And, there is a well-developed transportation network. It is conducive to the purchase and shipment of goods.
Don't know how to analyze market demand? Not sure about how to identify characteristics of products? Don't know how to make your choice among various products? Feel free to contact HONYU, and we will get back to you with an answer as soon as possible!
HONYU is a professional optical supplier in China with more than 20 years’ experience in Microscopes.
