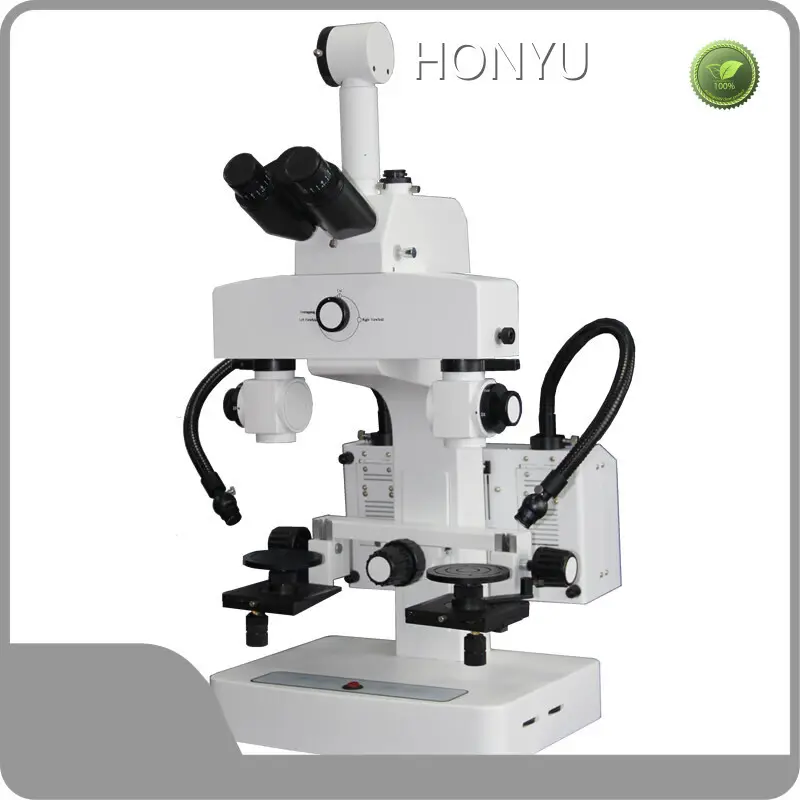

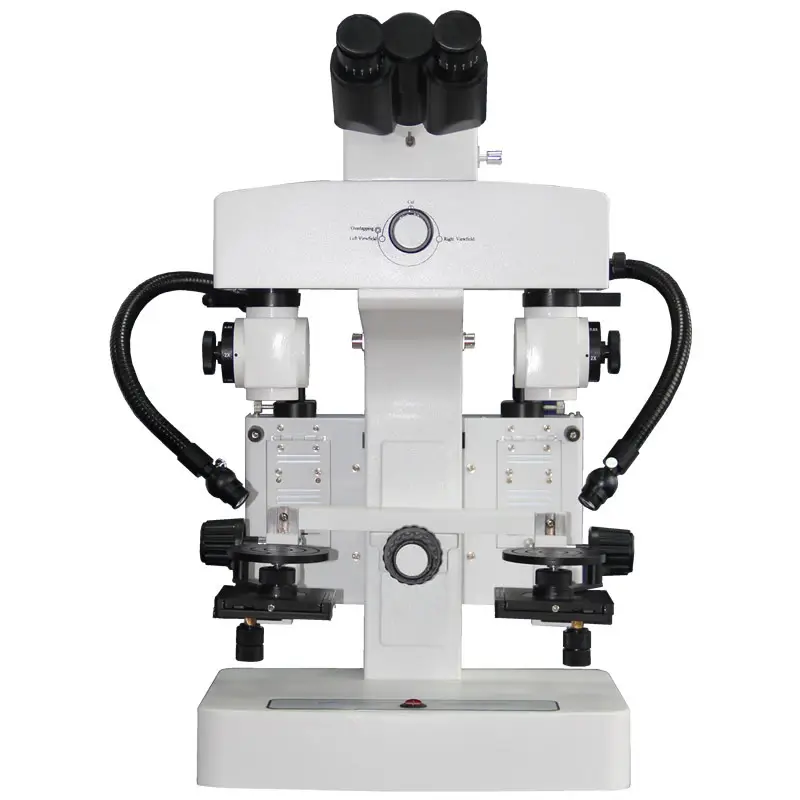

For Dslr Compound Comparison Microscope by HONYU
Product details of the compound comparison microscope
Quick Detail
With its own professional development and design team, Ningbo Haishu HONYU Opto-Electro Co., Ltd has enough capability to produce compound comparison microscope based on the needs of customers. As any defects are completely eliminated in the inspection process, the product is always in the best quality state. Ningbo Haishu HONYU Opto-Electro Co., Ltd has a long standing reputation for its remarkable compound comparison microscope.
Product Information
The compound comparison microscope mainly promoted by HONYU have been further improved in the past through the technical improvement, which is reflected in the following aspects.
Features
• 3.8x-230x magnification
• 5 step zoom objectives
• Separation Line Adjusting
Specification
|
Magnification |
3.8x~230x |
|
|
Head |
Binocular Head, 30° inclined, interpupillary distance 48~75mm, Diopter +/-5 adjustable |
|
|
With VIDEO port and PHOTO port |
||
|
Eyepiece |
WF10x/22mm, High Eyepoint |
|
|
WF20x/12mm, High Eyepoint |
||
|
Objective |
5 Step Zoom Plan Objective 0.8x, 1.25x, 2x, 3.2x, 4.8x |
|
|
Auxiliary Lens 0.4x, 2.0x |
||
|
Working Distance |
101mm |
|
|
View Field |
Diameter 2.3~62mm |
|
|
Magnification Correcting |
Magnification Correction System, with Correcting Lens |
|
|
Separation Line Adjusting |
Separation Line Adjust System in Back, with Special Designed Adjustment Driver |
|
|
Working Stage |
Square Manual Working Stage 90*90mm, Moving Range 54*54*54mm |
|
|
|
Round Titable Working Stage Dia. 90mm, 0-45° Inclined, 360° Rotatable |
|
|
|
Joint Left/Right Moving Range 54mm, Joint Up/Down Range 60mm |
|
|

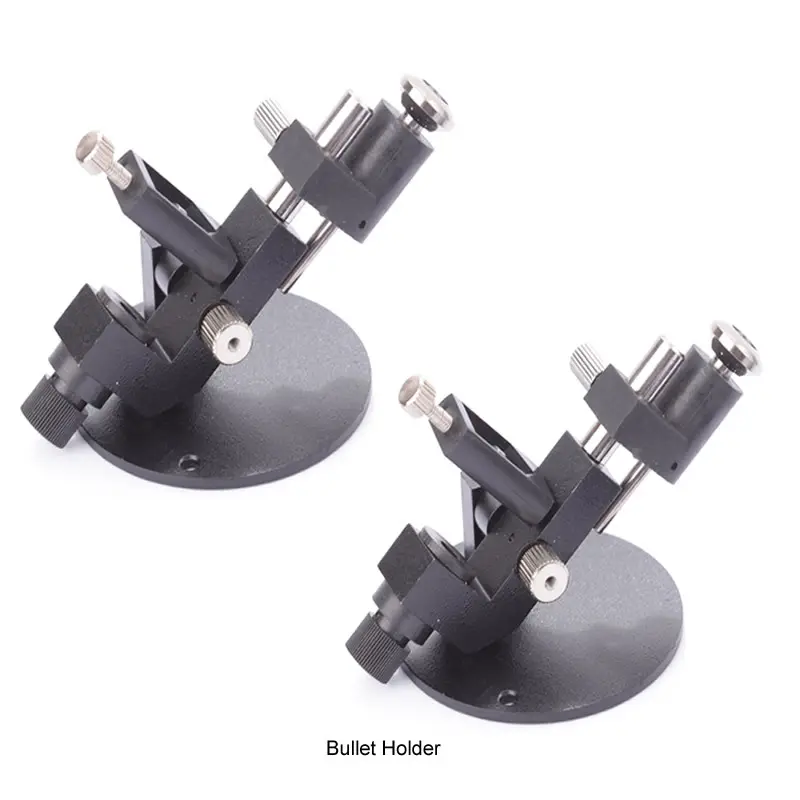

Bullet Holder |
Bullet Holder Set for all kinds of Bullet, Cartridge and other Objects |
|
|
Light Source |
12v 50w fan cooling strong halogen light, brightness adjustable (pair) |
|
|
5w led cold light, high brightness, brightness adjustable (pair) |
||
|

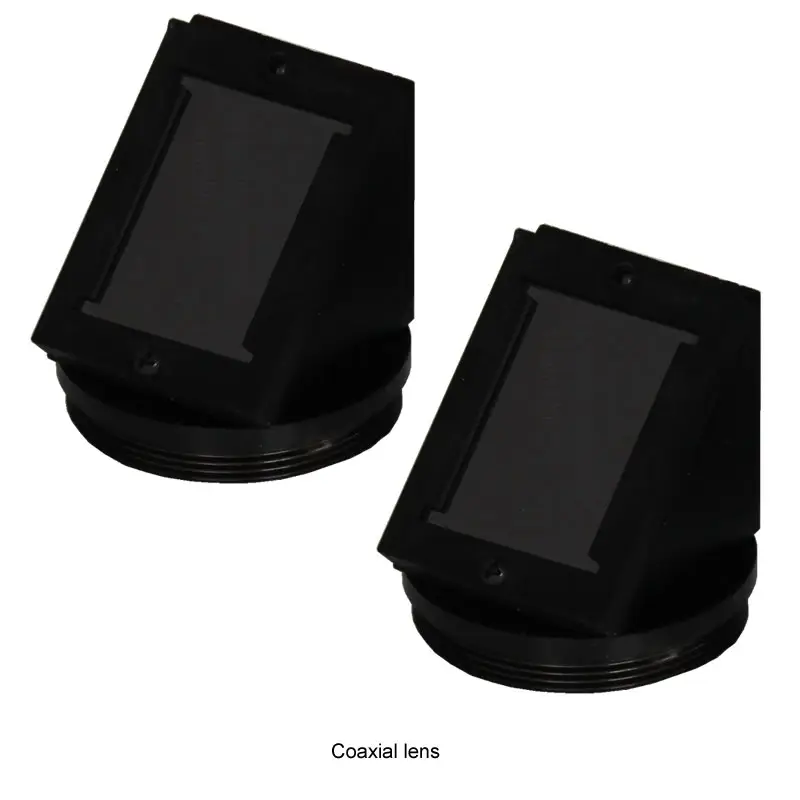

Coaxial Light Lens for observing in deep hole, or smooth object surface (Pair) |
||
|
Polarizing Light Lens, for eliminating flare lights and dazzling lights(Pair) |
||
|
Transmit bottom light |
||
|
Filters: red, green, uv |
||
|
Adapter |
Built-in 0.5x CCD Adapter |
|
|
Front View Photo Adapter for SLR Digital Camera |
||
|
Easy to view and take photos |
||
|
Power |
80~240v wide range voltage |
|
|
Dimension |
Instrument Size 37*30*63cm |
|
|

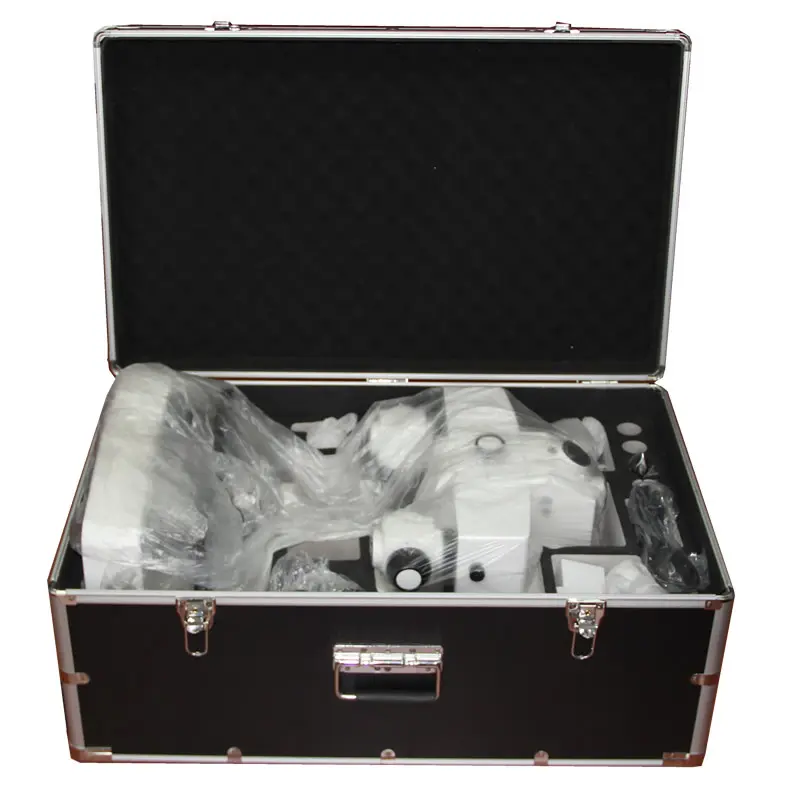

Packing case |
Aluminum Case Packing. Convenient for carrying and storing |
|
|
Optional accessories |
||
|
Light source |
150w cold light source, with optical fiber & light collector |
|
|
7" pad digital camera |
7 inch lcd pad digital camera, android system, |
|
|
9.7" pad digital camera |
9.7 inch lcd pad digital camera, android system, |
|
