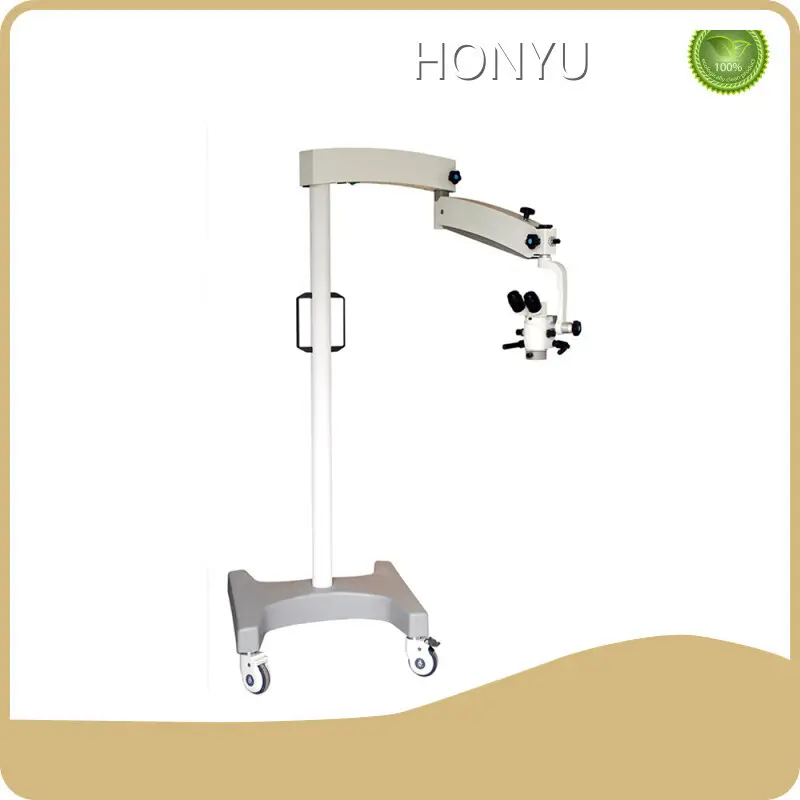

Eye Surgery Microscope on Sale
Features
• 6-steps manual magnification adjustment: 0.3x, 0.5x, 0.8x, 1.2x, 2.0x, 3.0x
• LED light source providing higher brightness
• Wide range of objective focus distance: 230-260 mm
• Binocular 0-180 degree inclined (Optional)
Specification
|
Head |
|
|
Binoculars |
45 ° inclined, f’=160 mm---For OPR.46.L100DP Dental Surgery scope |
|
Straight, f’=160 mm---For OPR.46.L100EP ENT surgery microscope |
|
|
Objective |
f’=230-260 mm |
|
Eyepiece |
12.5x, high-eyepoint, wide angular |
|
Diopter adjustment |
-5D to + 5D |
|
Magnification changer |
6 steps: 0.3x, 0.5x, 0.8x, 1.2x, 2.0x, 3.0x |
|
Total magnifications |
2.4x, 4.0x, 6.0x, 9.6x, 16x, 24x |
|
Visual field |
78 mm-8.5mm |
|
Interpupillary distance |
55mm to 75 mm |
|
Working distance |
230-260 mm |
|
Illumination |
|
|
Type |
Coaxial illumination by optical light-guide system |
|
Cold light source |
LED lamp, 3V/10W |
|
Illumination control |
3steps |
|
Field of illumination |
65mm |
|
Power supply |
AC 90-240V |
|
Light intensity |
25,000 LUX |
|
Filter |
Yellow, green, blue |
|
Arm, Stand |
|
|
Type |
Pantographic arm, floor stand |
|
Range |
1250mm |
|
Rotation angle |
270 degree |
|
Elevation stroke |
400 mm |
|
Base size |
600 mm x 600 mm |
|
Weight |
90 kg |
Optional Accessories
|
Binoculars |
0-180 degree inclined binoculars f’=170mm |
|
Beam splitter |
Dismountable |
|
CCD Adapter |
With iris diaphragm, f’=65 mm |
