Item |
Specification |
600B |
600T |
|
Optical System |
Infinite Optical System |
● |
● |
|
Eyepiece |
Extra Wide Field Eyepiece EW10×/22mm |
● |
● |
|
Wide Field Eyepiece WF15×/16 |
○ |
○ |
|
|
Wide Field Eyepiece WF20×/12 |
○ |
○ |
|
|
Viewing Head |
Seidentopf Binocular Viewing Head, Inclined at 30°, 360° Rotatable, Interpupillary 47-78mm, Anti-Fungus, Tube Diameter 30mm |
● |
|
|
Seidentopf Trinocular Viewing Head, Inclined at 30°, 360° Rotatable, Interpupillary 47-78mm, Splitting ratio 5:5, Anti-Fungus, Tube Diameter 30mm |
|
● |
|
|
Seidentopf Binocular Viewing Headwith Built-in 5.0MP Digital Camera, HDMI and Wifi output interface, Inclined at 30°, 360° Rotatable, Interpupillary 47-78mm, Anti-Fungus, Tube Diameter 30mm |
○ |
○ |
|
|
Objective |
NIS45 Infinite Plan Achromatic Objective 4× (N.A.:0.10, W.D.:20.6mm) |
● |
● |
|
NIS45 Infinite Plan Achromatic Objective 10× (N.A.:0.25, W.D.:18.0mm), |
● |
● |
|
|
NIS45 Infinite Plan Achromatic Objective 40× (N.A.:0.65, W.D.:1.5mm), |
● |
● |
|
|
NIS45 Infinite Plan Achromatic Objective 100× (Oil, N.A.:1.25, W.D.:0.3mm) |
● |
● |
|
|
NIS45 Infinite Plan Achromatic Objective 20× (N.A.:0.40, W.D.:6.4mm) |
○ |
○ |
|
|
NIS45 Infinite Plan Achromatic Objective 60× (N.A.:0.80, W.D.:0.3mm) |
○ |
○ |
|
|
NIS45 Infinite Plan Phase Contrast Achromatic Objective 10×, 20×, 40×, 100× |
○ |
○ |
|
|
Nosepiece |
Backward Quintuple Nosepiece |
● |
● |
|
Stage |
Rackless stage, Size 230×150mm, Moving Range 78×54mm |
● |
● |
|
Condenser |
Inserted Abbe Condenser NA1.25(Including Empty Plate) |
● |
● |
|
Bright Field-Phase Contrast Plate (4x-100x Universal) |
○ |
○ |
|
|
Bright Field-Dark Field Plate |
○ |
○ |
|
|
Focusing |
Coaxial coarse and fine adjustment, Coarse stroke 37.7mm per rotation, Fine stroke 0.2mm per rotation, Fine division 0.002mm, Moving range 30mm |
● |
● |
|
Illumination |
1W LED illumination, Brightness Adjustable |
● |
● |
|
Fluorescent Attachment |
3W LED, Two Filter Cubes (B, B1, G, U, V, R, Auramine O can be combined), Fly-eye Lens Illumination |
○ |
○ |
|
Other Accessories |
1× C-mount adapter |
○ |
○ |
|
0.5× C-mount adapter |
○ |
○ |
|
|
Simple Polarization Set |
○ |
○ |
|
|
Digital Camera |
○ |
○ |
|
|
Filter |
Green |
● |
● |
|
Blue, Yellow, Red |
○ |
○ |
|
|
Package |
1pc/carton, Carton size: 48cm*33cm*60cm, Net/Gross Weight: 10.5kg/12.5kg |
● |
● |
|
Note: ●Standard Outfit, ○ Optional |
|||
Features
• Adopting color corrected infinity optical system
• Equipped with five infinity plan achromatic objectives
• Five wide-field magnification power: 40X to 1000X
• Coaxial coarse and fine focus system

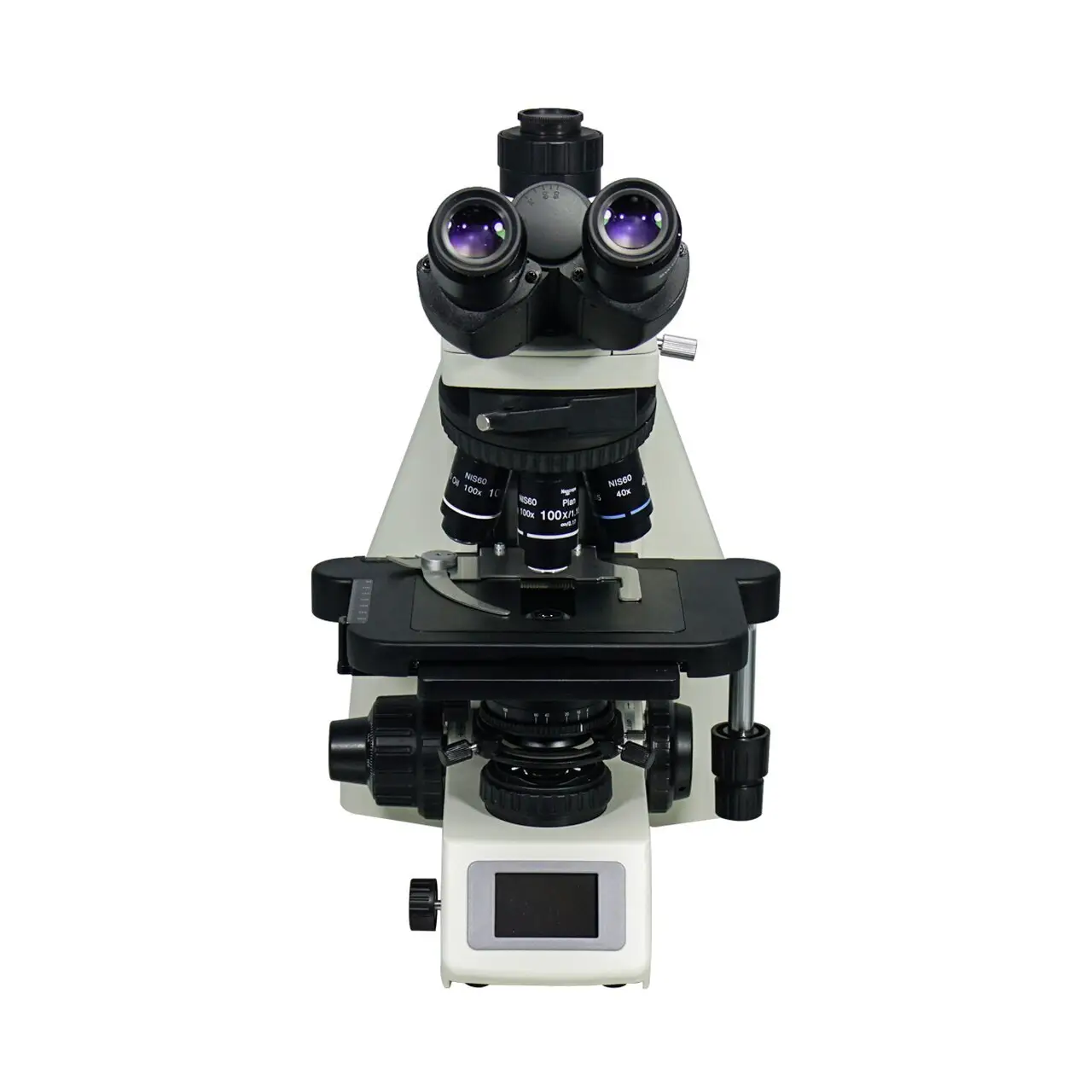

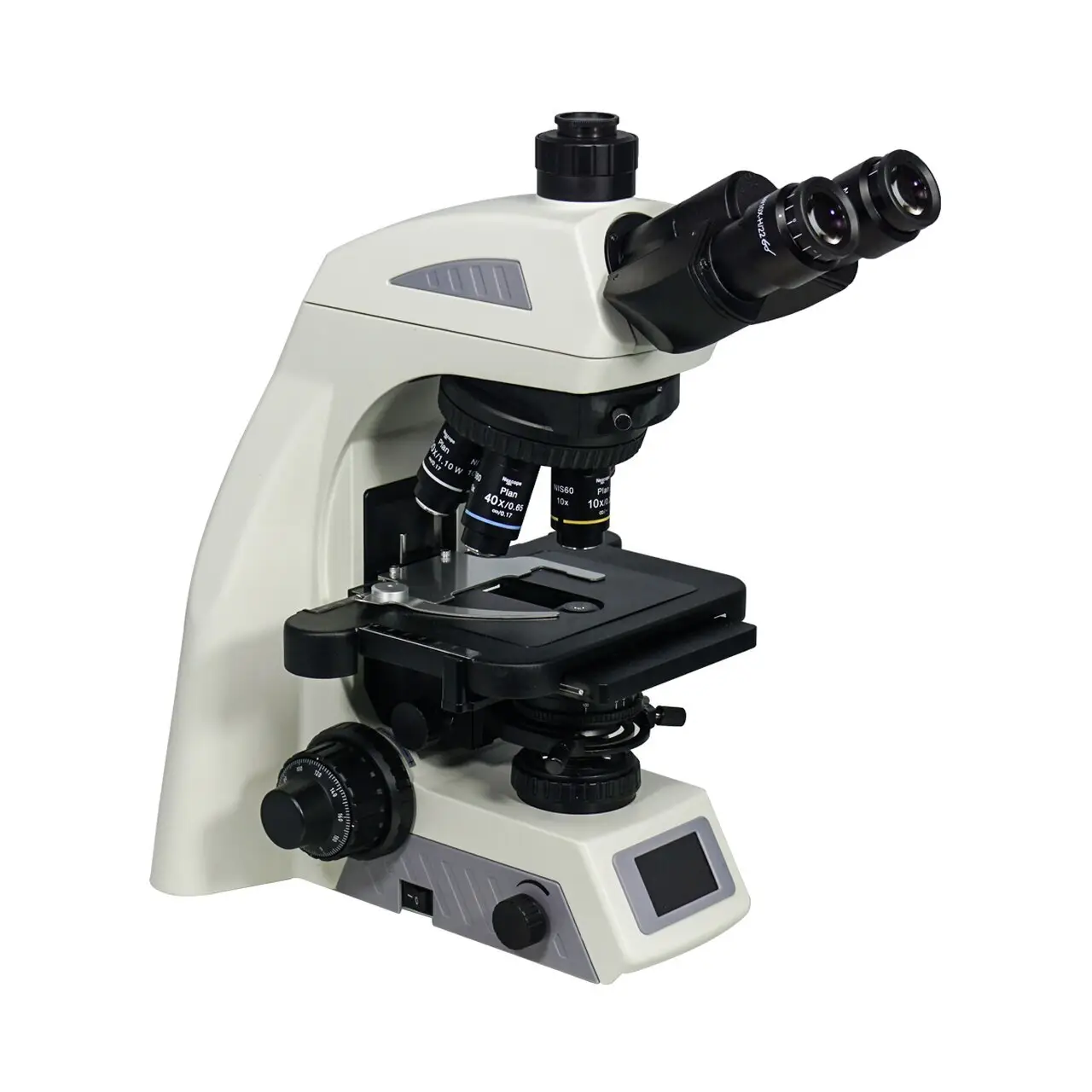

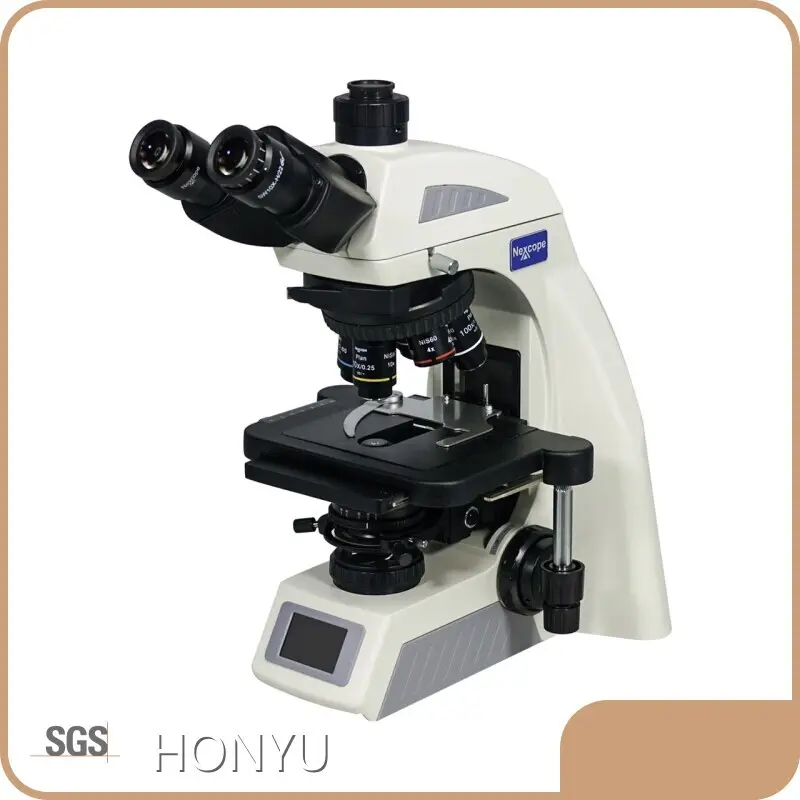

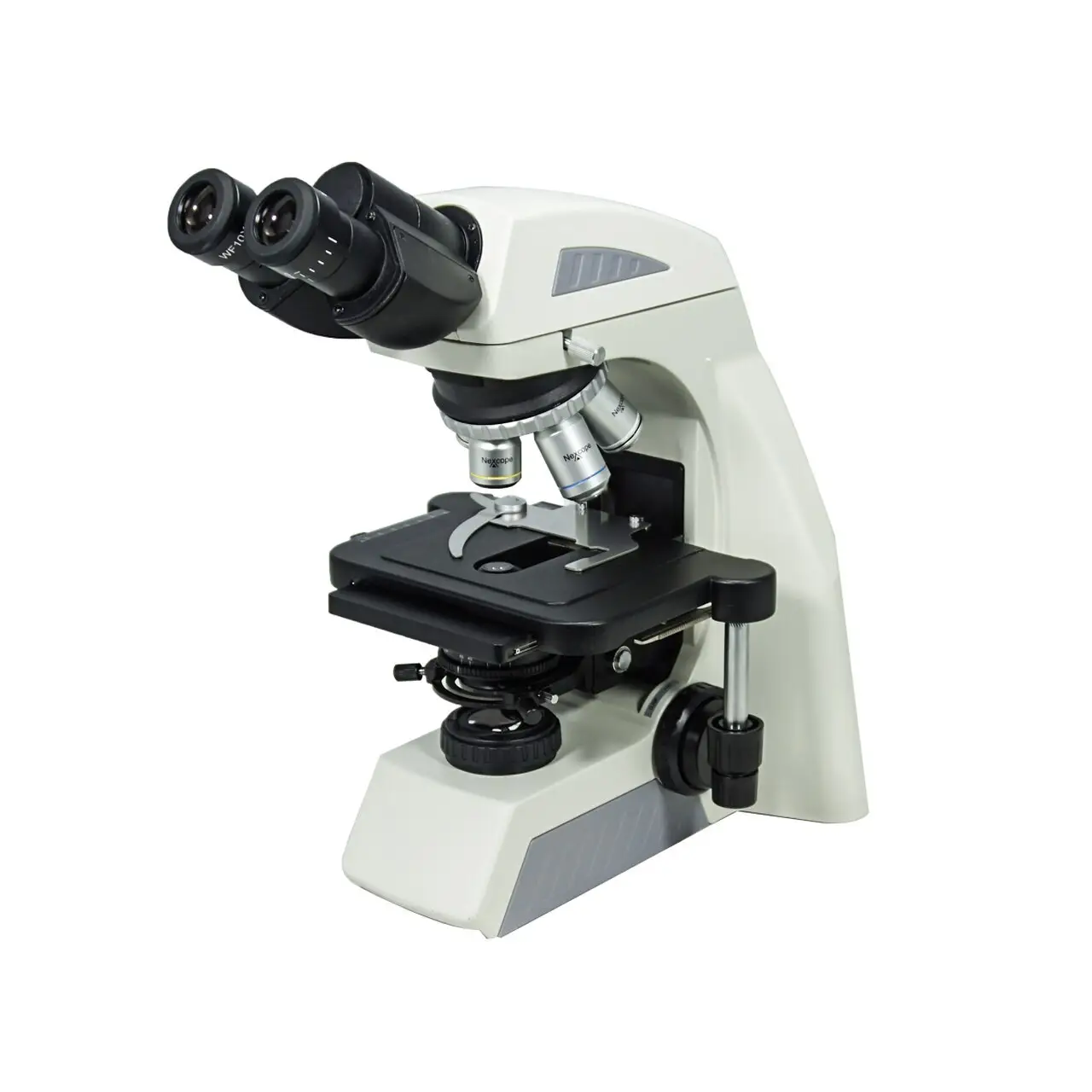

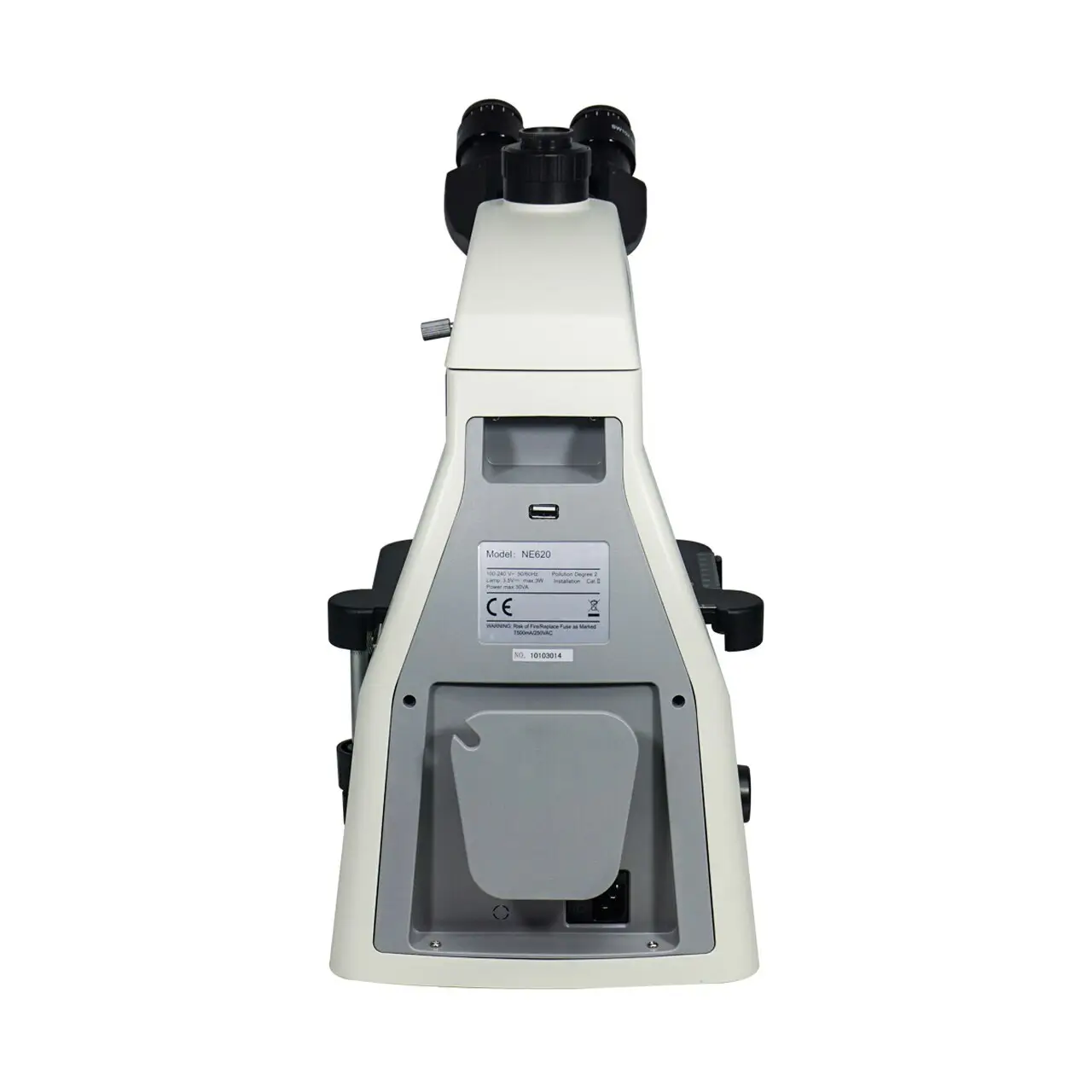

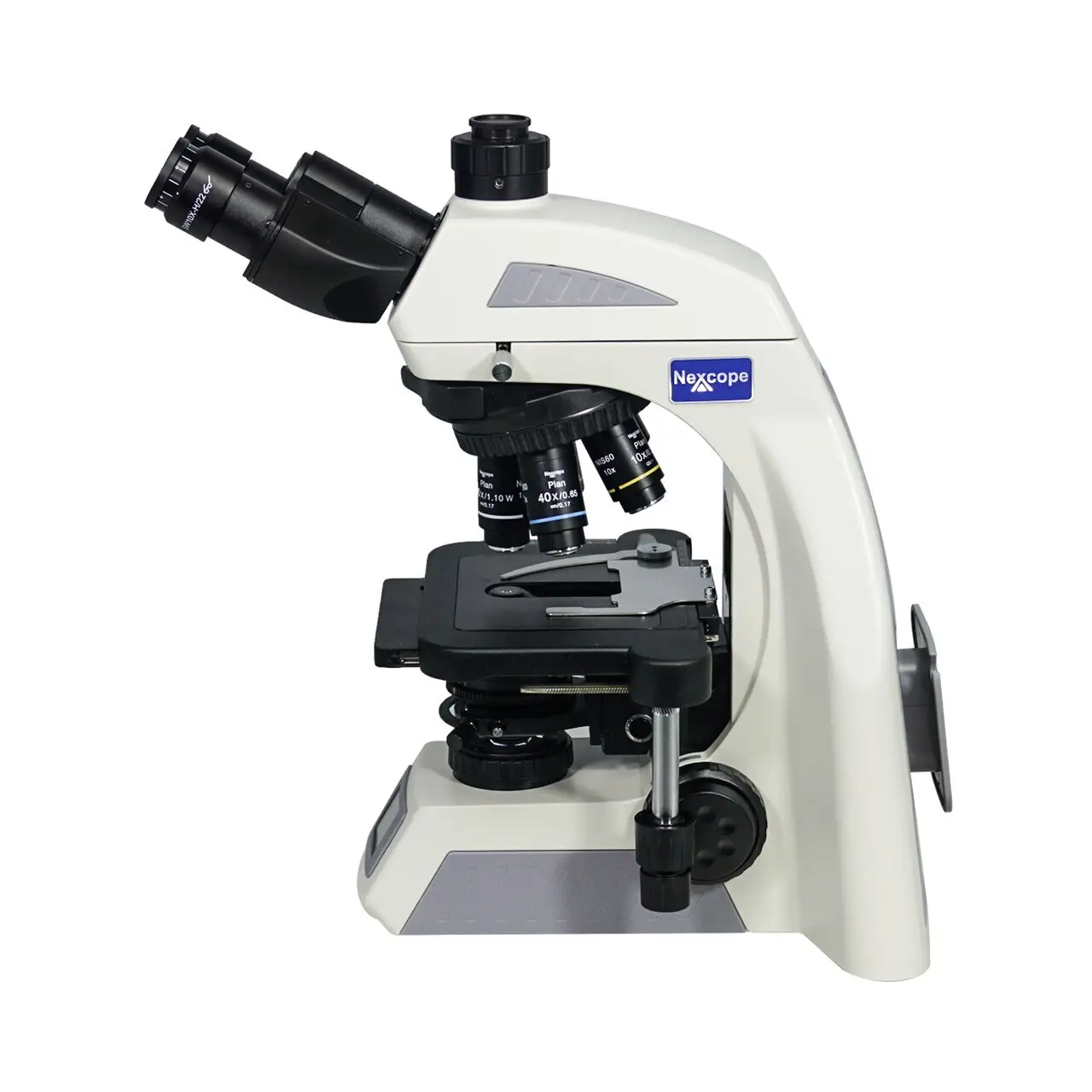

products display
Company Advantages
· HONYU electron microscope brands offers various design styles to global customers.
· We specialize in researching and developing new technologies to bring the quality and performance of our products to the forefront of the industry.
· Ningbo Haishu HONYU Opto-Electro Co., Ltd always wholeheartedly serves its customers.
Company Features
· After successfully introducing high technology, HONYU has been more confident to produce high quality electron microscope brands.
· We have a professional design team. They put a lot of effort into planning, purchasing the right materials, sampling, and making drawings that fit our customer's needs.
· Our first-class service will provide you with best purchasing experience for electron microscope brands. Get an offer!
Application of the Product
HONYU's electron microscope brands can be used in different fields.
HONYU has been engaged in the production of Biological Microscope,Stereo Microscope,Metallurgical Microscope,Operation Microscope,Comparison Microscope,Handheld Digital Microscope,Microscope Accessories for many years and has accumulated rich industry experience. We have the ability to provide comprehensive and quality solutions according to actual situations and needs of different customers.
HONYU is a professional optical supplier in China with more than 20 years’ experience in Microscopes.
