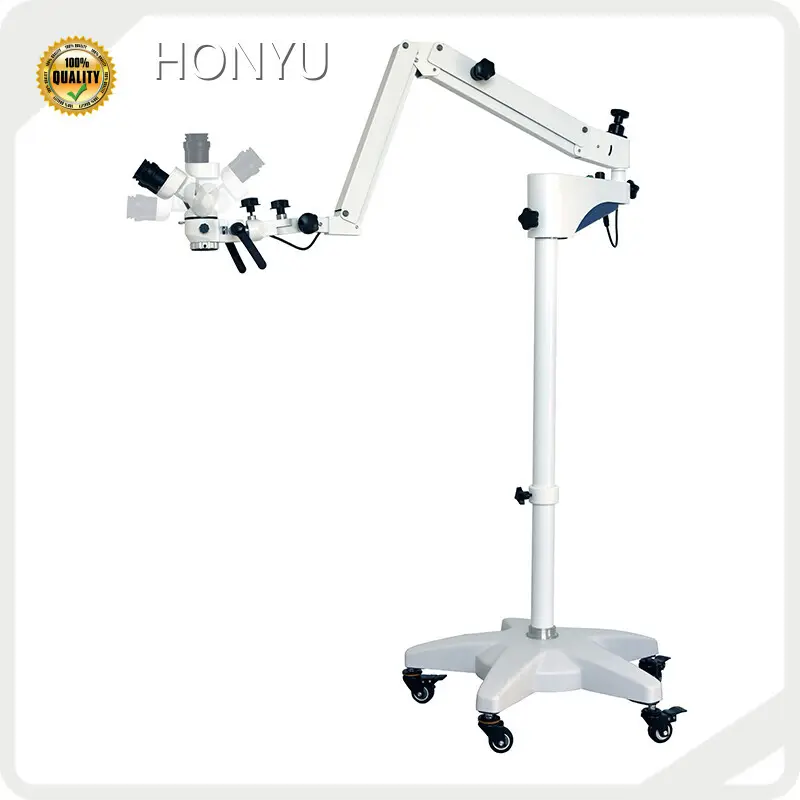

Dental Operating Microscope Made in China for Sale
Product details of the dental operating microscope
Product Introduction
The unique design makes HONYU dental operating microscope stand out among similar products. The features of higher quality, stable performance, and longer service life makes the product more competitive in the market. The quality test is an necessary step of dental operating microscope manufacture before its loading.
Features
• 3-step magnification adjustment: 0.6x, 1.0x, 1.6x
• Two objectives with different focusing distance
• High brightness 10W LED illumination
• Total Magnification: 3x-16x (with Optional objective)
Specification
|
Magnification of binocular |
8X |
|
Binocular |
0-180° inclinable |
|
Magnification of eyepiece |
12.5X |
|
Interpupillary distance |
50mm-80mm |
|
Diopter adjustable |
±7D |
|
Focal length of objective |
F=200mm and F=250mm two objectives |
|
Magnification changer |
3-step, 0.6X, 1X, 1.6X |
|
Total magnification |
4.8X, 8X, 12.8X, 6X, 10X, 16X |
|
Linear field |
50mm, 30mm, 19mm, 40mm, 24mm, 15mm |
|
Fine focusing distance |
10mm |
|
Illumination |
Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination>40000lx |
|
Filter |
Build-in green and yellow filters |
|
Balancing arm |
2-part arm with universal joints, counterweight adjustable and can be locked |
|
Floor stand |
2-part column fitted on the five-star base with casters |
|
Power supply |
AC100V-AC240V |
Optical Parameter
|
Magnification of eyepiece |
12.5X/20mm |
|||||||||||
|
Focal length of objective |
F=200mm |
F=250mm |
F=300mm(optional) |
F=400mm(optional) |
||||||||
|
Magnification on handwheel |
1.6X |
1X |
0.6X |
1.6X |
1X |
0.6X |
1.6X |
1X |
0.6X |
1.6X |
1X |
0.6X |
|
Total magnification |
16X |
10X |
6X |
12.8X |
8X |
4.8X |
10.7X |
6.7X |
4X |
8X |
5X |
3X |
|
Linear field (mm) |
15 |
24 |
40 |
19 |
30 |
50 |
23 |
37 |
60 |
30 |
48 |
80 |
|
Diameter of spot (mm) |
57 |
71 |
86 |
113 |
||||||||
|
Exit pupil distance (mm) |
20 |
|||||||||||
Optional accessories
|
Objectives |
F=200mm, F=300mm, F=200-300mm zooming objective |
|
Other accessory |
Beamsplitter, CCD adapter, DLSR camera adapter, wall-mount, table clamp |
