Comprehensive Microscope Solution Supplier for Biological and Industrial Inspection.

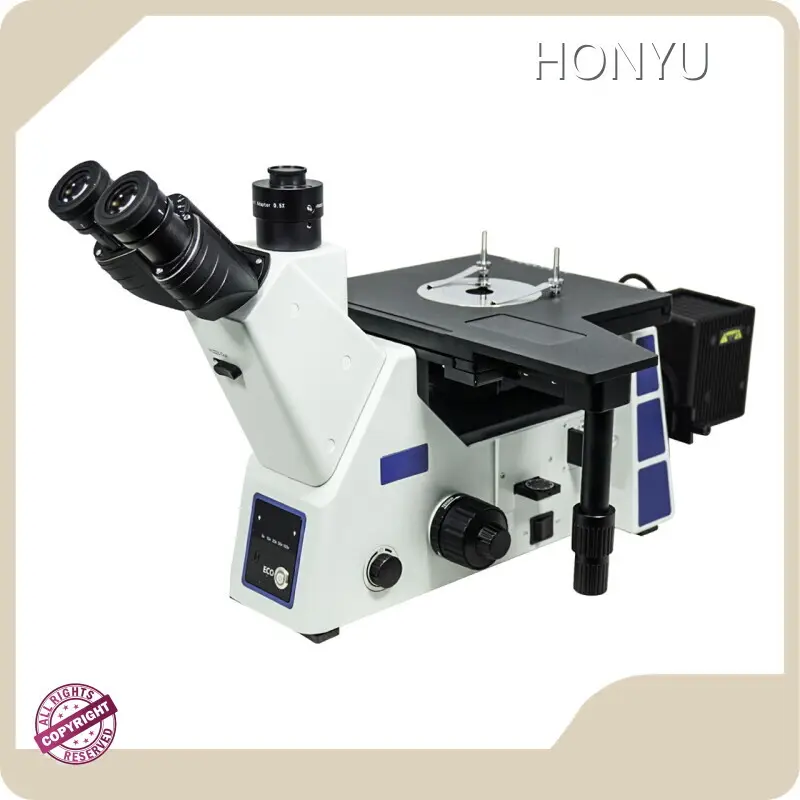

Customized Microscope Manufacturer ODM for Dslr
Features
• Five Wide-field magnification settings: 50X to 500X
• Long working distance plan achromatic objectives
• Equipped with analyzer and polarizer
Specification
|
Optical system |
Infinity color correct optical system |
|
Viewing head |
45 degree inclined trinocular viewing head, 360 degree rotatable; interpupillary distance 50-75mm, binocular: trinocular=100:0 or 0:100 |
|
Eyepiece |
High eye point wide field plan eyepiece PL10X22mm, with adjustable diopter, reticle attachable |
|
Objective |
Long working distance bright & dark field plan achromatic metallurgical objectives 5X, 10X, 20X, 50X, (5-10-20X IS for DIC ) |
|
Nosepiece |
Inward quintuple bright field nosepiece (DIC slot), with built-in magnification sensor |
|
Frame |
Reflected frame low-position coaxial focusing system, coarse range 9mm (up 6.5mm, down 2.5mm), fine precision 0.002mm with upper limit and tension adjustment; with switch for bright and dark field; with variable field diaphragm and aperture |
|
diaphragm, both center adjustable; with slots for filters and polarizing kit; with light intensity indicator; with infrared induction; with magnification display |
|
|
Illumination |
External power adapter, input 100V-240V, output 15V13.4A, light intensity adjustable |
|
Stage |
Three layers rackless stage, size: 240mm (W) X 250mm (L), moving range: 50X 50mm; low-position handle knob |
|
Filters |
LBD filter |
|
Polarizing Kits |
Polarizer, |
|
360 degree rotatable analyzer, |
Optional Accessories
|
Eeypiece |
High eye point wide field plan eyepiece PL10X22mm, with adjustable diopter, reticle attachable |
|
Objective |
Long working distance plan achromatic metallurgical objectives 5X, 10X, 20X, 50X |
|
Long working distance bright & dark field plan achromatic metallurgical objectives100X |
|
|
Camera adapter |
0.35X, 0.5X, 0.65X, 1X focusing C-mount |
|
DIC Kits |
DIC attachment |
|
Filters |
Blue, Yellow, Green |
|
Polarizing Kits |
fixed analyzer, |
products display
Company Advantages
· Apart from our professional team, a perfect HONYU microscope manufacturer also can't be finished without high-quality materials.
· In order to meet customer expectations and industry standards, products must undergo rigorous quality inspection before leaving the factory.
· Ningbo Haishu HONYU Opto-Electro Co., Ltd's well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction.
Company Features
· Ningbo Haishu HONYU Opto-Electro Co., Ltd is well-known for its large capacity and stable quality for microscope manufacturer.
· Our company has excellent manufacturing facilities. Using state-of-the-art manufacturing methods, as well as a comprehensive system of quality management, our company has built a solid foundation for sophisticated, high-quality machinery and systems, both technologically and financially.
· Ningbo Haishu HONYU Opto-Electro Co., Ltd stresses the importance to develop new microscope manufacturer and potential competitive market.
Application of the Product
The microscope manufacturer produced by our company is widely recognized by customers and widely used in field.
HONYU insists on providing customers with comprehensive solutions based on their actual needs, so as to help them achieve long-term success.
HONYU is a professional optical supplier in China with more than 20 years’ experience in Microscopes.
